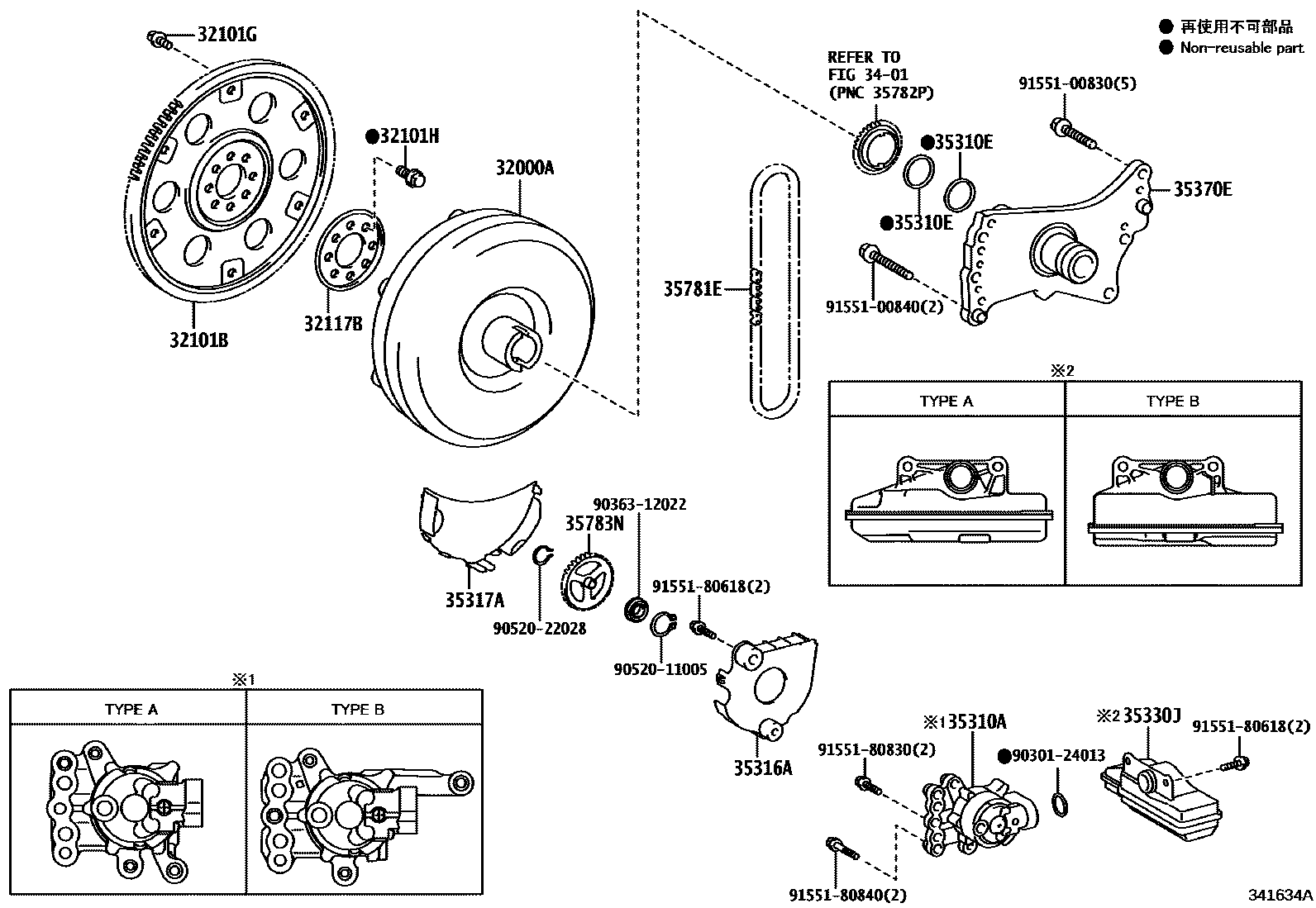

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12460iMZAA10202207

AISIN AW:REFER 34-01

main32000-12520iMZAA10202207

TOYOTA:REFER 34-01

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12120iMZAA10202207

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMZAA10202207

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMZAA10202207

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMZAA10202207

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMZAA10202207

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMZAA10202207

TYPE A:REFER ILLUST.

main35310-28050iMZAA10202207

TYPE B:REFER ILLUST.

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060iMZAA10202207

TOYOTA:REFER 34-01

main35617-12070iMZAA10202207

AISIN AW:REFER 34-01

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMZAA10202207

TOYOTA:REFER 34-01

main35316-12020iMZAA10202207

AISIN AW:REFER 34-01

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMZAA10202207

TOYOTA:REFER 34-01

main35317-12020iMZAA10202207

AISIN AW:REFER 34-01

35330JSTRAINER ASSY, OIL

main35330-12090iMZAA10202207

TYPE A:REFER ILLUST.

main35330-28040iMZAA10202207

TYPE B:REFER ILLUST.

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMZAA10202207

TOYOTA:REFER 34-01

main35370-12130iMZAA10202207

AISIN AW:REFER 34-01

35781ECHAIN, TRANSMISSION DRIVE

main35781-33010iMZAA10202207-202209

AISIN AW:REFER 34-01

sub35781-42010

main35781-42010iMZAA10202207

TOYOTA:REFER 34-01

main35781-42010iMZAA10202209

AISIN AW:REFER 34-01

35783NSPROCKET, DRIVEN

main35783-12060iMZAA10202207

AISIN AW:REFER 34-01,TOYOTA:REFER 34-01

9030124013

main90301-24013

9036312022

main90363-12022

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

9155180830

main91551-80830

9155180840

main91551-80840

23 parts on this diagram · 1 diagram in section
