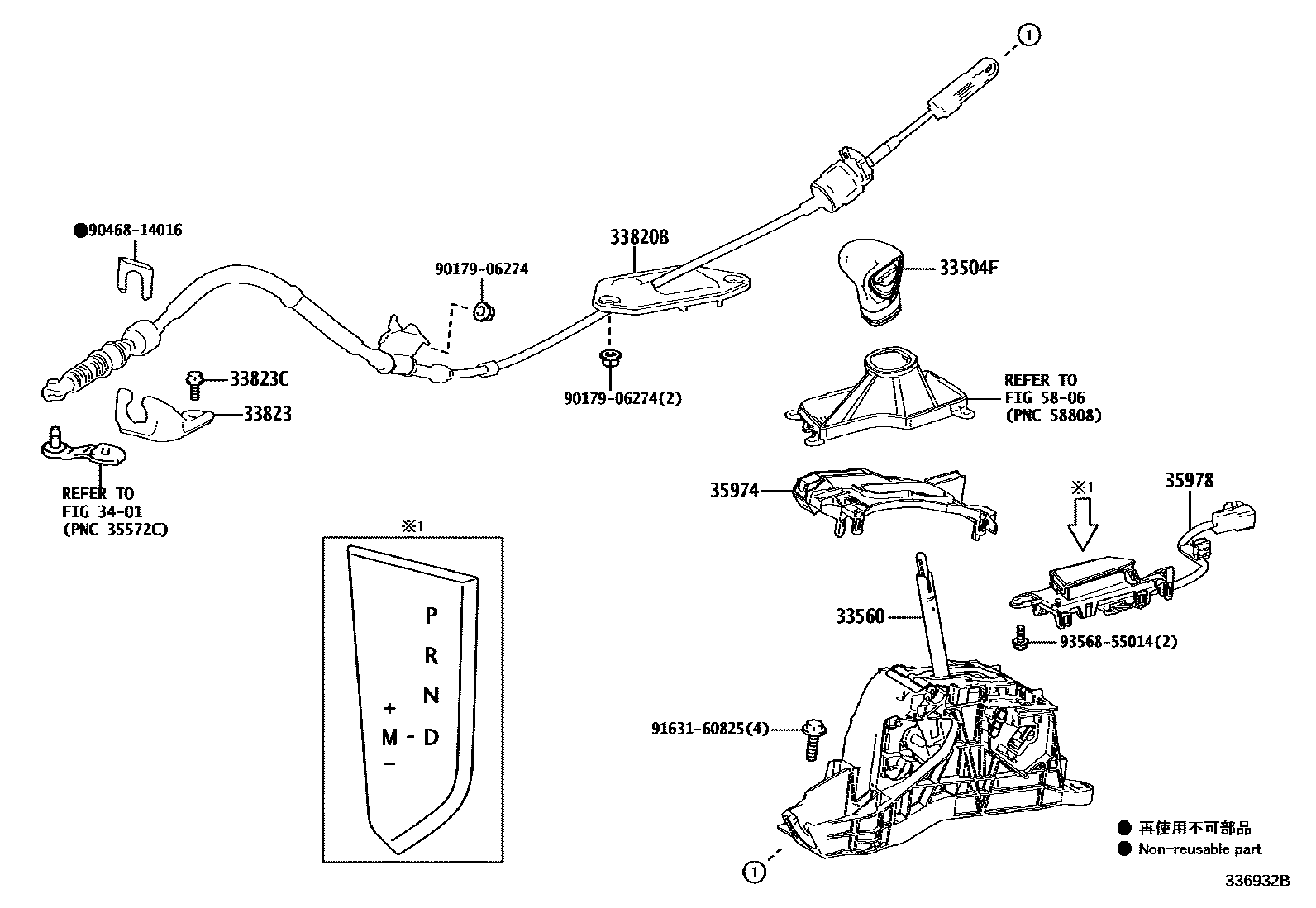

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33200-C0iMZAA10,MZAH10,15..LHD202207

BLACK,TRIM0#,1#,2#,4#,8#

main33504-33220-C0iMZAA10,MZAH10,15..RHD202207

BLACK,TRIM0#,1#,2#,4#,8#

main33504-76090-C3iKMA10..ARL,GEN202303-202512

BLACK/BLACK,TRIM0#,1#,2#,4#

main33504-76100-C0iKMA10..EUR202401-202512

BLACK,TRIM1#,2#,4#

main33504-78030-C0iMZAH11,16..ARL,GCC,GEN202401

BLACK,TRIM0#,1#,2#,4#,8#

main33504-78030-C0iMZAH11,16..EUR202401

BLACK,TRIM0#,1#,2#,4#

main33504-78030-C0iMZAH11..CHI202401-202501

BLACK,TRIM1#,2#,4#,8#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-76030iMZAA10,MZAH10,15..LHD..(EUR,GCC,GEN)202207

main33560-76040iMZAA10,MZAH10,15..RHD202207

main33560-76050iMZAH10..CHI202207

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-76011iMZAA10..LHD202207

main33820-76021iMZAA10..RHD202207

main33820-76031iMZAH10,15..LHD202207

main33820-76042iMZAH10,15..RHD202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMZAA10202207

main33823-12350iMZAH10,15202207

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMZAA10,MZAH10,15202207

3401

35974HOUSING, POSITION INDICATOR, LOWER

main35974-76010iMZAA10,MZAH10,15..LHD202207

main35974-76020iMZAA10,MZAH10,15..RHD202207

35978INDICATOR, SHIFT POSITION

main35978-76010iMZAA10..LHD202207

main35978-76020iMZAH10,15..LHD202207

main35978-76030iMZAA10..RHD202207

main35978-76040iMZAH10,15..RHD202207

main35978-76050iKMA10..LHD202303-202512

main35978-76060iKMA10..RHD202303-202512

5806

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

13 parts on this diagram · 8 diagrams in section
