EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20AFXS..MZAH11..CHI202207-202501

25620VALVE ASSY, EGR

main25620-24050iM20#..MZAA10,MZAH1#..ARL,EUR,GCC,GEN202207

main25620-24060iM20AFXS..MZAH10,15..LHD..EUR202207

UKRAINE SPEC

main25620-24060iM20AFXS..MZAH10,15..LHD..EUR202207

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main25620-24060iM20AFXS..MZAH10,15..LHD..EUR202207

MOROCCO SPEC

main25620-24060iM20AFXS..MZAH11..CHI202401-202501

25627GASKET, EGR VALVE

main25627-24010iM20#..MZAA10,MZAH10,15202207-202501

25628GASKET, EGR INLET

main25628-25010iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN202207-202501

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20AFXS..MZAH11..CHI202207-202501

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MZAA10202207

main25680-24020iM20AFKS..MZAA10..EUR202207

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main25680-24030iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN202207

main25680-24040iM20AFXS..MZAH10..CHI202207

MOROCCO SPEC

main25680-24040iM20AFXS..MZAH10..CHI202207

UKRAINE SPEC

main25680-24040iM20AFXS..MZAH11..CHI202401-202501

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20#..MZAA10,MZAH10,15202207-202501

9010506353

main90105-06353

9011906A29

main90119-06A29

9012608050

main90126-08050

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

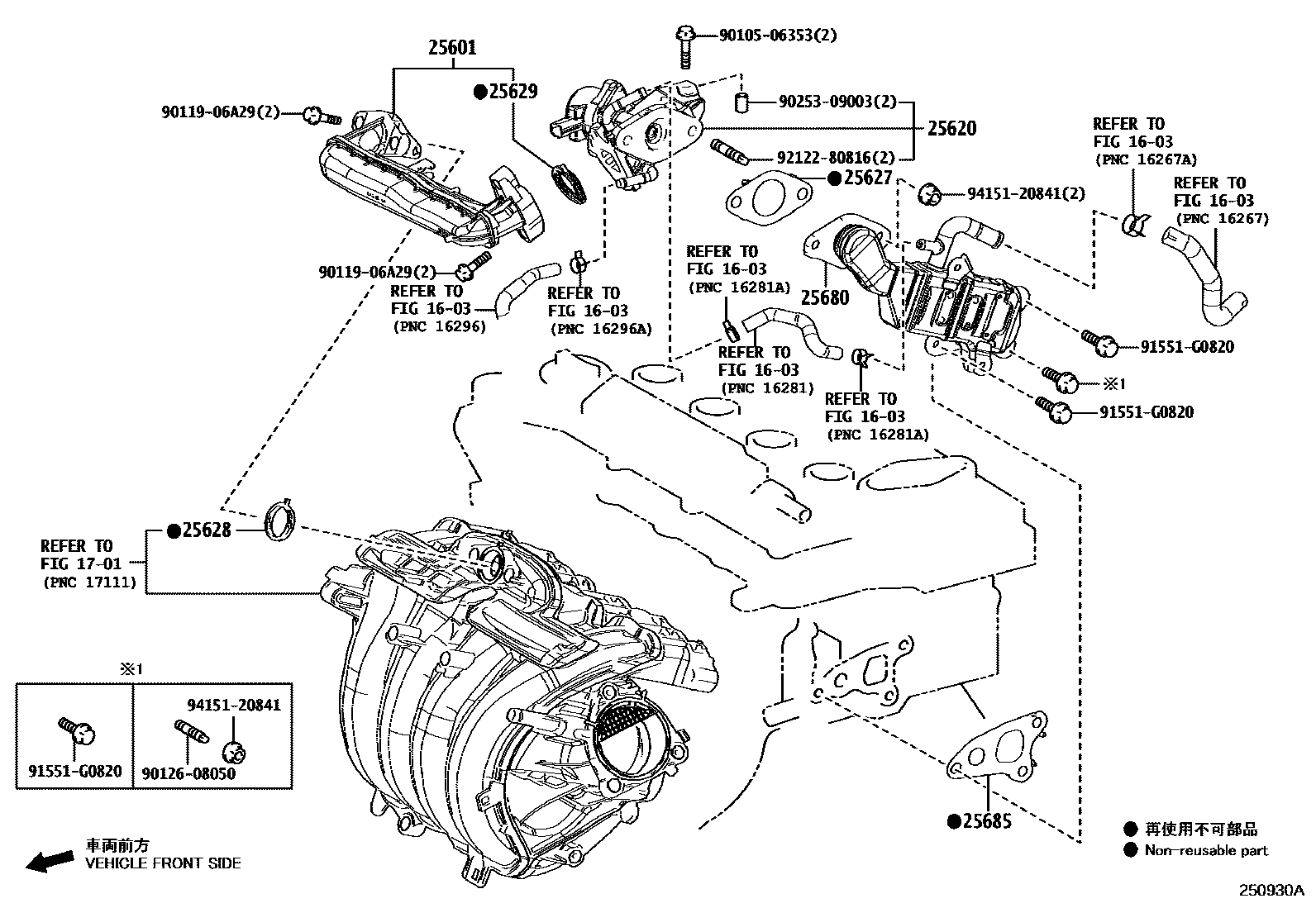

16 parts on this diagram · 1 diagram in section
