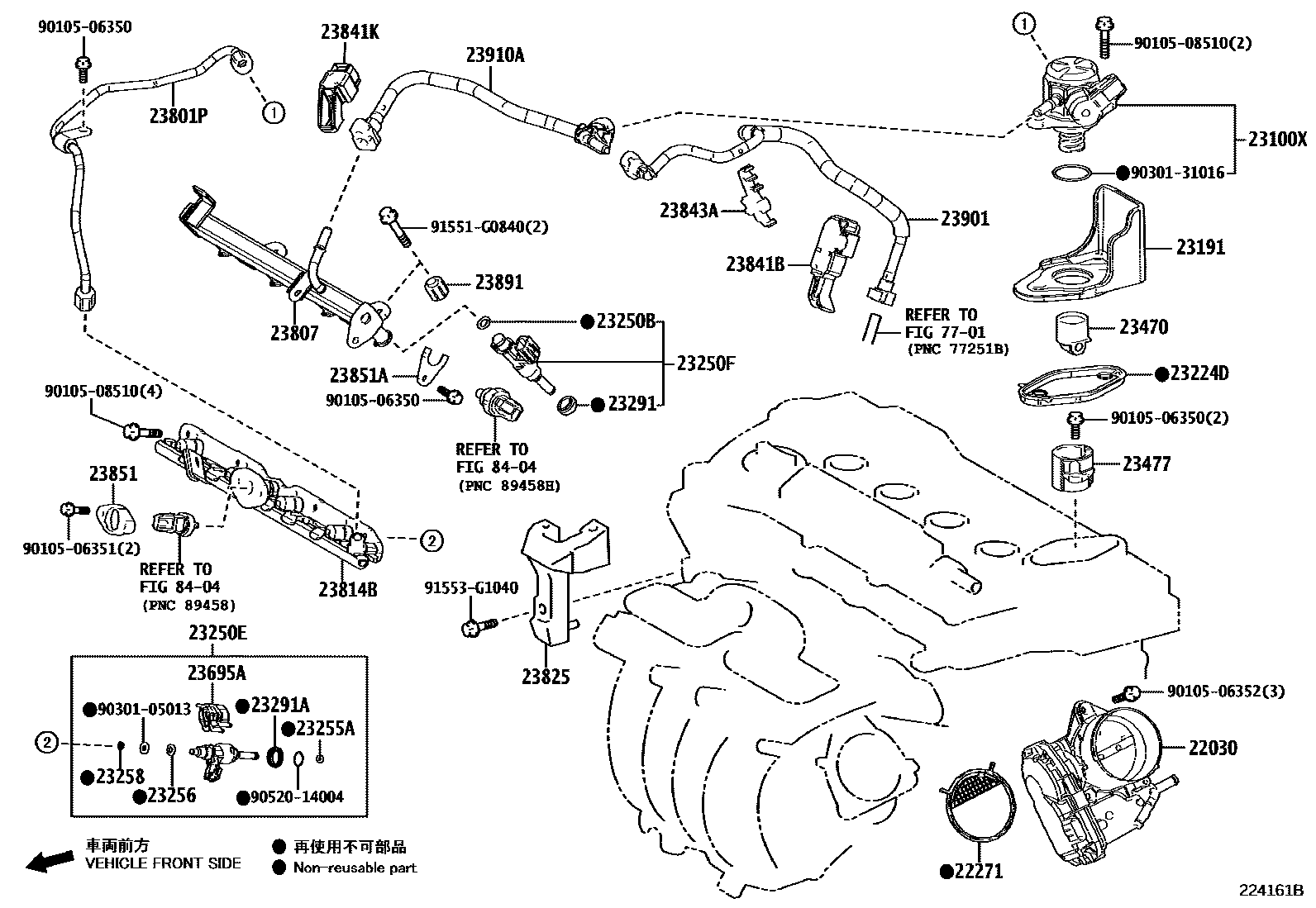

FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23814BPIPE, FUEL DELIVERY
23825GUARD, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5
DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5
23910ATUBE SUB-ASSY, FUEL
7701
8404
9010506350
main90105-06350
9010506351
main90105-06351
9010506352
main90105-06352
9010508510
main90105-08510
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
91551G0840
main91551-G0840
91553G1040
main91553-G1040
39 parts on this diagram · 3 diagrams in section
