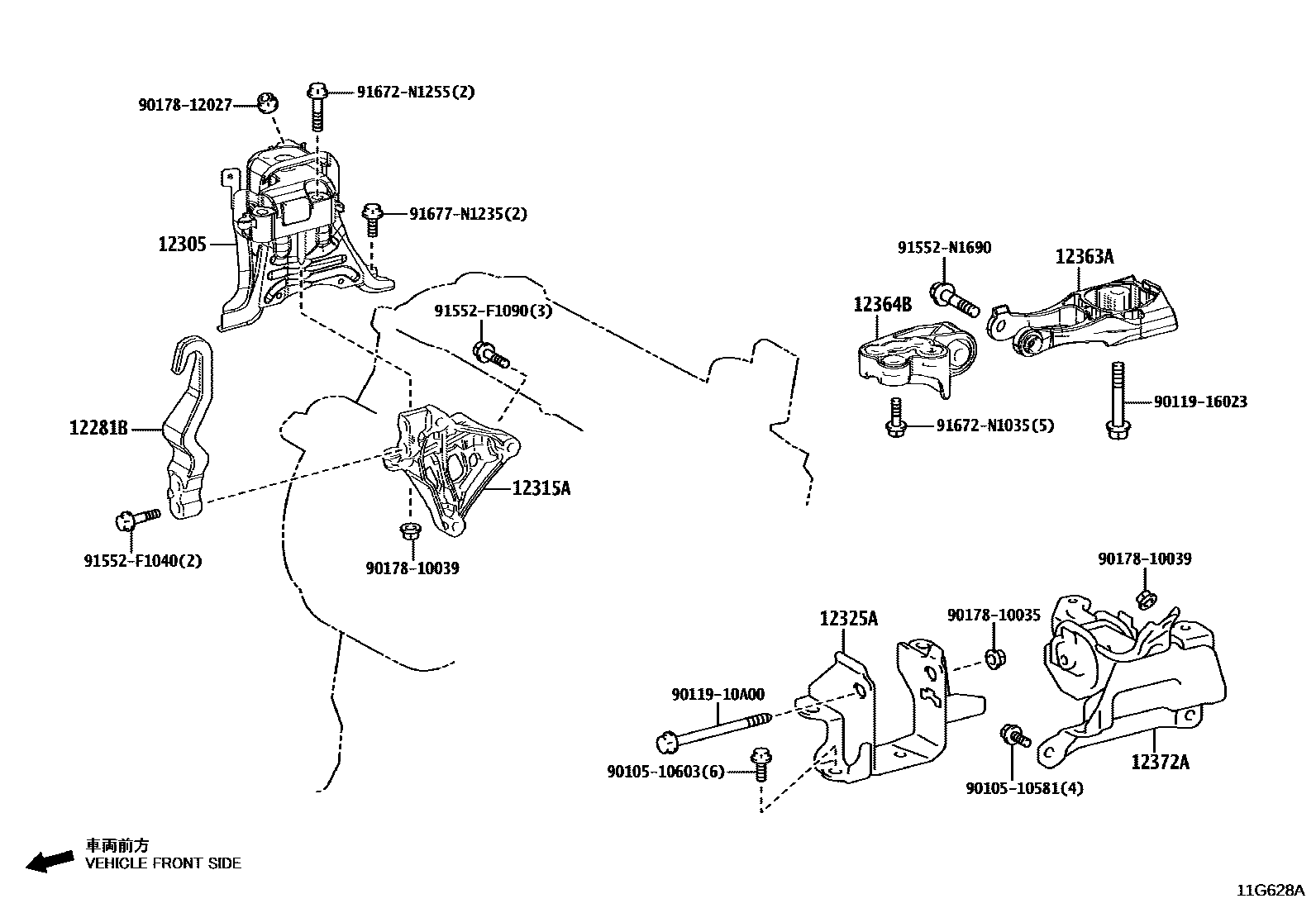

MOUNTING

0001 1 0002 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20#..MZAA10,MZAH10,15202207

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24010iM20AFKS..MZAA10202207

main12305-24020iM20AFXS..MZAH10,15202207

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24011iM20#..MZAA10,MZAH10,15202207

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-24070iM20AFKS..MZAA10202207

12363AROD, ENGINE MOVING CONTROL

main12363-24020iM20AFKS..MZAA10202207

main12363-24030iM20AFXS..MZAH10,15202207

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-24030iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN202401

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-24030iM20AFXS..MZAH10,15202207

main12372-24080iM20AFKS..MZAA10202207-202407

main12372-24081iM20AFKS..MZAA10202408

main12372-24090iM20AFXS..MZAH11..CHI202401-202501

9010510581

main90105-10581

9010510603

main90105-10603

9011910A00

main90119-10A00

9011916023

main90119-16023

9017810035

main90178-10035

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91552N1690

main91552-N1690

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

20 parts on this diagram · 2 diagrams in section
