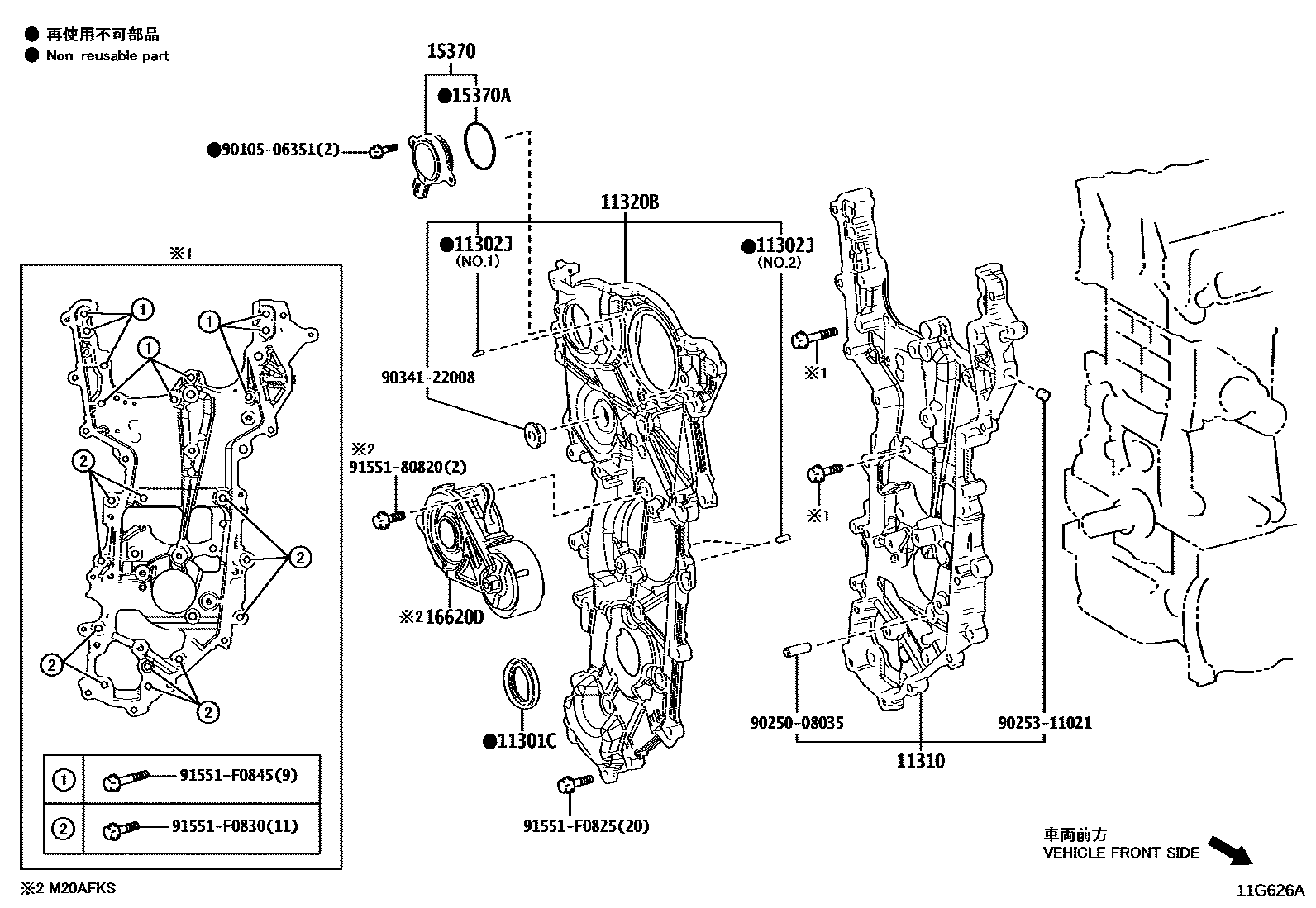

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN202207-202501

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN202207-202501

NO.1:REFER ILLUST.

main90250-06003iM20AFXS..MZAH11..CHI202207-202501

NO.2:REFER ILLUST.

11310COVER ASSY, TIMING CHAIN

main11310-24010iM20#..MZAA10,MZAH10,15202207-202501

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-24010iM20#..MZAA10,MZAH10,15202207-202501

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN202207-202501

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM20#..MZAA10,MZAH10,15202207-202501

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-24010iM20AFKS..MZAA10..ARL,GCC,GEN202207-202210

RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main16620-24010iM20AFKS..MZAA10..ARL,GCC,GEN202207-202210

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main16620-24021iM20AFKS..MZAA10..EUR202207-202210

main16620-24030iM20AFKS..MZAA10..ARL,GCC,GEN202210

RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main16620-24030iM20AFKS..MZAA10..ARL,GCC,GEN202210

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main16620-24040iM20AFKS..MZAA10..EUR202210

9010506351

main90105-06351

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

9155180820

main91551-80820

91551F0825

main91551-F0825

91551F0830

main91551-F0830

91551F0845

main91551-F0845

15 parts on this diagram · 1 diagram in section
