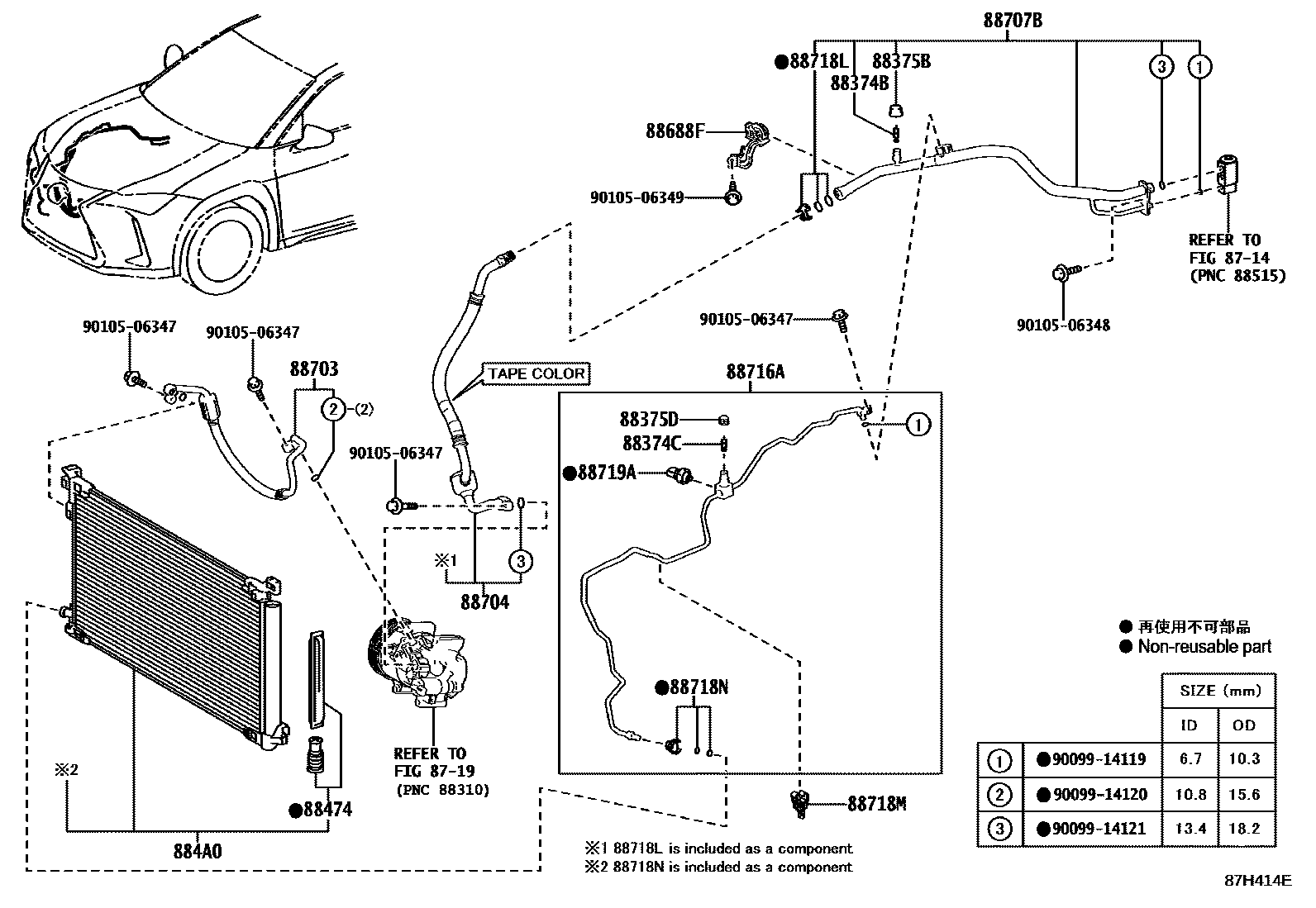

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMZAA10,MZAH1#201810-202207

88374CVALVE, SERVICE, NO.2

main88374-30010iMZAA10,MZAH1#201810-201910

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iMZAA10,MZAH1#..LHD..EUR201810-202207

UKRAINE SPEC

main88375-30290iMZAA10,MZAH1#..LHD..EUR201810-202207

RUSSIA SPEC

main88375-30290iMZAA10,MZAH1#..LHD..EUR201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main88375-30290iMZAA10,MZAH1#..LHD..EUR201810-202207

KAZAKHSTAN SPEC

main88375-30310iMZAA10,MZAH1#..EUR201810-202207

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iMZAA10,MZAH1#..LHD..EUR201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main88375-30280iMZAA10,MZAH1#..ARL,CHI,GCC,GEN201810-202207

RUSSIA SPEC

main88375-30280iMZAA10,MZAH1#..ARL,CHI,GCC,GEN201810-202207

UKRAINE SPEC

main88375-30280iMZAA10,MZAH1#..ARL,CHI,GCC,GEN201810-202207

KAZAKHSTAN SPEC

main88375-30320iMZAA10,MZAH1#..EUR201810-202207

88474DRYER, COOLER

main88474-12020iMZAA10,MZAH1#¥0201810-202207

884A0CONDENSER ASSY, COOLER

main884A0-12010iMZAA10..EUR¥32,300201810-202207

main884A0-12020iMZAA10..LHD..EUR201810-202207

UKRAINE SPEC

main884A0-12020iMZAA10..ARL,CHI,GCC,GEN201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main884A0-12020iMZAA10..ARL,CHI,GCC,GEN201810-202207

RUSSIA SPEC

main884A0-12020iMZAA10..ARL,CHI,GCC,GEN201810-202207

KAZAKHSTAN SPEC

main884A0-76010iMZAH1#¥32,300201811-202207

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-12A40iMZAA10201810-202207

main88688-76060iMZAH1#201811-202207

88703HOSE SUB-ASSY, DISCHARGE

main88703-76020iMZAH1#¥10,400201811-202207

main88703-76030iMZAA10¥8,100201810-202207

88704HOSE SUB-ASSY, SUCTION

main88704-12A20iMZAA10¥10,500201810-202010

TAPE COLOR : PINK

sub88704-12B80

main88704-12A90iMZAA10¥9,900202010-202207

TAPE COLOR : BLUE

main88704-76020iMZAH1#¥8,700201811-202207

88707BTUBE SUB-ASSY, SUCTION, B

main88707-12410iMZAA10..RHD202108-202207

main88707-76010iMZAH1#..RHD..EUR¥8,900201901-202207

main88707-76020iMZAH1#..RHD..(ARL,GEN)201811-202207

main88707-76030iMZAH1#..LHD..EUR201811-202207

main88707-76040iMZAH1#..LHD..EUR201811-202207

UKRAINE SPEC

main88707-76040iMZAH1#..LHD..EUR201811-202207

RUSSIA SPEC

main88707-76040iMZAH1#..LHD..EUR201811-202207

MOROCCO SPEC

main88707-76040iMZAH1#..LHD..EUR201811-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main88707-76040iMZAH1#..LHD..EUR201811-202207

KAZAKHSTAN SPEC

main88710-12A00iMZAA10..LHD..EUR201810-202207

main88710-76120iMZAA10..RHD..EUR¥22,800201901-202009

main88710-76130iMZAA10..RHD..(ARL,GEN)201810-202108

main88710-76140iMZAA10..LHD..EUR201810-202207

KAZAKHSTAN SPEC

main88710-76140iMZAA10..LHD..(CHI,GCC,GEN)201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main88710-76140iMZAA10..LHD..(CHI,GCC,GEN)201810-202207

RUSSIA SPEC

main88710-76140iMZAA10..LHD..(CHI,GCC,GEN)201810-202207

UKRAINE SPEC

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12B00iMZAA10..LHD..EUR201810-201910

main88710-12C10iMZAA10..LHD..EUR201910-202207

main88710-12C30iMZAA10..RHD202108-202207

main88710-76040iMZAH1#..RHD..EUR¥18,200201901-201910

main88710-76050iMZAH1#..RHD..(ARL,GEN)201811-201910

main88710-76060iMZAH1#..LHD..EUR201811-201910

main88710-76070iMZAH1#..LHD..(CHI,GCC,GEN)201811-201910

KAZAKHSTAN SPEC

main88710-76070iMZAH1#..LHD..(CHI,GCC,GEN)201811-201910

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main88710-76070iMZAH1#..LHD..(CHI,GCC,GEN)201811-201910

MOROCCO SPEC

main88710-76070iMZAH1#..LHD..(CHI,GCC,GEN)201811-201910

RUSSIA SPEC

main88710-76070iMZAH1#..LHD..(CHI,GCC,GEN)201811-201910

UKRAINE SPEC

main88710-76080iMZAA10..RHD..EUR¥16,500201901-201910

main88710-76090iMZAA10..RHD..(ARL,GEN)201810-201910

main88710-76110iMZAA10..LHD..EUR201810-201910

KAZAKHSTAN SPEC

main88710-76110iMZAA10..LHD..EUR201810-201910

UKRAINE SPEC

main88710-76110iMZAA10..LHD..EUR201810-201910

RUSSIA SPEC

main88710-76110iMZAA10..LHD..EUR201810-201910

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main88710-76170iMZAH1#..RHD..EUR¥14,100201910-202207

main88710-76180iMZAH1#..RHD..(ARL,GEN)201910-202207

main88710-76190iMZAH1#..LHD..EUR201910-202207

main88710-76200iMZAH1#..LHD..EUR201910-202207

KAZAKHSTAN SPEC

main88710-76200iMZAH1#..LHD..EUR201910-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main88710-76200iMZAH1#..LHD..EUR201910-202207

RUSSIA SPEC

main88710-76200iMZAH1#..LHD..(CHI,GCC,GEN)201910-202207

MOROCCO SPEC

main88710-76200iMZAH1#..LHD..(CHI,GCC,GEN)201910-202207

UKRAINE SPEC

main88710-76210iMZAA10..RHD..EUR¥14,100201910-202009

main88710-76220iMZAA10..RHD..(ARL,GEN)201910-202108

main88710-76240iMZAA10..LHD..(CHI,GCC,GEN)201910-202207

KAZAKHSTAN SPEC

main88710-76240iMZAA10..LHD..EUR201910-202207

UKRAINE SPEC

main88710-76240iMZAA10..LHD..EUR201910-202207

RUSSIA SPEC

main88710-76240iMZAA10..LHD..EUR201910-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

88718LCLAMP, PIPING

main88718-52280iMZAA10,MZAH1#¥0201810-202207

88718MCLAMP, PIPING

main88718-47110iMZAA10,MZAH1#201810-202207

88718NCLAMP, PIPING

main88718-1E150iMZAA10,MZAH1#¥0201810-202207

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMZAA10,MZAH1#201810-202207

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9010506347

main90105-06347¥60

9010506348

main90105-06348¥60

9010506349

main90105-06349¥60

23 parts on this diagram · 4 diagrams in section
