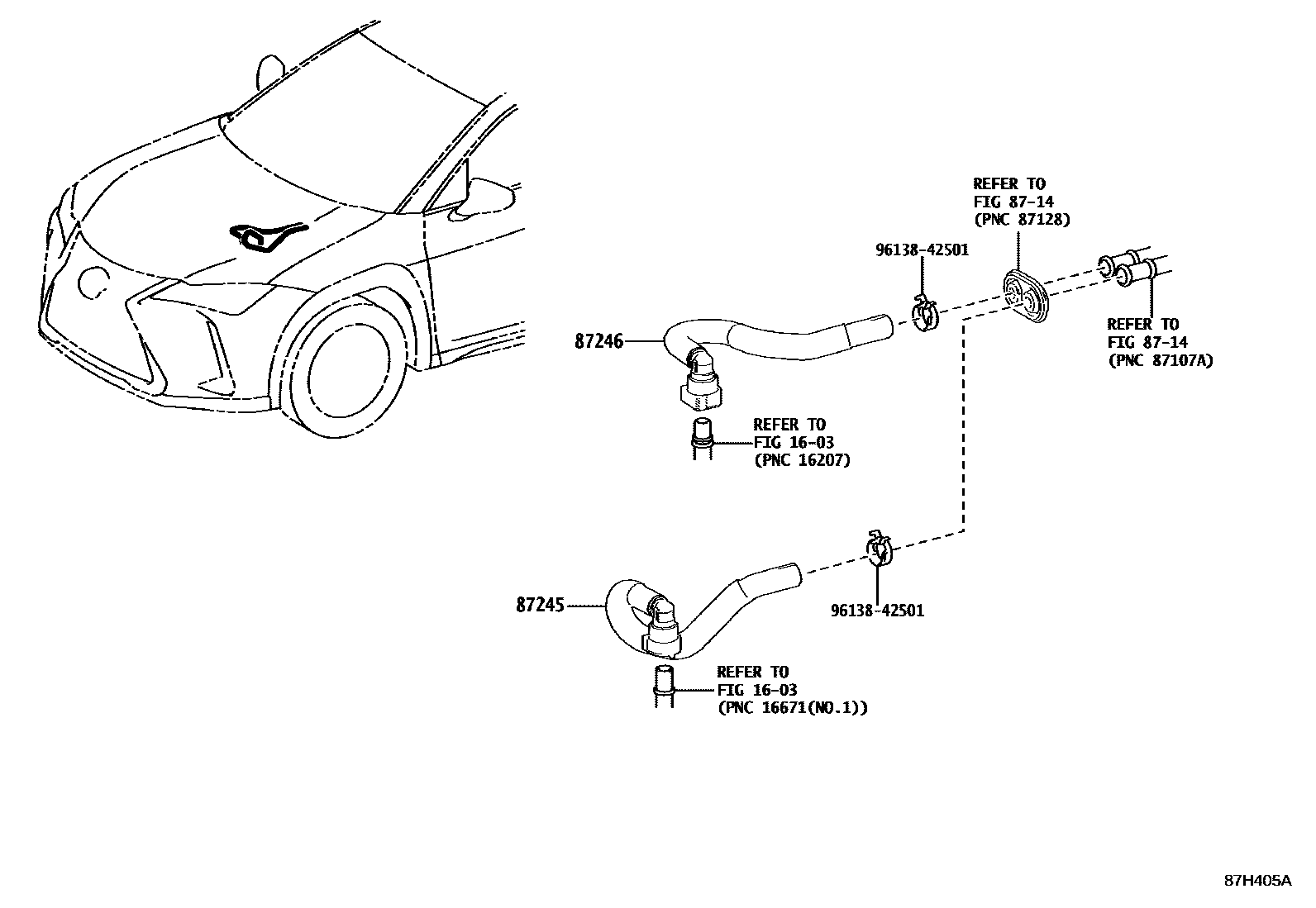

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-12640iMZAA10¥2,140201810-202207

main87209-76020iMZAH1#..EUR¥1,150201811-202207

THAILAND SPEC

main87209-76020iMZAH1#..EUR¥1,150201811-202207

TAIWAN SPEC

main87209-76020iMZAH1#..EUR¥1,150201811-202207

CHILE SPEC

main87209-76020iMZAH1#..EUR¥1,150201811-202207

HONG KONG SPEC

87246HOSE, HEATER WATER, OUTLET

main87209-12710iMZAA10¥1,250201810-202207

9613842501

main96138-42501¥180

5 parts on this diagram · 3 diagrams in section
