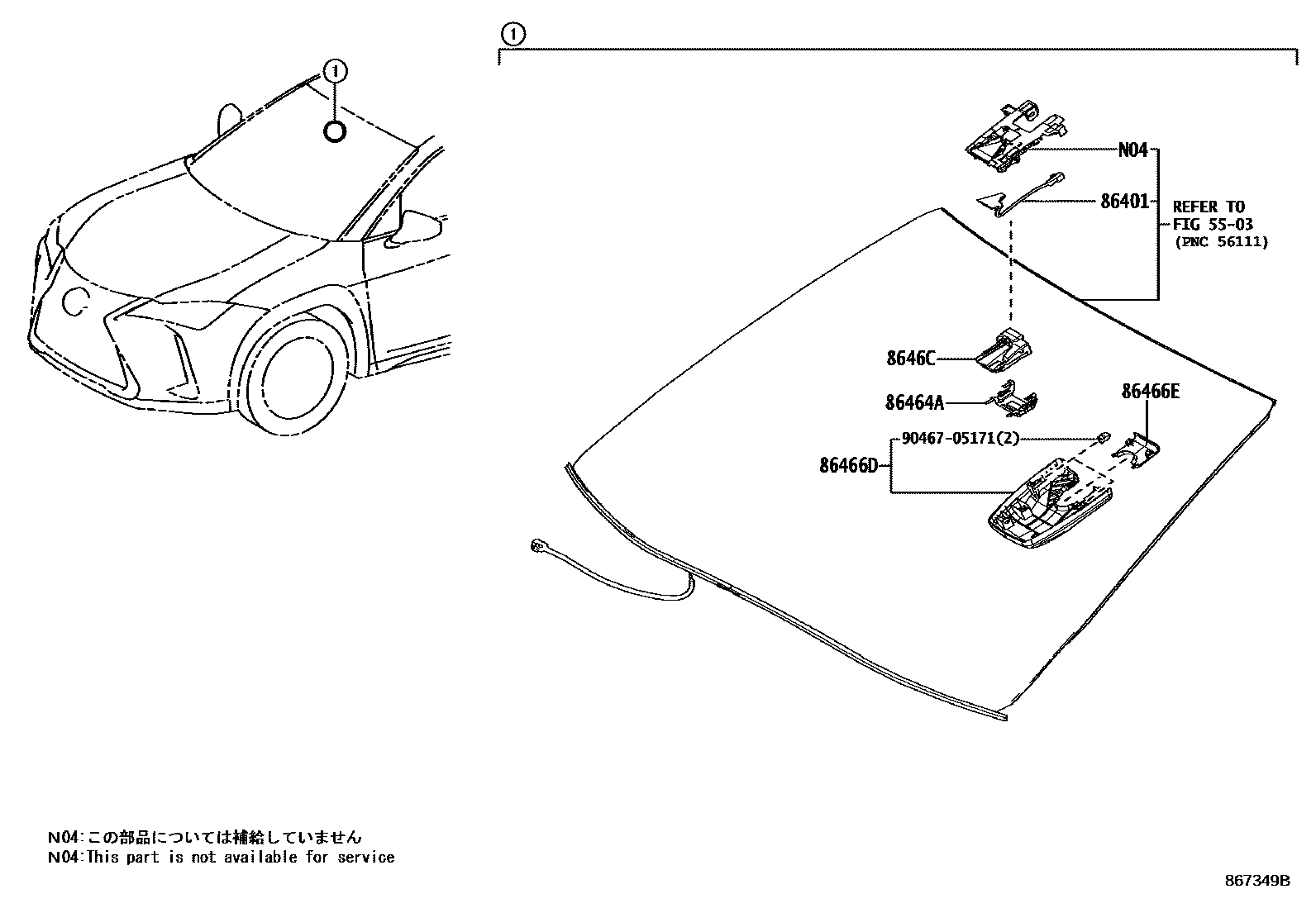

PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-76020iMZAA10,MZAH1#..RHD..(ARL,EUR)201810-201904

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

sub86401-76021

main86401-76020iMZAA10,MZAH1#..RHD..EUR201901-201904

SAFETY SENSE-WITHOUT

sub86401-76021

main86401-76021iMZAA10,MZAH1#..RHD..(ARL,EUR)201908-202207

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main86401-76021iMZAA10,MZAH1#..RHD..(ARL,EUR)201908-202207

SAFETY SENSE-WITHOUT

86464ALATCH, FORWARD RECOGNITION

main86464-26010iMZAA10,MZAH1#..RHD..(ARL,EUR)201810-202207

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main86464-26010iMZAA10,MZAH1#..RHD..EUR201901-202207

SAFETY SENSE-WITHOUT

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-76030iMZAA10,MZAH1#..RHD..(ARL,EUR)201810-202207

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main86466-76030iMZAA10,MZAH1#..RHD..EUR201901-202207

SAFETY SENSE-WITHOUT

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-76040iMZAA10,MZAH1#..RHD..(ARL,EUR)201810-202207

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main86466-76040iMZAA10,MZAH1#..RHD..EUR201901-202207

SAFETY SENSE-WITHOUT

8646CCAMERA, FORWARD RECOGNITION

main8646C-76020iMZAA10,MZAH1#..RHD..(ARL,EUR)201810-201910

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main8646C-76020iMZAA10,MZAH1#..RHD..EUR201901-201910

SAFETY SENSE-WITHOUT

main8646C-76030iMZAA10,MZAH1#..RHD..(ARL,EUR)201910-202010

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main8646C-76030iMZAA10,MZAH1#..RHD..(ARL,EUR)201910-202010

SAFETY SENSE-WITHOUT

main8646C-76050iMZAA10,MZAH1#..RHD..(ARL,EUR)202010-202111

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main8646C-76050iMZAA10,MZAH1#..RHD..(ARL,EUR)202010-202111

SAFETY SENSE-WITHOUT

main8646C-76051iMZAA10,MZAH1#..RHD..(ARL,EUR)202111-202207

SAFETY SENSE-WITH(LEXUS SAFETY SYSTEM +A)

main8646C-76051iMZAA10,MZAH1#..RHD..(ARL,EUR)202111-202207

SAFETY SENSE-WITHOUT

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
