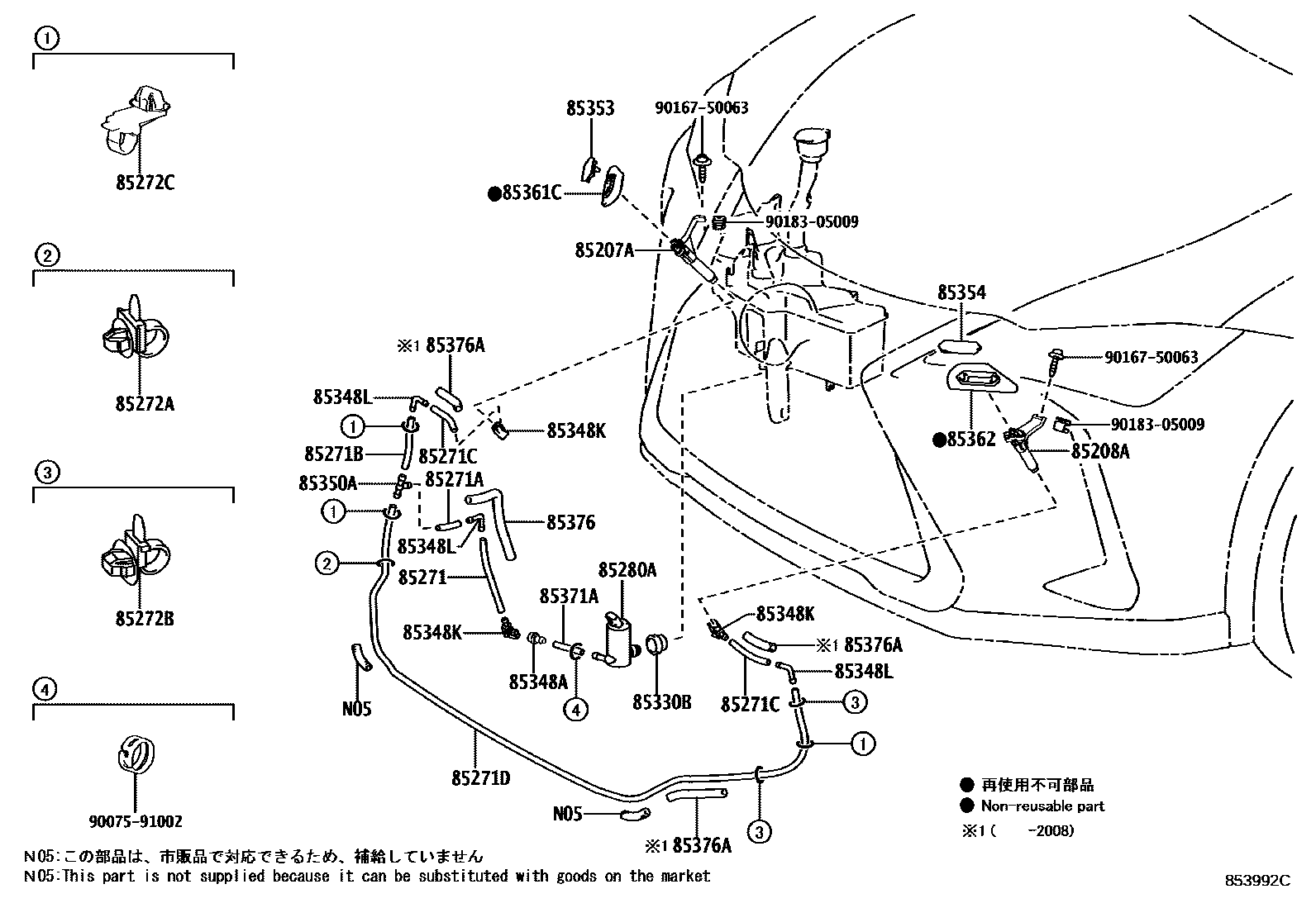

HEADLAMP CLEANER

0001 1NORMAL 0002 1F-SPORT

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-76010

main90075-15063

main90075-15066

main90075-15068

main90075-15070

main90075-15082

main90075-15094

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85271CHOSE, HEADLAMP CLEANER, NO.4

85271DHOSE, HEADLAMP CLEANER, NO.5

85272ACLAMP, HEADLAMP CLEANER, NO.1

85272BCLAMP, HEADLAMP CLEANER, NO.2

85272CCLAMP, HEADLAMP CLEANER, NO.3

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85330BBUSH, HEADLAMP CLEANER WASHER JAR

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3

85353COVER, HEADLAMP WASHER, RH

main85353-76030

main85353-76040

85354COVER, HEADLAMP WASHER, LH

main85354-76030

main85354-76040

85361CBRACKET, WASHER

85362BRACKET, WASHER, NO.2

main85362-76010

main85362-76020

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85278-76010

main85277-76010

main85277-76020

85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2

9007591002

main90075-91002

9016750063

main90167-50063

9018305009

main90183-05009

26 parts on this diagram · 2 diagrams in section
