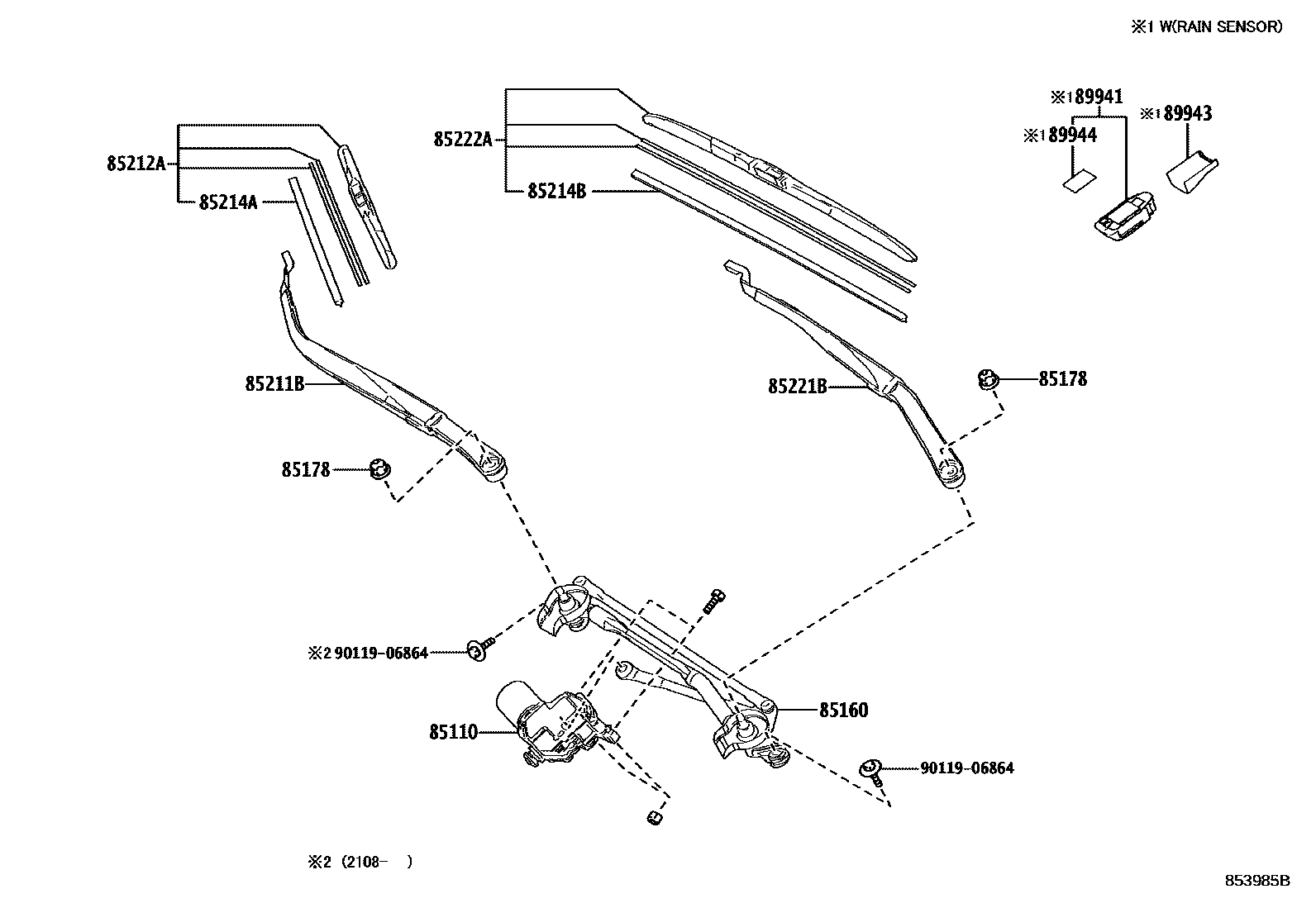

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-76070iMZAA10,MZAH1#..LHD201810-202006

sub85110-76071

main85110-76071iMZAA10,MZAH1#..LHD202007-202010

sub85110-76072

main85110-76072iMZAA10,MZAH1#..LHD202011-202207

main85110-76080iMZAA10,MZAH1#..RHD..(ARL,GEN)201810-202006

sub85110-76081

main85110-76081iMZAA10,MZAH1#..RHD..(ARL,GEN)202007-202010

sub85110-76082

main85110-76082iMZAA10,MZAH1#..RHD..(ARL,GEN)202011-202207

main85110-76090iMZAA10,MZAH1#..RHD..EUR201901-202006

sub85110-76091

main85110-76091iMZAA10,MZAH1#..RHD..EUR202007-202010

sub85110-76092

main85110-76092iMZAH1#..RHD..EUR202011-202207

85160LINK ASSY, WINDSHIELD WIPER

main85150-76050iMZAA10,MZAH1#..LHD201810-202108

main85150-76051iMZAA10,MZAH1#..LHD202108-202207

main85150-76070iMZAA10,MZAH1#..RHD..(ARL,GEN)201810-202207

main85150-76080iMZAA10,MZAH1#..RHD..EUR201901-202207

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iMZAA10,MZAH1#201810-202207

85211BARM, FRONT WIPER, RH

main85211-76040iMZAA10,MZAH1#..LHD201810-202207

main85211-76050iMZAA10,MZAH1#..RHD..(ARL,GEN)201810-202207

main85211-76060iMZAA10,MZAH1#..RHD..EUR201901-202207

85212ABLADE, FR WIPER, RH

main85212-42210iMZAA10,MZAH1#..RHD..EUR202003-202207

main85212-60220iMZAA10,MZAH1#..RHD..(ARL,GEN)201810-202207

main85212-76020iMZAA10,MZAH1#..LHD201810-202207

85214ARUBBER, WIPER, RH

main85214-28090iMZAA10,MZAH1#..LHD201810-202207

main85214-52110iMZAA10,MZAH1#..RHD201810-202207

85214BRUBBER, WIPER, LH

main85214-28090iMZAA10,MZAH1#..RHD201810-202207

main85214-52110iMZAA10,MZAH1#..LHD201810-202207

85221BARM, FRONT WIPER, LH

main85221-76040iMZAA10,MZAH1#..LHD201810-202207

main85221-76050iMZAA10,MZAH1#..RHD..(ARL,GEN)201810-202207

main85221-76060iMZAA10,MZAH1#..RHD..EUR201901-202207

main85221-76070iMZAA10,MZAH10..LHD..GEN201910-202207

TAIWAN SPEC

85222ABLADE, FR WIPER, LH

main85222-42200iMZAA10,MZAH1#..LHD202003-202207

main85222-60260iMZAA10,MZAH1#..LHD201810-202003

main85222-76030iMZAA10,MZAH1#..RHD201810-202207

main85222-0E050iMZAH15..LHD..GEN201910-202010

TAIWAN SPEC

89941SENSOR, RAIN

main89941-76010iMZAA10,MZAH1#202010-202207

main89941-30040iMZAH1#;MZAA10..ARL,EUR,GCC,GEN202010-202207

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main89941-42020iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202010

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-76020iMZAA10,MZAH1#202010-202207

89944TAPE, RAIN SENSOR

main89944-42020iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
