HEV CONTROL COMPUTER

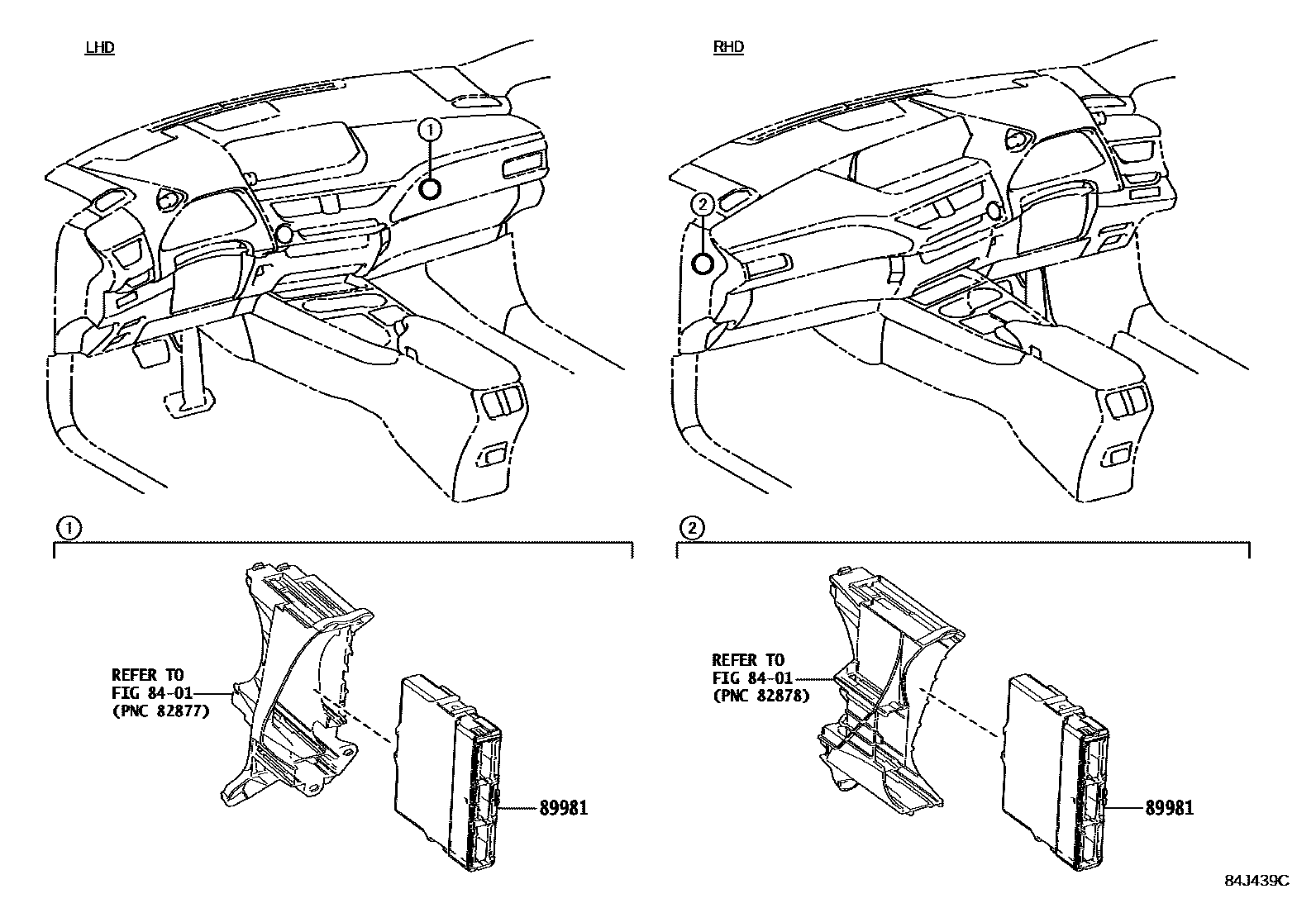

Parts diagram

8401

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-76050i201811-202010

main89981-76060i201811-202010

main89981-76090i201811-201910

main89981-76100i201811-201910

main89981-76170i201910-202010

main89981-76180i201910-202010

main89981-76240i202010-202207

main89981-76250i202010-202207

main89981-76260i202010-202108

main89981-76270i202010-202108

main89981-76280i202010-202207

main89981-76290i202010-202207

main89981-76350i202108-202207

main89981-76360i202108-202207

main89981-76070i201812-201910

CHINA ADVANCED CITY SPEC

main89981-76080i201812-201910

CHINA ADVANCED CITY SPEC

main89981-76110i201811-202010

RUSSIA SPEC

main89981-76120i201811-202010

RUSSIA SPEC

main89981-76150i201910-202010

CHINA ADVANCED CITY SPEC

main89981-76160i201910-202010

CHINA ADVANCED CITY SPEC

main89981-76300i202010-202207

RUSSIA SPEC

main89981-76310i202010-202207

RUSSIA SPEC

2 parts on this diagram · 1 diagram in section
