WIRELESS DOOR LOCK
8435
89740ARECEIVER ASSY, SMART DOOR CONTROL
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
sub899H0-76131
sub899H0-76291
sub899H0-76292
sub899H0-76401
sub899H0-76441
MALAYSIA SPEC&SMART ENTRY-2 BUTTON TYPE
MALAYSIA SPEC&SMART ENTRY-2 BUTTON TYPE
SMART ENTRY-4 BUTTON TYPE
SMART ENTRY-4 BUTTON TYPE
MALAYSIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
MALAYSIA SPEC&SMART ENTRY-2 BUTTON TYPE
SMART ENTRY-4 BUTTON TYPE
SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON)
MALAYSIA SPEC&SMART ENTRY-2 BUTTON TYPE
SMART ENTRY-4 BUTTON TYPE
INDONESIA SPEC
INDONESIA SPEC
INDONESIA SPEC&SMART ENTRY-4 BUTTON TYPE
INDONESIA SPEC&SMART ENTRY-4 BUTTON TYPE
SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON)
MALAYSIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON)
sub899H0-76461
SMART ENTRY-4 BUTTON TYPE
INDONESIA SPEC&SMART ENTRY-4 BUTTON TYPE
INDONESIA SPEC&SMART ENTRY-4 BUTTON TYPE
89997ANTENNA, ELECTRICAL KEY
MALAYSIA SPEC&PREMIUM PACKAGE&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A1ANTENNA, INDOOR ELECTRICAL KEY
9011906A07
main90119-06A07
9017906274
main90179-06274

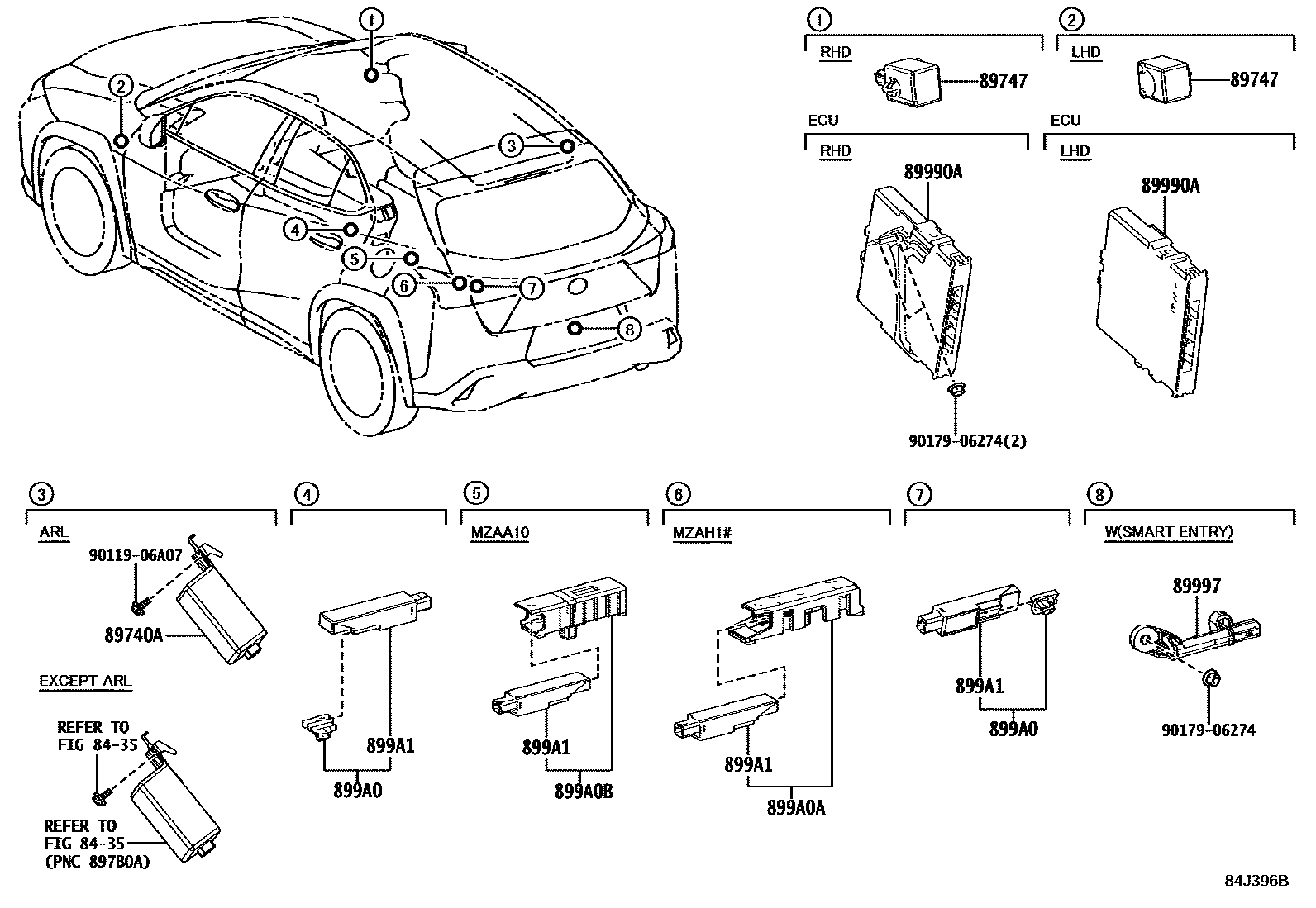

11 parts on this diagram · 1 diagram in section
