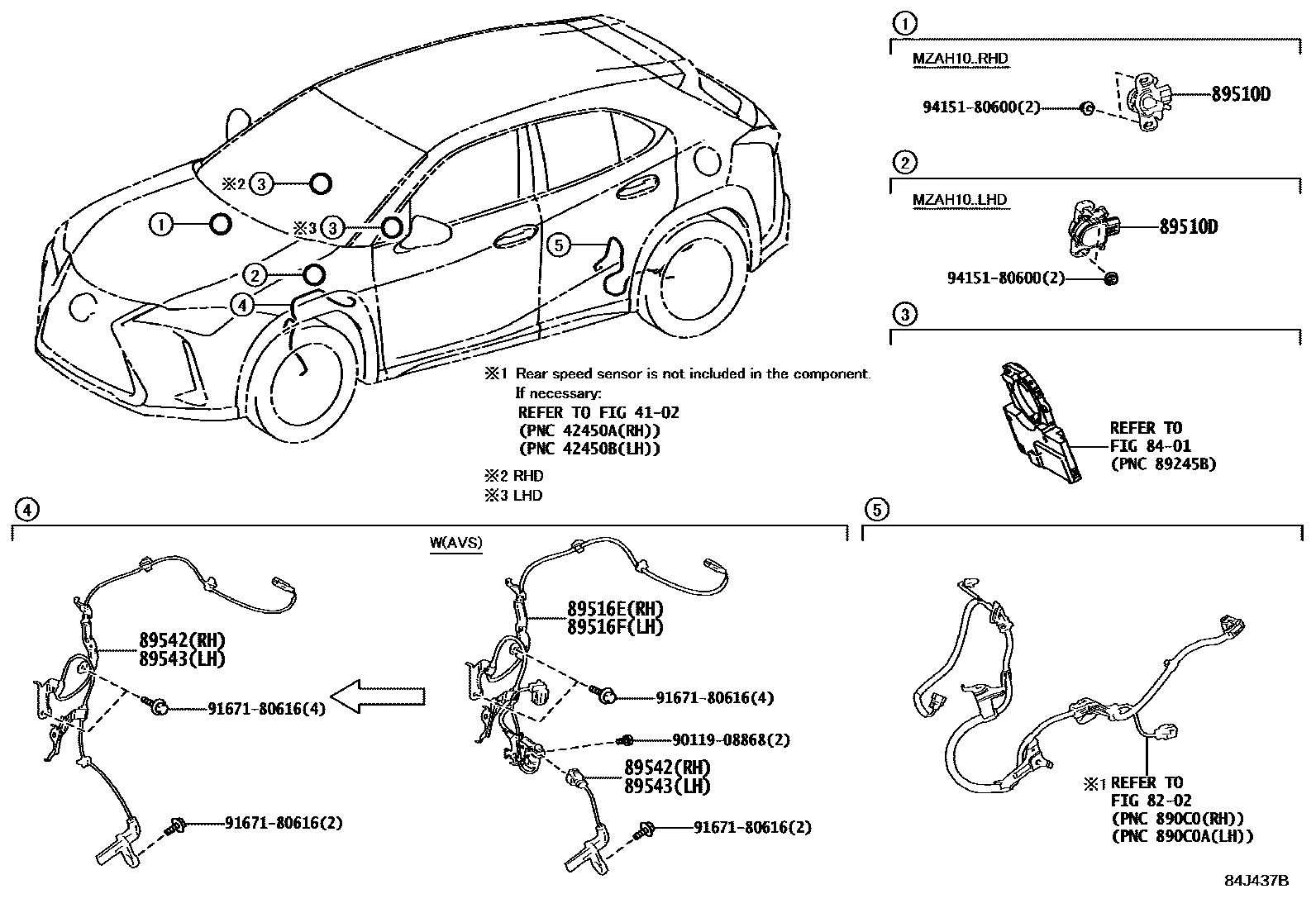

ABS & VSC

0001 1 0002 1

4102

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iMZAH1#..RHD201811-202207

main89510-47040iMZAH1#..LHD201811-202207

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-76010iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

AVS-WITH

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-76020iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

AVS-WITH

89542SENSOR, SPEED, FRONT RH

main89542-76010iMZAA10,MZAH1#201810-202207

main89542-12140iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

AVS-WITH

89543SENSOR, SPEED, FRONT LH

main89543-76010iMZAA10,MZAH1#201810-202207

main89543-12140iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

AVS-WITH

9011908868

main90119-08868

9167180616

main91671-80616

9415180600

main94151-80600

11 parts on this diagram · 2 diagrams in section
