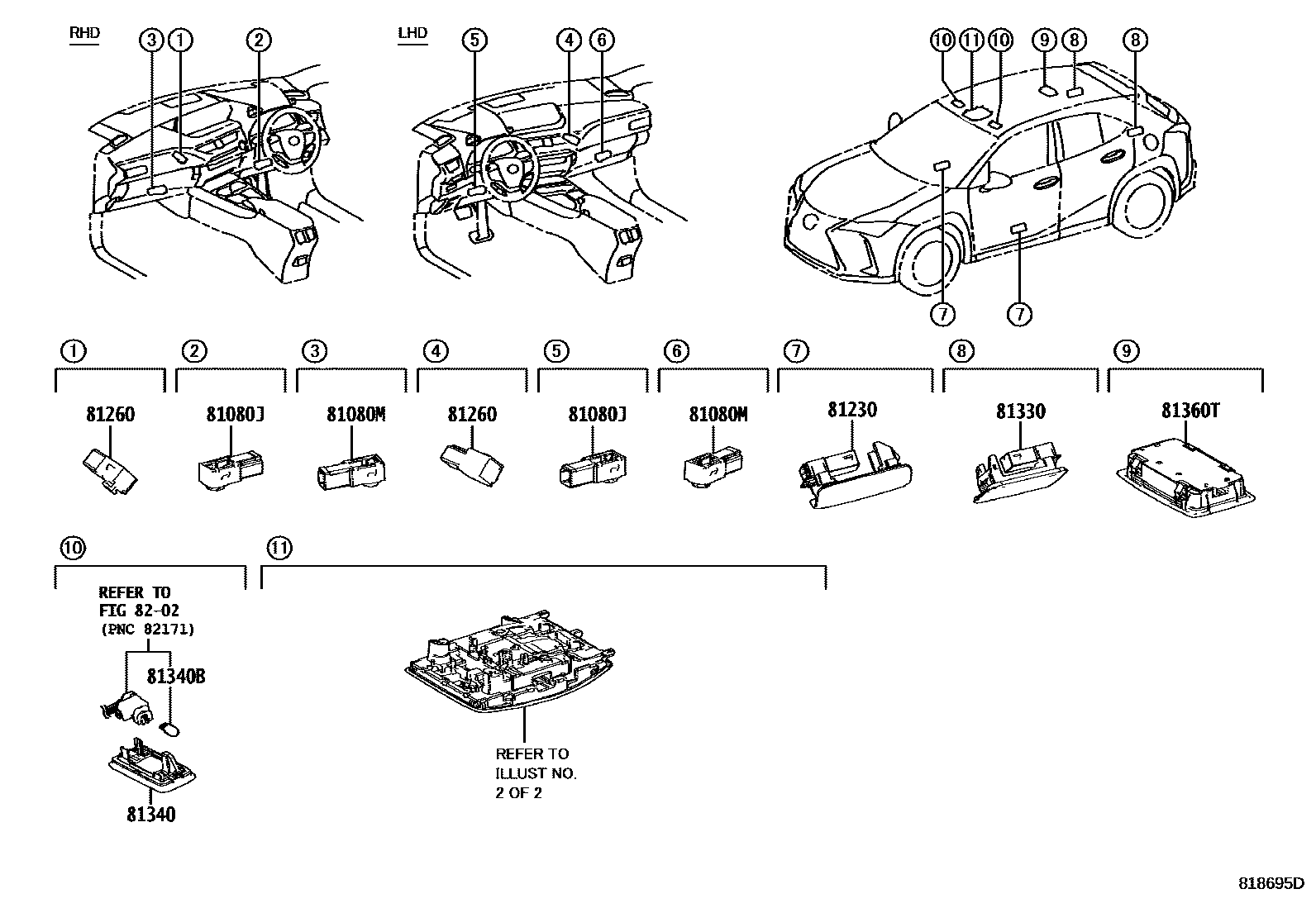

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50110iMZAA10,MZAH1#¥920201810-202207

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50110iMZAA10,MZAH1#¥920201810-202207

81230LAMP ASSY, COURTESY

main81230-11030iMZAA10,MZAH1#¥1,090201810-202207

81260LAMP ASSY, GLOVE BOX

main81080-50110iMZAA10,MZAH1#¥920201810-202207

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iMZAA10,MZAH1#¥1,090201810-202207

81340LAMP ASSY, VANITY

main81340-30110iMZAA10,MZAH1#¥1,670201810-202207

81340BBULB (FOR VANITY LAMP)

main90981-11062iMZAA10,MZAH1#¥340201810-202207

12V 8W

81360TLAMP ASSY, SPOT

main81360-76010-A0iMZAA10,MZAH10..ARL;MZAH15..RHD..(ARL,GEN)201810-202207

WHITE,TRIM00,11,4#,8#

main81360-76010-A0iMZAA10..GCC,GEN;MZAH1#..LHD..GEN201810-202207

WHITE,TRIM00,02,11,4#,8#

main81360-76010-A0iMZAH10..CHI,EUR,GCC;MZAA10,MZAH15..CHI,EUR201810-202207

WHITE,TRIM00,4#,8#

main81360-76010-A0iMZAH10..RHD..GEN201811-202207

WHITE,TRIM00,02,4#,8#

main81360-76010-C0iMZAA10..ARL;MZAH1#..RHD..(ARL,GEN)201810-202207

BLACK,TRIM01,1#,2#,3#

main81360-76010-C0iMZAA10..ARL;MZAH1#..RHD..(ARL,GEN)201810-202207

BLACK,TRIM01,10,2#,3#

8202

9 parts on this diagram · 2 diagrams in section
