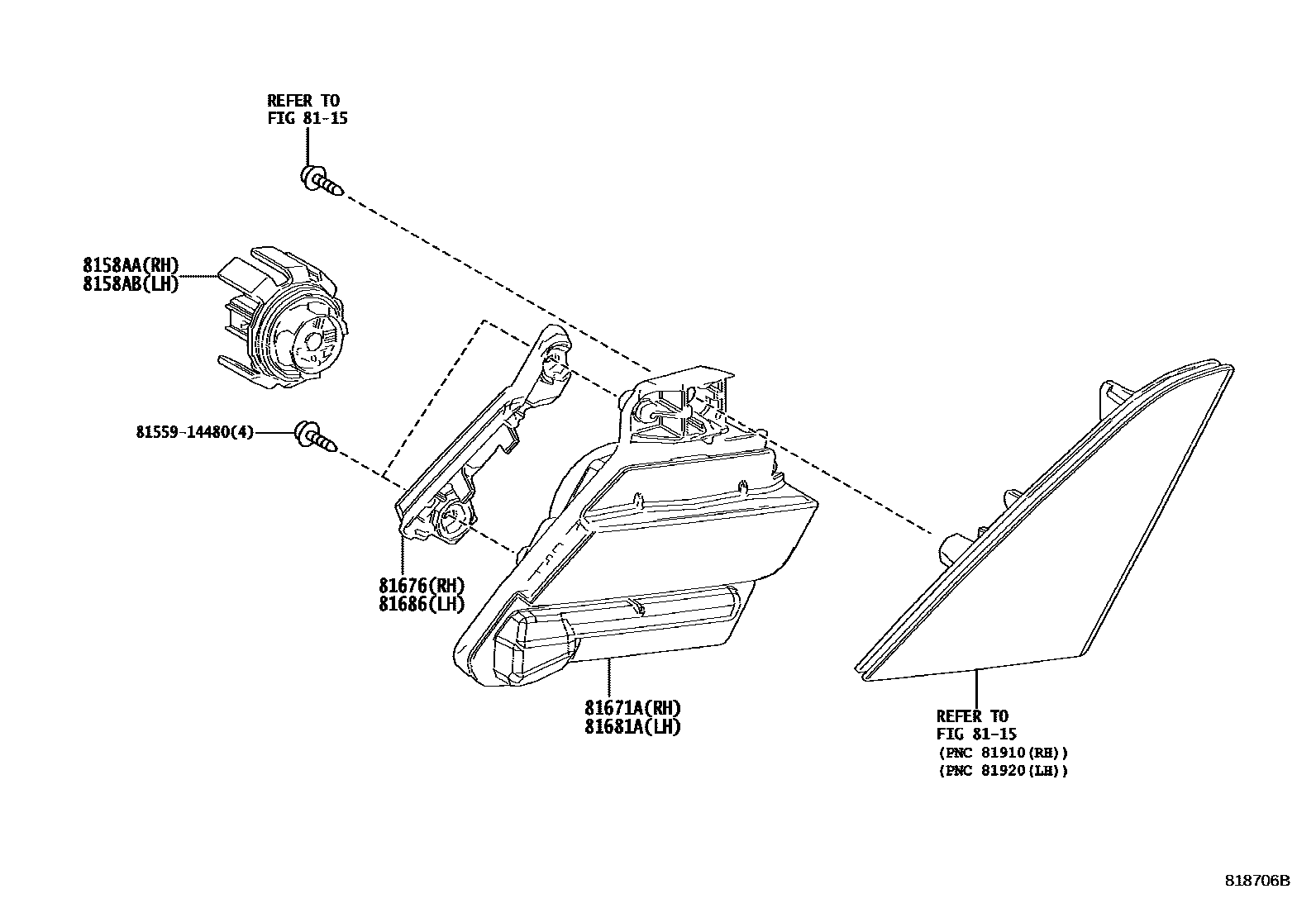

BACK UP LAMP

8115

8158AALED, BACK-UP LAMP, RH

main8158A-12260iMZAA10,MZAH1#201810-202207

8158ABLED, BACK-UP LAMP, LH

main8158A-12260iMZAA10,MZAH1#201810-202207

81671ALENS & BODY, BACK-UP LAMP

main81671-76010iMZAA10,MZAH1#201810-202207

81676RIM, BACK-UP LAMP, RH

main81676-76010iMZAA10,MZAH1#201810-202207

81681ALENS & BODY, BACK-UP LAMP, LH

main81681-76010iMZAA10,MZAH1#201810-202207

81686RIM, BACK UP LAMP, LH

main81686-76010iMZAA10,MZAH1#201810-202207

8155914480MOULDING, REAR COMBINATION LAMP, RH

main81559-14480

8 parts on this diagram · 1 diagram in section
