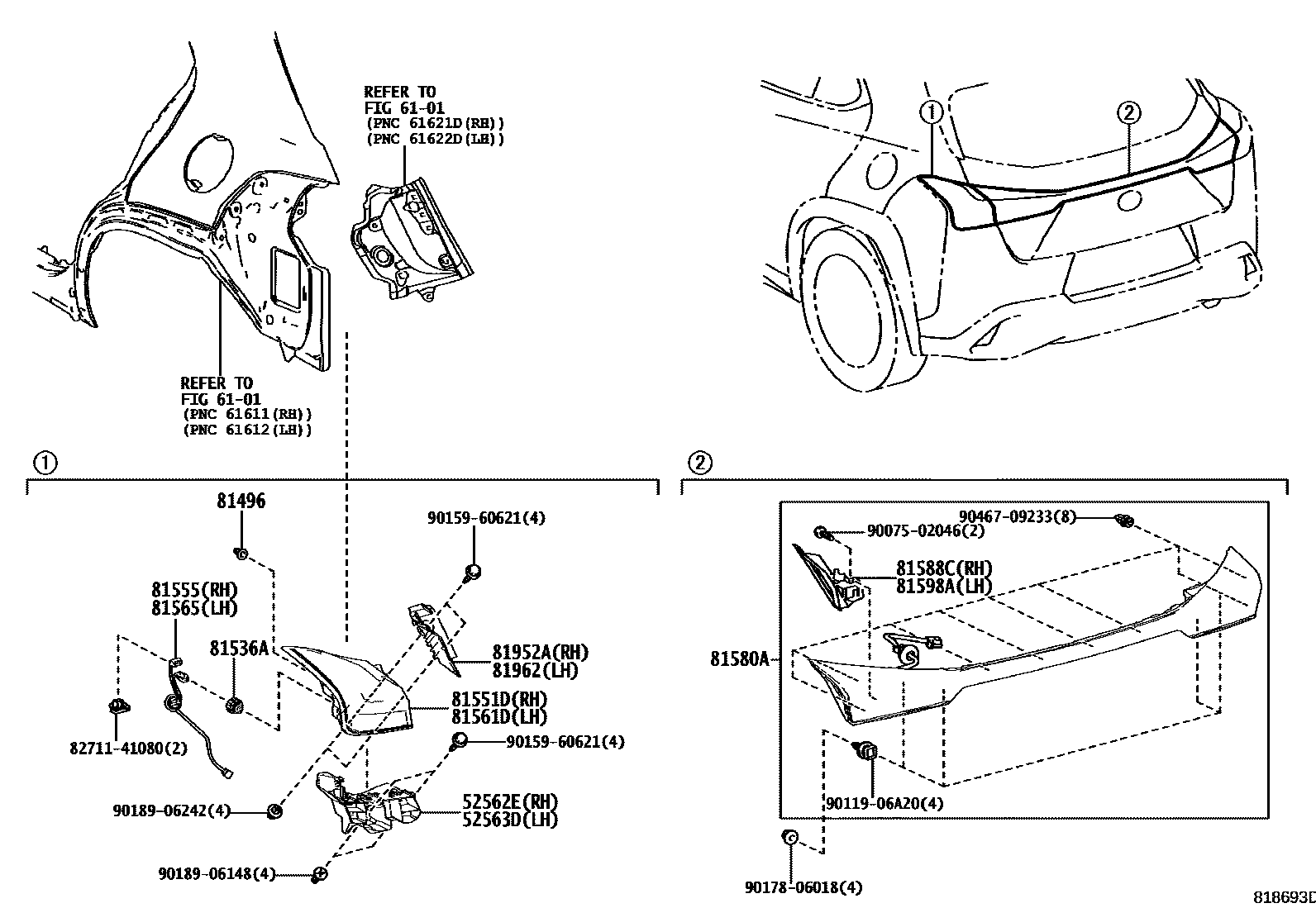

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-76020iMZAA10,MZAH1#¥4,890201810-202207

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-76020iMZAA10,MZAH1#¥4,890201810-202207

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iMZAA10,MZAH1#¥70201810-202207

81536ALED, REAR COMBINATION LAMP

main81536-12D30iMZAA10,MZAH1#¥3,670201810-202207

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-76320iMZAA10,MZAH1#¥42,400201810-201905

sub81551-76321¥39,800

main81551-76321iMZAA10,MZAH1#¥39,800201905-202005

sub81551-76370

main81551-76371iMZAA10,MZAH1#¥33,100202005-202207

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-76290iMZAA10,MZAH1#¥1,270201810-202207

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-76320iMZAA10,MZAH1#¥42,400201810-201905

sub81561-76321¥39,800

main81561-76321iMZAA10,MZAH1#¥39,800201905-202005

sub81561-76370

main81561-76371iMZAA10,MZAH1#¥33,100202005-202207

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-76290iMZAA10,MZAH1#¥1,270201810-202207

81580ALAMP ASSY, REAR

main81580-76150iMZAA10,MZAH1#..EUR,GCC,GEN¥90,100201810-201904

sub81580-76151¥90,200

main81580-76151iMZAA10,MZAH1#..EUR,GCC,GEN¥90,200201905-202004

sub81580-76152¥75,100

main81580-76152iMZAA10,MZAH1#..EUR,GCC,GEN¥75,100202005-202207

main81580-76170iMZAA10,MZAH1#..ARL,CHI¥82,900201810-201904

REAR FOG LAMP-WITHOUT

sub81580-76171¥82,800

main81580-76171iMZAA10,MZAH1#..ARL,CHI¥82,800201905-202004

REAR FOG LAMP-WITHOUT

sub81580-76172¥69,000

main81580-76172iMZAA10,MZAH1#..ARL,CHI¥69,000202005-202207

REAR FOG LAMP-WITHOUT

81588CRIM, REAR LAMP, RH

main81588-76140iMZAA10,MZAH1#¥810201810-202207

81598ARIM, REAR LAMP, LH

main81588-76170iMZAA10,MZAH1#¥810201810-202207

81952ACOVER, REAR LAMP, RH

main81952-76010iMZAA10,MZAH1#¥1,200201810-202207

81962COVER, REAR LAMP, LH

main81962-76010iMZAA10,MZAH1#¥1,200201810-202207

8271141080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-41080¥70

9007502046

main90075-02046¥80

9011906A20

main90119-06A20¥100

9015960621

main90159-60621¥60

9017806018

main90178-06018¥80

9018906148

main90189-06148¥80

9018906242

main90189-06242¥70

9046709233

main90467-09233¥80

22 parts on this diagram · 1 diagram in section
