SIDE MOULDING

0001 1DOOR & ROOF MOULDING 0002 1WHEEL ARCH & ROCKER MOULDING

6104

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-76010-A0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

WHITE NOVA GF.,083

main75551-76010-A1iMZAA10..ARL201810-202010

SONIC QUARTZ,085

main75551-76010-B0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,MERCURY GRAY MC.,1H9

main75551-76010-B1iMZAA10..ARL201810-202010

PLATINUM SILVER ME.,1J4

main75551-76010-B2iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,SONIC TITANIUM,1J7

main75551-76010-B3iMZAA10..RHD..GEN202108-202207

ROOF RAIL-WITH(BLACK PAINTED),SONIC CHROME,1L1

main75551-76010-C0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,BLACK,212

main75551-76010-C1iMZAA10..ARL201810-202010

GRAPHITE BLACK GF.,223

main75551-76010-D0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

MADDER RED,3T2

main75551-76010-E0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202108

ROOF RAIL-WITH,AMBER CS.,4X2

main75551-76010-E1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

BLAZING CARNELIAN CONTRAS,4Y1

main75551-76010-G0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

TERRANE KHAKI M.M.,6X4

main75551-76010-J0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

HEAT BLUE CONTRAST LAYERI,8X1

main75551-76010-J1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

CELESTIAL BLUE GF.,8Y6

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-76010-A0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

WHITE NOVA GF.,083

main75552-76010-A1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,SONIC QUARTZ,085

main75552-76010-B0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,MERCURY GRAY MC.,1H9

main75552-76010-B1iMZAA10..ARL201810-202010

PLATINUM SILVER ME.,1J4

main75552-76010-B2iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,SONIC TITANIUM,1J7

main75552-76010-B3iMZAA10..RHD..GEN202108-202207

SONIC CHROME,1L1

main75552-76010-C0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,BLACK,212

main75552-76010-C1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,GRAPHITE BLACK GF.,223

main75552-76010-D0iMZAA10..ARL201810-202010

MADDER RED,3T2

main75552-76010-E0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202108

ROOF RAIL-WITH,AMBER CS.,4X2

main75552-76010-E1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

BLAZING CARNELIAN CONTRAS,4Y1

main75552-76010-G0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

TERRANE KHAKI M.M.,6X4

main75552-76010-J0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

HEAT BLUE CONTRAST LAYERI,8X1

main75552-76010-J1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

CELESTIAL BLUE GF.,8Y6

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-76010-A0iMZAA10..ARL201810-202010

WHITE NOVA GF.,083

main75553-76010-A1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,SONIC QUARTZ,085

main75553-76010-B0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,MERCURY GRAY MC.,1H9

main75553-76010-B1iMZAA10..ARL201810-202010

PLATINUM SILVER ME.,1J4

main75553-76010-B2iMZAA10..ARL201810-202010

SONIC TITANIUM,1J7

main75553-76010-B3iMZAA10..RHD..GEN202108-202207

ROOF RAIL-WITH(BLACK PAINTED),SONIC CHROME,1L1

main75553-76010-C0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,BLACK,212

main75553-76010-C1iMZAA10..ARL201810-202010

GRAPHITE BLACK GF.,223

main75553-76010-D0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

MADDER RED,3T2

main75553-76010-E0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202108

ROOF RAIL-WITH,AMBER CS.,4X2

main75553-76010-E1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

BLAZING CARNELIAN CONTRAS,4Y1

main75553-76010-G0iMZAA10..ARL201810-202010

TERRANE KHAKI M.M.,6X4

main75553-76010-J0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

HEAT BLUE CONTRAST LAYERI,8X1

main75553-76010-J1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

CELESTIAL BLUE GF.,8Y6

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-76010-A0iMZAA10..ARL201810-202010

WHITE NOVA GF.,083

main75554-76010-A1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,SONIC QUARTZ,085

main75554-76010-B0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,MERCURY GRAY MC.,1H9

main75554-76010-B1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202108

ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4

main75554-76010-B2iMZAA10..ARL201810-202010

SONIC TITANIUM,1J7

main75554-76010-B3iMZAA10..RHD..GEN202108-202207

SONIC CHROME,1L1

main75554-76010-C0iMZAA10..ARL201810-202010

BLACK,212

main75554-76010-C1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITH,GRAPHITE BLACK GF.,223

main75554-76010-D0iMZAA10..ARL201810-202010

MADDER RED,3T2

main75554-76010-E0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202108

ROOF RAIL-WITH,AMBER CS.,4X2

main75554-76010-E1iMZAA10..ARL201810-202010

BLAZING CARNELIAN CONTRAS,4Y1

main75554-76010-G0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

TERRANE KHAKI M.M.,6X4

main75554-76010-J0iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

HEAT BLUE CONTRAST LAYERI,8X1

main75554-76010-J1iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

CELESTIAL BLUE GF.,8Y6

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-76030iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITHOUT

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-76030iMZAA10,MZAH1#..CHI,GCC,GEN201810-202207

ROOF RAIL-WITHOUT

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020×4iMZAA10,MZAH1#201810-202207

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-76020iMZAA10,MZAH1#201810-202207

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-76020iMZAA10,MZAH1#201810-202207

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-76040iMZAA10,MZAH1#201810-202207

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-76030iMZAA10,MZAH1#201810-202207

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-76020iMZAA10,MZAH1#201810-202207

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-76020iMZAA10,MZAH1#201810-202207

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-76020iMZAA10,MZAH1#201810-202207

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-76020iMZAA10,MZAH1#201810-202207

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-76020iMZAA10,MZAH1#201810-202207

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-76020iMZAA10,MZAH1#201810-202207

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-76020iMZAA10,MZAH1#201810-202207

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-76020iMZAA10,MZAH1#201810-202207

9026904067

main90269-04067

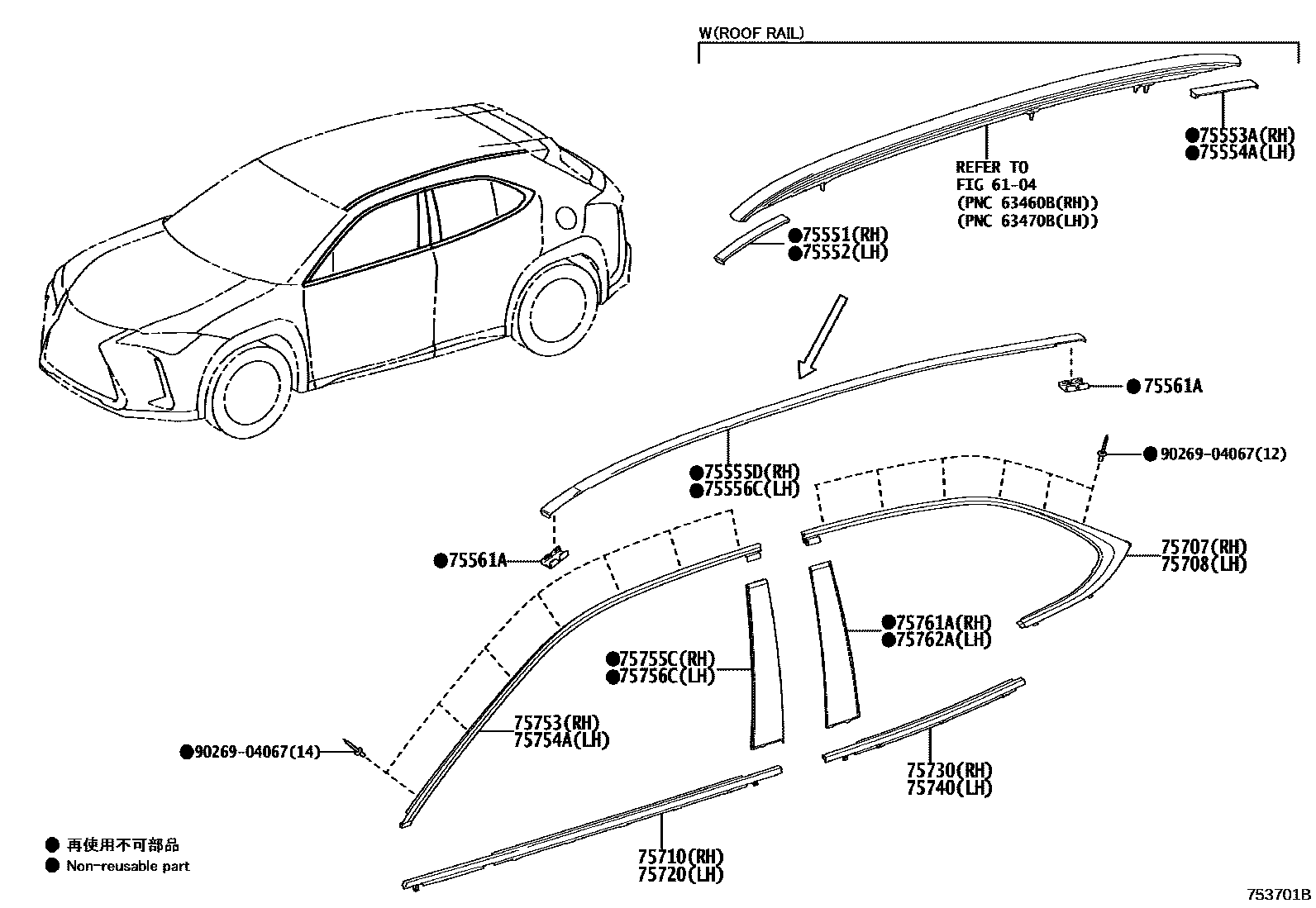

21 parts on this diagram · 2 diagrams in section
