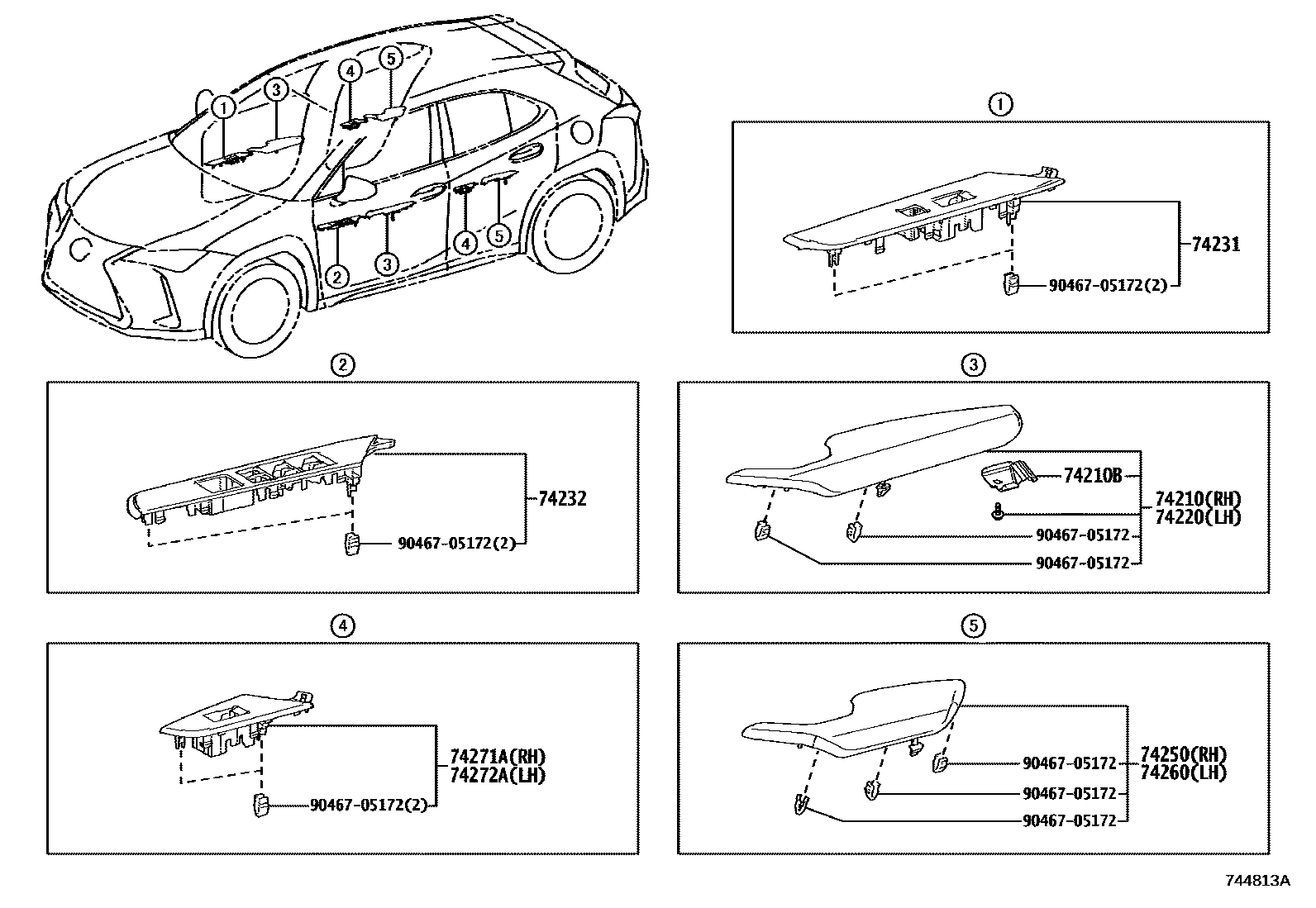

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-76020-A0iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

RICH CREAM,TRIM00

main74210-76020-A3iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

WHITE,TRIM01

main74210-76020-B0iMZAA10..ARL;MZAH1#..RHD..(ARL,GEN)201810-202207

WHITE ASH,TRIM1#,8#

main74210-76020-B1iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN201810-202108

CHATEAU,TRIM11

main74210-76020-B2iMZAA10,MZAH1#..EUR202010-202108

MD. GRAY,TRIM24

main74210-76020-C0iMZAA10,MZAH1#..EUR202010-202207

BLACK,TRIM20,21

main74210-76020-D1iMZAA10,MZAH1#201810-202207

RED,TRIM3#

main74210-76020-E1iMZAA10,MZAH1#201810-202207

OCHER,TRIM4#

main74210-76020-J0iMZAH15..ARL202010-202207

BLUE,TRIM02,23

74210BBRACKET, ARMREST SET

main67645-76010iMZAA10,MZAH1#201810-202207

RH

main67646-76010iMZAA10,MZAH1#201810-202207

LH

74220ARMREST ASSY, FRONT, LH

main74220-76020-A0iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

RICH CREAM,TRIM00

main74220-76020-A3iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

WHITE,TRIM01

main74220-76020-B0iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN202108-202207

WHITE ASH,TRIM1#,8#

main74220-76020-B1iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN201810-202108

CHATEAU,TRIM11

main74220-76020-B2iMZAA10,MZAH1#..EUR202010-202108

MD. GRAY,TRIM24

main74220-76020-C0iMZAA10,MZAH1#..EUR202010-202207

BLACK,TRIM20,21

main74220-76020-D1iMZAA10,MZAH1#201810-202207

RED,TRIM3#

main74220-76020-E1iMZAA10,MZAH1#201810-202207

OCHER,TRIM4#

main74220-76020-J0iMZAH15..ARL202010-202207

BLUE,TRIM02,23

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-76050supersedes 74231-76030iMZAH1#..LHD;MZAA10..LHD..(EUR,GCC,GEN)201810-202207

LUXURY PACKAGE

main74231-76060supersedes 74231-76040iMZAA10,MZAH1#..RHD201810-202207

LUXURY PACKAGE

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-76050supersedes 74232-76030iMZAH1#..LHD;MZAA10..LHD..(EUR,GCC,GEN)201810-202207

LUXURY PACKAGE

main74232-76060supersedes 74232-76040iMZAA10,MZAH1#..RHD201810-202207

LUXURY PACKAGE

74250ARMREST ASSY, REAR RH

main74250-76010-A0iMZAA10..CHI201812-202207

RICH CREAM,TRIM0#

main74250-76010-A3iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

WHITE,TRIM01

main74250-76010-B0iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN202108-202207

WHITE ASH,TRIM1#,8#

main74250-76010-B1iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN201810-202108

CHATEAU,TRIM11

main74250-76010-B2iMZAA10,MZAH1#..EUR202010-202108

MD. GRAY,TRIM24

main74250-76010-C0iMZAA10,MZAH1#..EUR202010-202207

BLACK,TRIM20,21

main74250-76010-D1iMZAA10,MZAH1#201810-202207

RED,TRIM3#

main74250-76010-E1iMZAA10,MZAH1#201810-202207

OCHER,TRIM4#

main74250-76010-J0iMZAH15..ARL202010-202207

BLUE,TRIM02,23

74260ARMREST ASSY, REAR LH

main74260-76010-A0iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

RICH CREAM,TRIM00

main74260-76010-A3iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

WHITE,TRIM01

main74260-76010-B0iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN202108-202207

WHITE ASH,TRIM1#,8#

main74260-76010-B1iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN201810-202108

CHATEAU,TRIM11

main74260-76010-B2iMZAA10,MZAH1#..EUR202010-202108

MD. GRAY,TRIM24

main74260-76010-C0iMZAA10,MZAH1#..EUR202010-202207

BLACK,TRIM20,21

main74260-76010-D1iMZAA10,MZAH1#201810-202207

RED,TRIM3#

main74260-76010-E1iMZAA10,MZAH1#201810-202207

OCHER,TRIM4#

main74260-76010-J0iMZAH15..EUR;MZAA10,MZAH10..ARL,EUR202010-202207

BLUE,TRIM02,23,25

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-76030supersedes 74271-76020iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

LUXURY PACKAGE

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-76030supersedes 74272-76020iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

LUXURY PACKAGE

9046705172

main90467-05172

10 parts on this diagram · 3 diagrams in section
