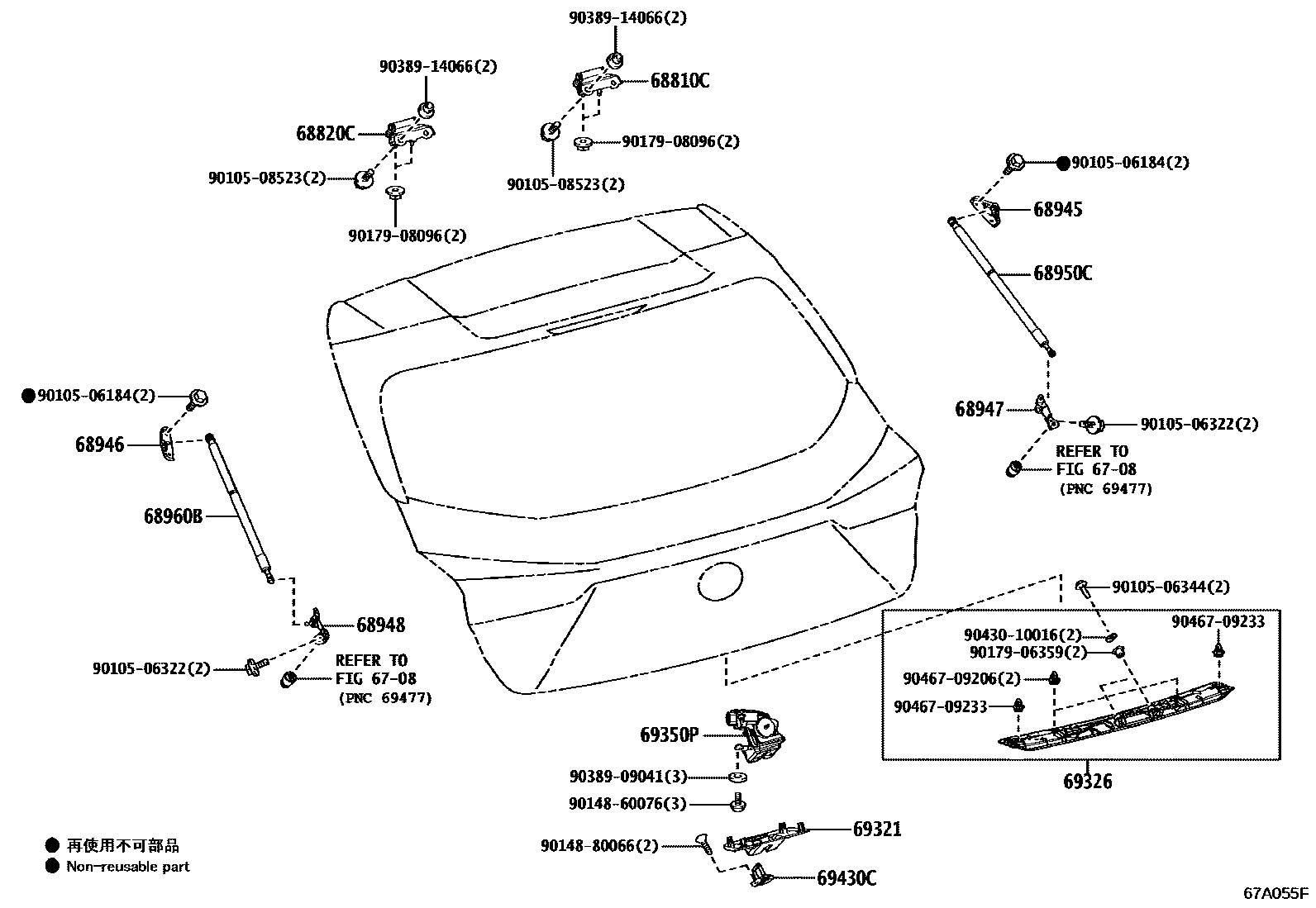

BACK DOOR LOCK & HANDLE
6708
68810CHINGE ASSY, BACK DOOR, RH
PAD T=1.0
PAD T=1.5
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.0
PAD T=1.5
PAD T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)
sub68945-76040
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)
sub68946-76040
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR),NOT APPLICABLE
68960BSTAY ASSY, BACK DOOR, LH
HANDS FREE POWER BACK DOOR-WITH,NOT APPLICABLE
69321COVER, BACK DOOR LOCK
69326PLATE, BACK DOOR OUTSIDE HANDLE
HANDS FREE POWER BACK DOOR-WITH&BACK MONITOR-WITH(GUIDE)
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9010506322
main90105-06322
9010506344
main90105-06344
9010508523
main90105-08523
9014860076
main90148-60076
9014880066
main90148-80066
9017906359
main90179-06359
9017908096
main90179-08096
9038909041
main90389-09041
9038914066
main90389-14066
9043010016
main90430-10016
9046709206
main90467-09206
9046709233
main90467-09233
26 parts on this diagram · 2 diagrams in section
