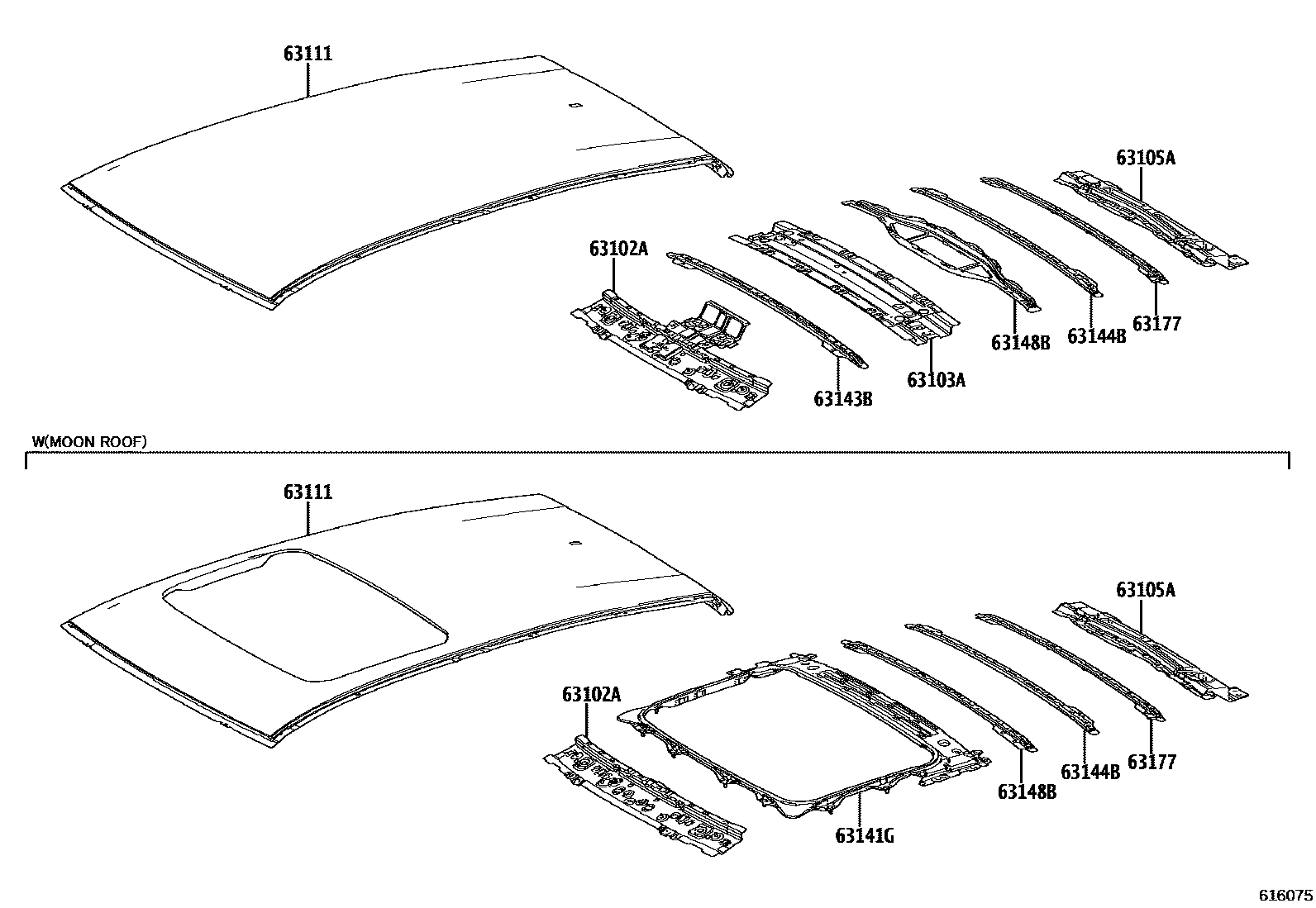

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-76904supersedes 63102-76903iMZAA10,MZAH1#..CHI201812-201910

MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITH(EMERGENCY CALL)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-76020iMZAA10,MZAH1#201810-202207

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-76020iMZAA10,MZAH1#201810-202207

63111PANEL, ROOF

main63111-76070supersedes 63111-76050iMZAA10,MZAH1#..CHI201910-202207

ROOF RAIL-WITH&MOON ROOF-WITH

main63111-76080supersedes 63111-76040iMZAA10,MZAH1#..GCC,GEN202108-202207

ROOF RAIL-WITH(BLACK PAINTED)&MOON ROOF-WITH

main63111-76090supersedes 63111-76030iMZAA10,MZAH1#..EUR201810-202207

ROOF RAIL-WITHOUT&MOON ROOF-WITH

main63111-76100supersedes 63111-76060iMZAA10,MZAH1#..LHD..EUR201810-202207

ROOF RAIL-WITHOUT&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63107-76010iMZAA10,MZAH1#..LHD..EUR201810-202207

MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-76020iMZAA10,MZAH1#201810-202207

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-76020iMZAA10,MZAH1#201810-202207

63148BREINFORCEMENT, ROOF PANEL SIDE

main63148-76030supersedes 63148-76020iMZAA10,MZAH1#..GCC,GEN202108-202207

ROOF RAIL-WITH(BLACK PAINTED)&MOON ROOF-WITH

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-76010iMZAA10,MZAH1#201810-202207
