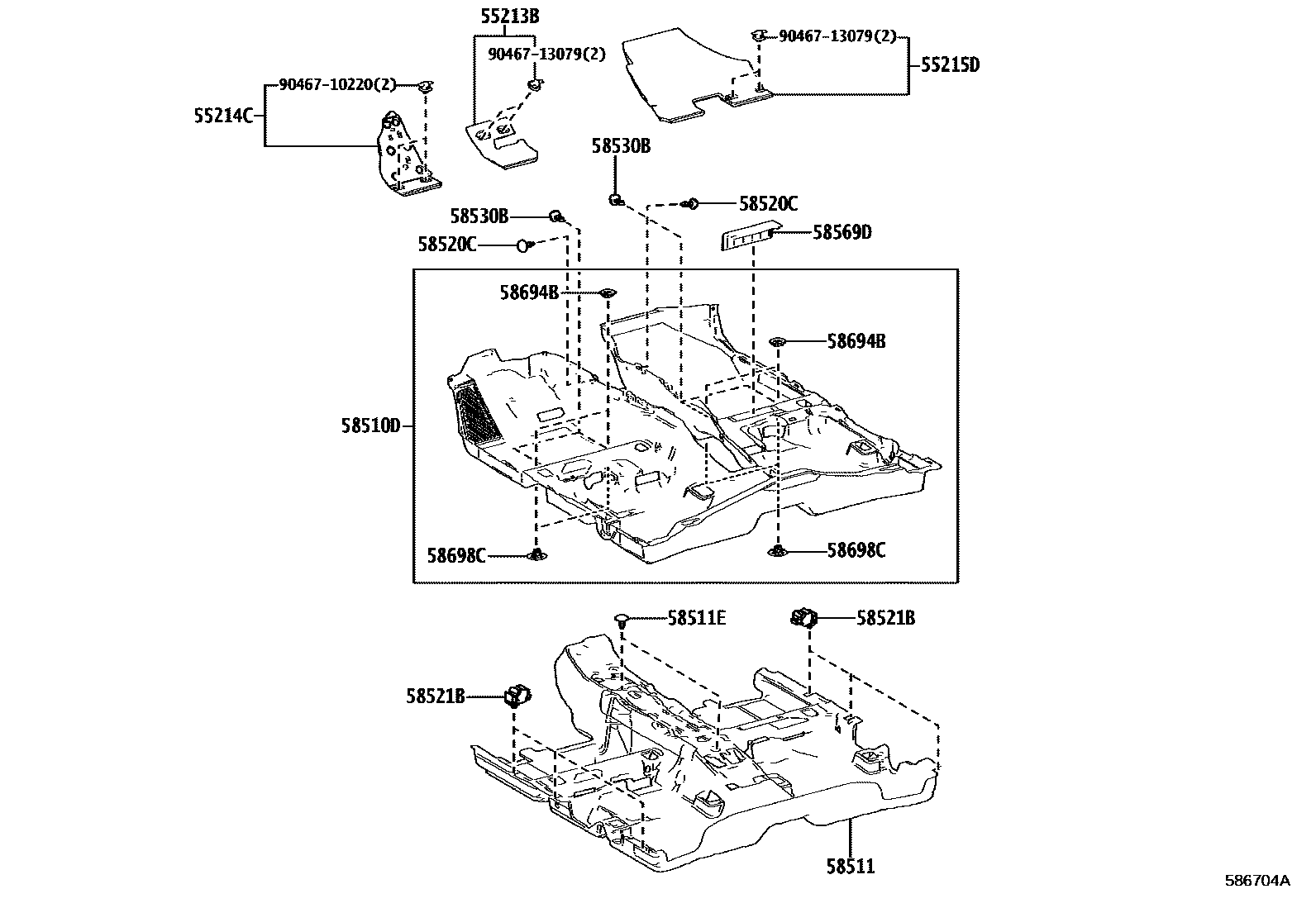

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
58511ECLIP(FOR FRONT FLOOR MAT)
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,1#,2#,3#,4#,8#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710220
main90467-10220
9046713079
main90467-13079
14 parts on this diagram · 4 diagrams in section
