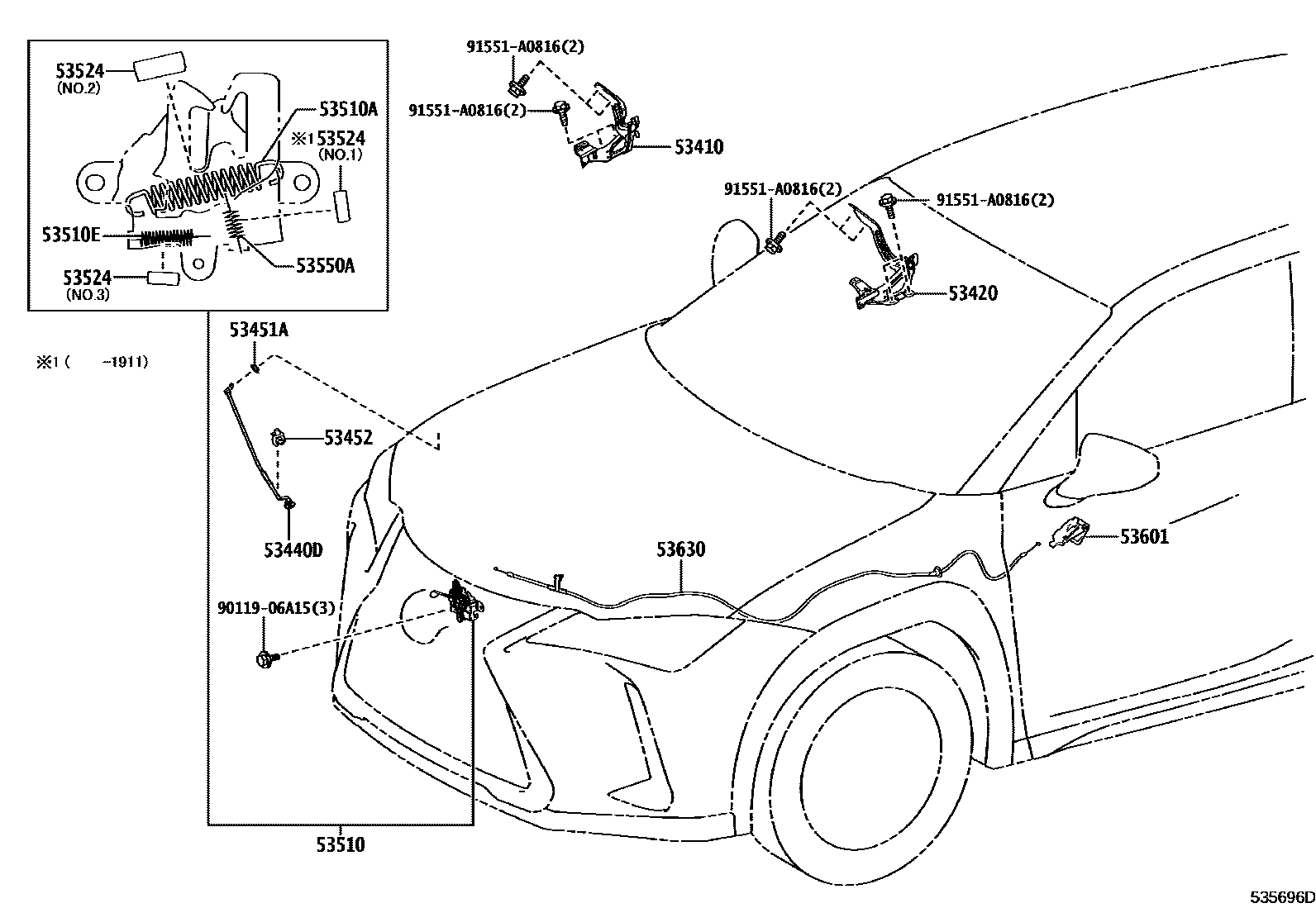

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
sub53440-76021
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-WITH(SIREN & *IS)
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=13
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53524DAMPER, HOOD LOCK SPRING
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.3:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,1#,2#,3#,4#,8#
53630CABLE ASSY, HOOD LOCK CONTROL
9011906A15
main90119-06A15
91551A0816
main91551-A0816
14 parts on this diagram · 2 diagrams in section
