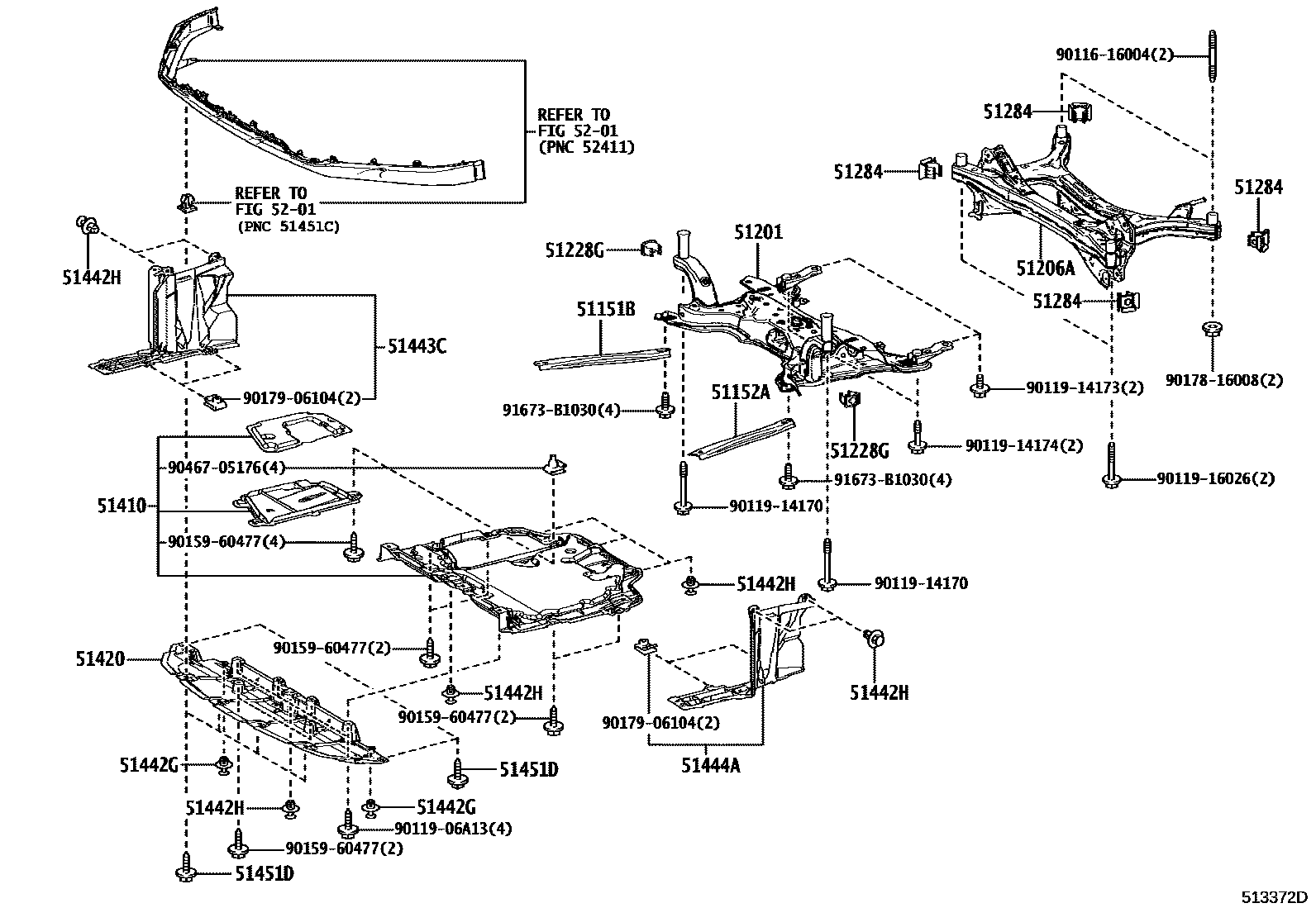

SUSPENSION CROSSMEMBER & UNDER COVER

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-10010iMZAA10,MZAH1#¥2,650201810-202207

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-10010iMZAA10,MZAH1#¥2,650201810-202207

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-76030iMZAA10,MZAH1#¥71,300201810-201902

sub51201-76031¥59,400

main51201-76031iMZAA10,MZAH1#¥59,400201903-202111

sub51201-76032¥54,000

main51201-76032iMZAA10,MZAH1#¥54,000202112-202207

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-76010iMZAA10,MZAH10¥52,800201810-202207

sub51206-76011¥48,000

main51206-76020iMZAH15¥57,600201811-202203

sub51206-76021¥57,600

main51206-76021iMZAH15¥57,600202204-202207

sub51206-76022¥57,600

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iMZAA10,MZAH1#¥220201810-202207

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMZAA10,MZAH1#¥340201810-202207

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-76070iMZAA10,MZAH1#¥21,200201810-202108

sub51410-76100¥12,900

main51410-76100iMZAA10,MZAH1#¥12,900202108-202207

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-76010iMZAA10,MZAH1#¥8,900201810-202207

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07214iMZAA10,MZAH1#¥70201810-202207

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-07220iMZAA10,MZAH1#¥80201810-202207

51443CCOVER, ENGINE UNDER, REAR RH

main51443-10020iMZAA10,MZAH1#¥3,160201810-202207

51444ACOVER, ENGINE UNDER, REAR LH

main51444-10020iMZAA10,MZAH1#¥3,160201810-202207

51451DSCREW, NO.1

main90159-60477iMZAA10,MZAH1#¥70201810-202207

5201

9011616004

main90116-16004¥610

9011906A13

main90119-06A13¥60

9011914170

main90119-14170¥490

9011914173

main90119-14173¥310

9011914174

main90119-14174¥360

9011916026

main90119-16026¥610

9015960477

main90159-60477¥70

9017816008

main90178-16008¥190

9017906104

main90179-06104¥70

9046705176

main90467-05176¥100

91673B1030

main91673-B1030¥120

25 parts on this diagram · 1 diagram in section
