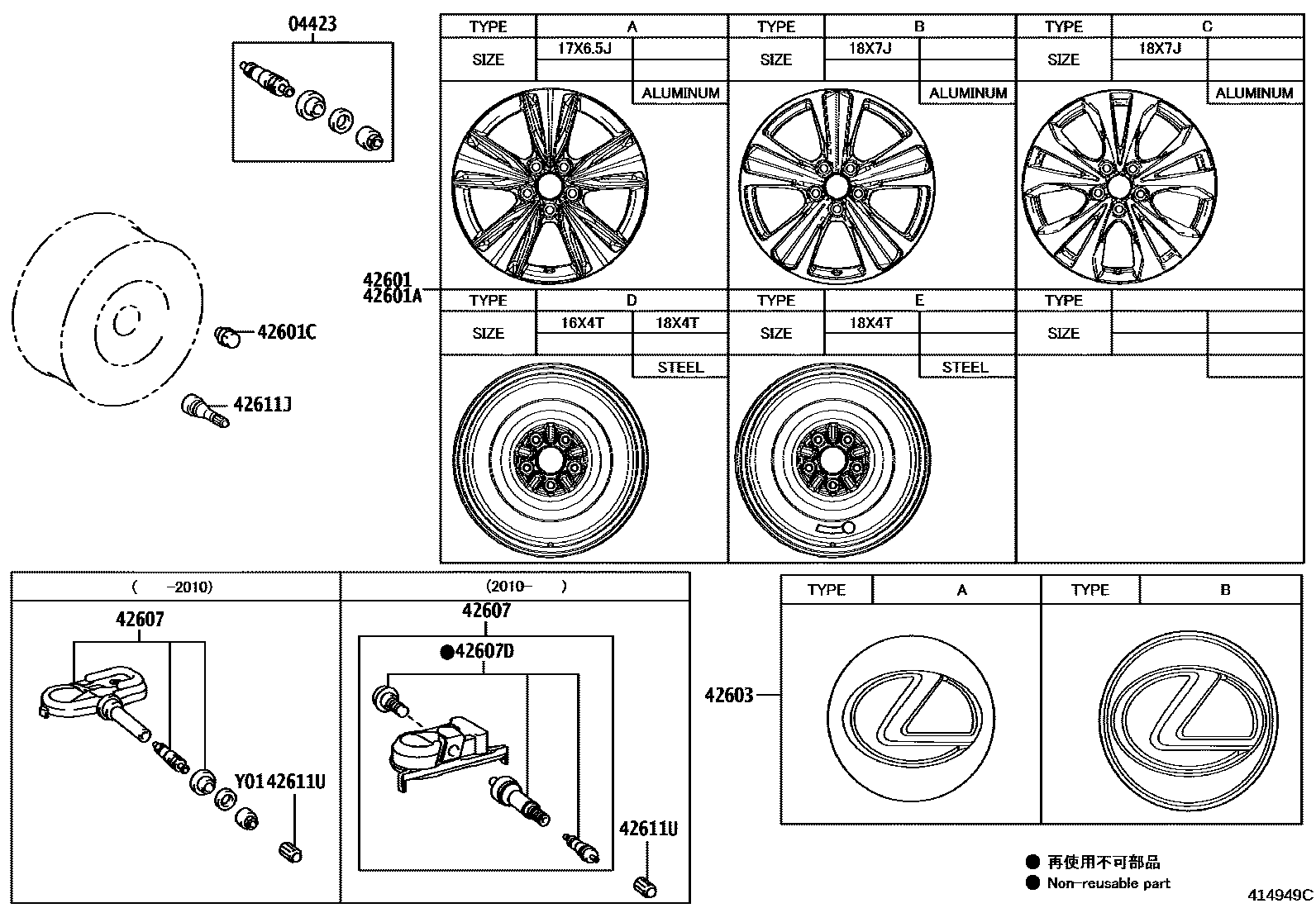

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
17X6.5J,TYPE A:REFER ILLUST.
17X6.5J,TYPE A:REFER ILLUST.
18X7J,BRAZIL SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE,TYPE B:REFER ILLUST.
18X7J,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE,TYPE B:REFER ILLUST.
18X7J,TYPE B:REFER ILLUST.
18X7J,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,SOUTH AFRICA SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER, DARK GRAY METALLIC,TYPE D:REFER ILLUST.
16X4T,HONG KONG SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER TIRE,TYPE D:REFER ILLUST.
16X4T,HONG KONG SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER, DARK GRAY METALLIC,TYPED:REFER ILLUST.
16X4T,SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
16X4T,TYPE D:REFER ILLUST.
16X4T,SOUTH AFRICA SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER TIRE,TYPE D:REFER ILLUST.
16X4T,BELGIUM SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
16X4T,GERMANY SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
16X4T,BULGARIA SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
16X4T,FRANCE SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
16X4T,*420&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
16X4T,CENTRAL EU SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
16X4T,OTHER EUROPE COUNTRIES&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
16X4T,ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE D:REFER ILLUST.
18X4T,SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,TAIWAN SPEC&SPARE TIRE-WITHOUT
sub42611-30F32
18X4T,HONG KONG SPEC&SPARE TIRE-WITHOUT
sub42611-30F32
18X4T,MALAYSIA SPEC&SPARE TIRE-WITHOUT
sub42611-30F32
18X4T,BRUNEI SPEC&SPARE TIRE-WITHOUT
sub42611-30F32
18X4T,SINGAPORE SPEC&SPARE TIRE-WITHOUT
sub42611-30F32
18X4T,INDONESIA SPEC&SPARE TIRE-WITHOUT
sub42611-30F32
18X4T,MACAU SPEC&SPARE TIRE-WITHOUT
sub42611-30F32
18X4T,U.A.E SPEC&TIRE & DISC WHEEL- 225/50RF18, SUMMER TIRE,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,RUSSIA SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,TAIWAN SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER TIRE,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,TAIWAN SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER, DARK GRAY METALLIC,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,ISRAEL SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,TURKEY SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,MALAYSIA SPEC,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,MALAYSIA SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE
sub42611-30F32
18X4T,MALAYSIA SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT
sub42611-30F32
18X4T,BRUNEI SPEC,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,BRUNEI SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE
sub42611-30F32
18X4T,BRUNEI SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT
sub42611-30F32
18X4T,SINGAPORE SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER TIRE,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,SINGAPORE SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER, DARK GRAY METALLIC,TYPED:REFER ILLUST.
sub42611-30F32
18X4T,MACAU SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER TIRE,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,MACAU SPEC&TIRE & DISC WHEEL-215/60R17, SUMMER, DARK GRAY METALLIC,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,KAZAKHSTAN SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE
sub42611-30F32
18X4T,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT
sub42611-30F32
18X4T,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT,TYPE D:REFER ILLUST.
sub42611-30F32
18X4T,THAILAND SPEC,TYPE D:REFER ILLUST.
18X4T,TYPE D:REFER ILLUST.
18X4T,REUNION SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
18X4T,MOROCCO SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE
18X4T,MOROCCO SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT
18X4T,MOROCCO SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
18X4T,RUSSIA SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
18X4T,ISRAEL SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
18X4T,TURKEY SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
18X4T,BRAZIL SPEC,TYPE D:REFER ILLUST.
18X4T,BRAZIL SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE
18X4T,BRAZIL SPEC&TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT
18X4T,MALAYSIA SPEC,TYPE D:REFER ILLUST.
18X4T,BRUNEI SPEC,TYPE D:REFER ILLUST.
18X4T,KAZAKHSTAN SPEC&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
18X4T,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE,TYPE D:REFER ILLUST.
18X4T,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT,TYPE D:REFER ILLUST.
18X4T,SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
18X4T,SPARE TIRE-WITHOUT
18X4T,THAILAND SPEC&SPARE TIRE-WITHOUT
18X4T,TAIWAN SPEC&SPARE TIRE-WITHOUT
18X4T,HONG KONG SPEC&SPARE TIRE-WITHOUT
18X4T,MALAYSIA SPEC&SPARE TIRE-WITHOUT
18X4T,BRUNEI SPEC&SPARE TIRE-WITHOUT
18X4T,SINGAPORE SPEC&SPARE TIRE-WITHOUT
18X4T,INDONESIA SPEC&SPARE TIRE-WITHOUT
18X4T,MACAU SPEC&SPARE TIRE-WITHOUT
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-215/60R17, SUMMER, DARK GRAY METALLIC,TYPE B:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-215/60R17,SUMMER,*GEC,DARK GRAY METALLIC,TYPE B:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
ISRAEL SPEC&SPARE TIRE-WITHOUT
TURKEY SPEC&SPARE TIRE-WITHOUT
KAZAKHSTAN SPEC&SPARE TIRE-WITHOUT
TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE
TIRE & DISC WHEEL-225/50RF18, SUMMER TIRE, F SPORT
SPARE TIRE-WITHOUT
TAIWAN SPEC&SPARE TIRE-WITHOUT
HONG KONG SPEC&SPARE TIRE-WITHOUT
MALAYSIA SPEC&SPARE TIRE-WITHOUT
BRUNEI SPEC&SPARE TIRE-WITHOUT
SINGAPORE SPEC&SPARE TIRE-WITHOUT
INDONESIA SPEC&SPARE TIRE-WITHOUT
MACAU SPEC&SPARE TIRE-WITHOUT
RUSSIA SPEC&SPARE TIRE-WITHOUT
U.A.E SPEC&TIRE & DISC WHEEL- 225/50RF18, SUMMER TIRE
42611UCAP, TIRE VALVE
9 parts on this diagram · 2 diagrams in section
