OIL COOLER & TUBE (HEV OR BEV OR FCEV)

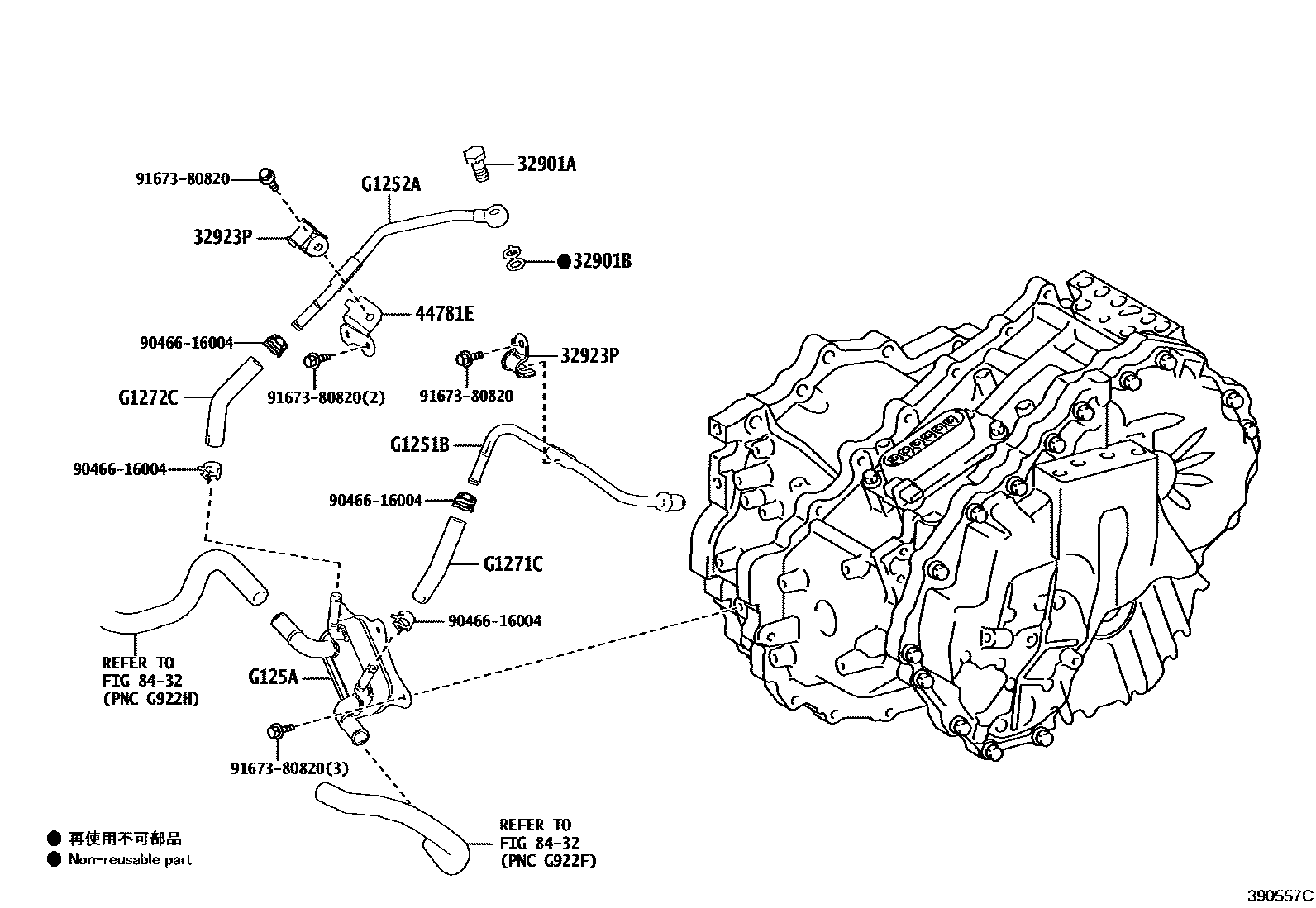

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i201811-202207

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i201811-202207

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i201811-202207

44781EBRACKET, HOSE

main44781-12070i201811-202207

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125112010i201811-202207

G1252APIPE, MOTOR COOLING, NO.2

mainG125212010i201811-202207

G125ACOOLER, MOTOR COOLING

mainG125A12010i201811-202207

G1271CHOSE, MOTOR COOLING, NO.1

mainG127112010i201811-202207

G1272CHOSE, MOTOR COOLING, NO.2

mainG127212010i201811-202207

9046616004

main90466-16004

9167380820

main91673-80820

12 parts on this diagram · 1 diagram in section
