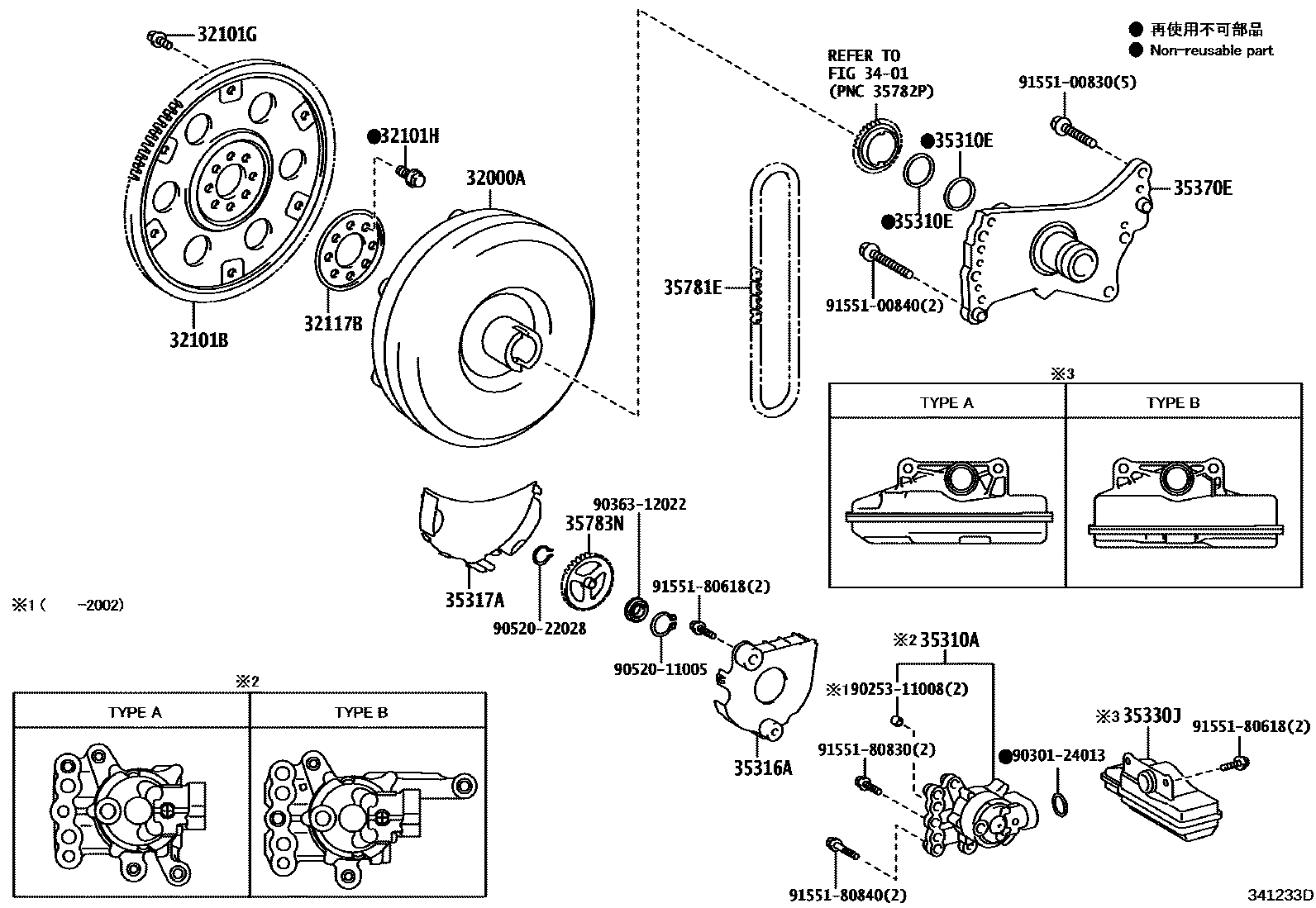

TORQUE CONVERTER, FRONT OIL PUMP(CVT)
32000ACONVERTER ASSY, TORQUE
AISIN AW:REFER 34-01
TOYOTA:REFER 34-01
32101BGEAR SUB-ASSY, DRIVE PLATE & RING
32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32117BSPACER, DRIVE PLATE, REAR
3401
35310APUMP ASSY, FRONT OIL
T/P A,TMC:REF.34-01
AISIN AW:REFER 34-01
T/P B,TMC:REF.34-01
35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
35330JSTRAINER ASSY, OIL
T/P A,TMC:REF.34-01
AISIN AW:REFER 34-01
T/P B,TMC:REF.34-01
35370ESHAFT ASSY, STATOR (CVT)
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
35781ECHAIN, TRANSMISSION DRIVE
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
TOYOTA:REFER 34-01
35783NSPROCKET, DRIVEN
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
9025311008
9030124013
9036312022
9052011005
9052022028
9155100830
9155100840
9155180618
9155180830
9155180840
24 parts on this diagram · 1 diagram in section
