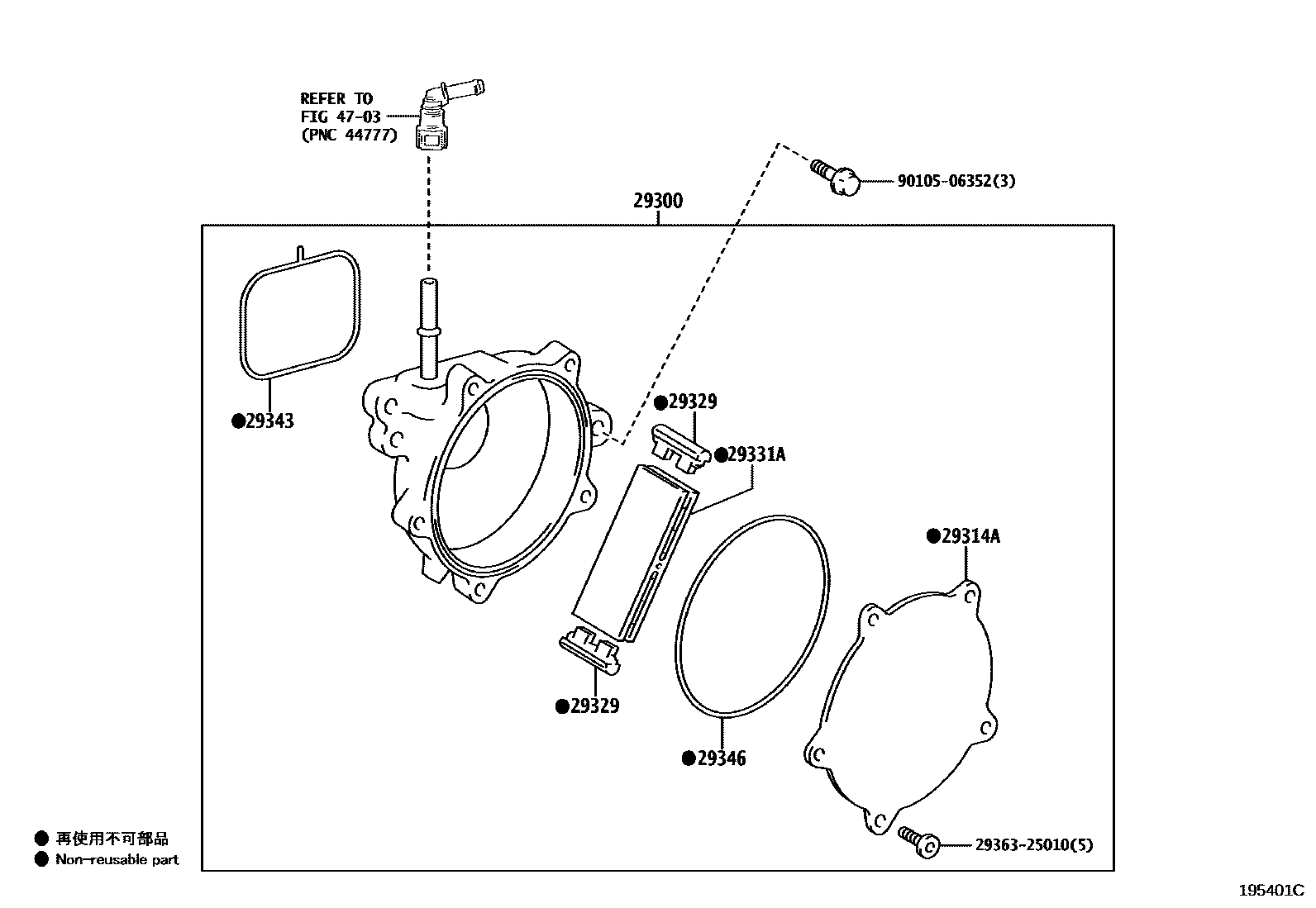

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-24011iM20AFKS..MZAA10201810-202207

29314ACOVER, END

main29314-25010iM20AFKS..MZAA10201810-202207

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20AFKS..MZAA10201810-202207

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MZAA10201810-202207

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20AFKS..MZAA10201810-202207

29346RING, O VACUUM PUMP COVER

main29346-25010iM20AFKS..MZAA10201810-202207

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 1 diagram in section
