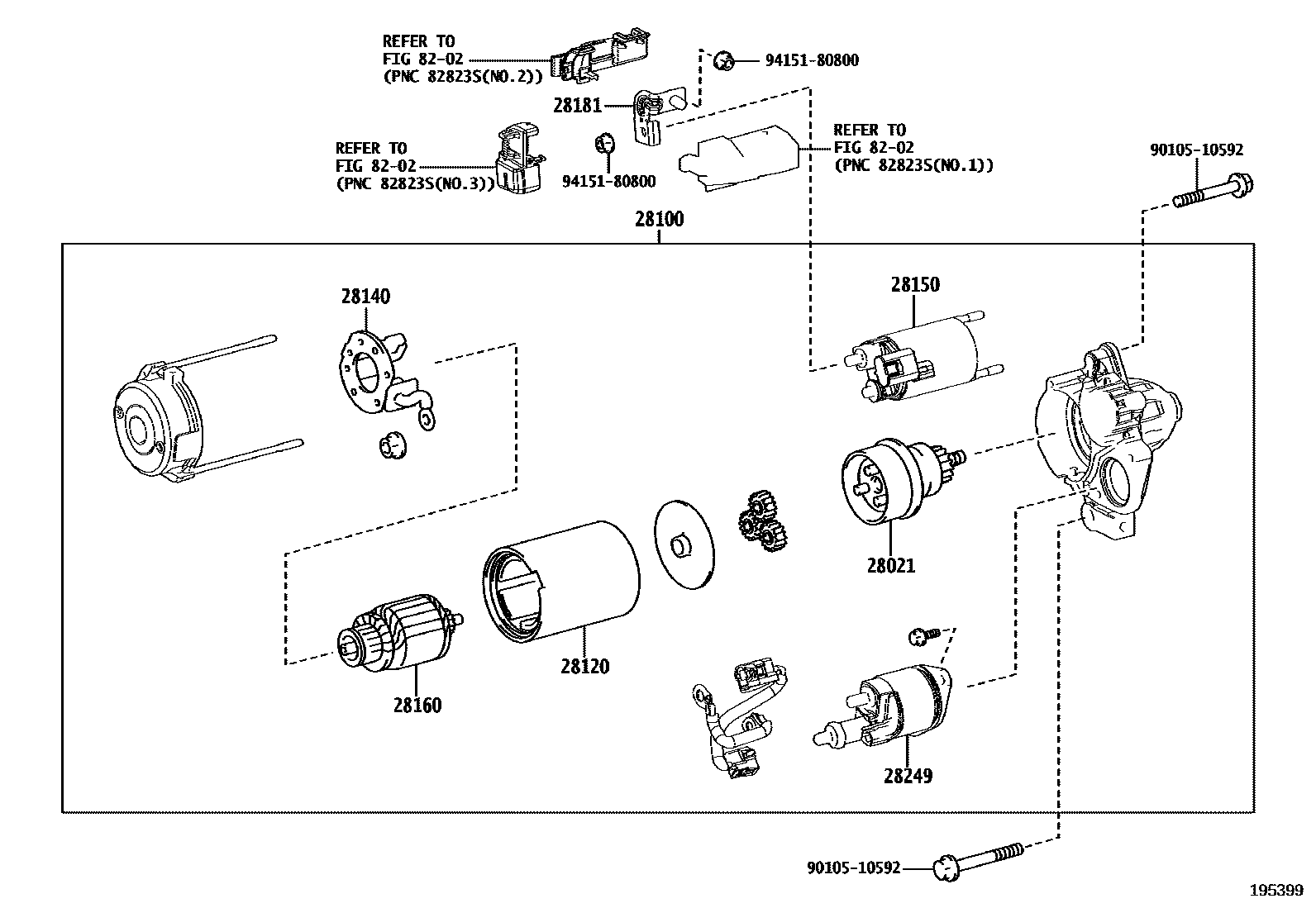

STARTER

0001 112V 1.7KW 0002 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MZAA10..GEN201810-202207

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28021-25070iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

28100STARTER ASSY

main28100-24120iM20AFKS..MZAA10..GEN201810-202207

12V 1.2KW,LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28100-25070iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-201910

12V 1.7KW

main28100-25080iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201911-202207

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-25070iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MZAA10..GEN201810-202207

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28140-21100iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

28150SWITCH ASSY, MAGNET STARTER

main28226-25070iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

28160ARMATURE ASSY, STARTER

main28160-21080iM20AFKS..MZAA10..GEN201810-202207

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28160-36110iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

28181TERMINAL, STARTER

main28181-24010iM20AFKS..MZAA10..GEN201810-202207

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28181-24020iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

8202

9010510592

main90105-10592

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
