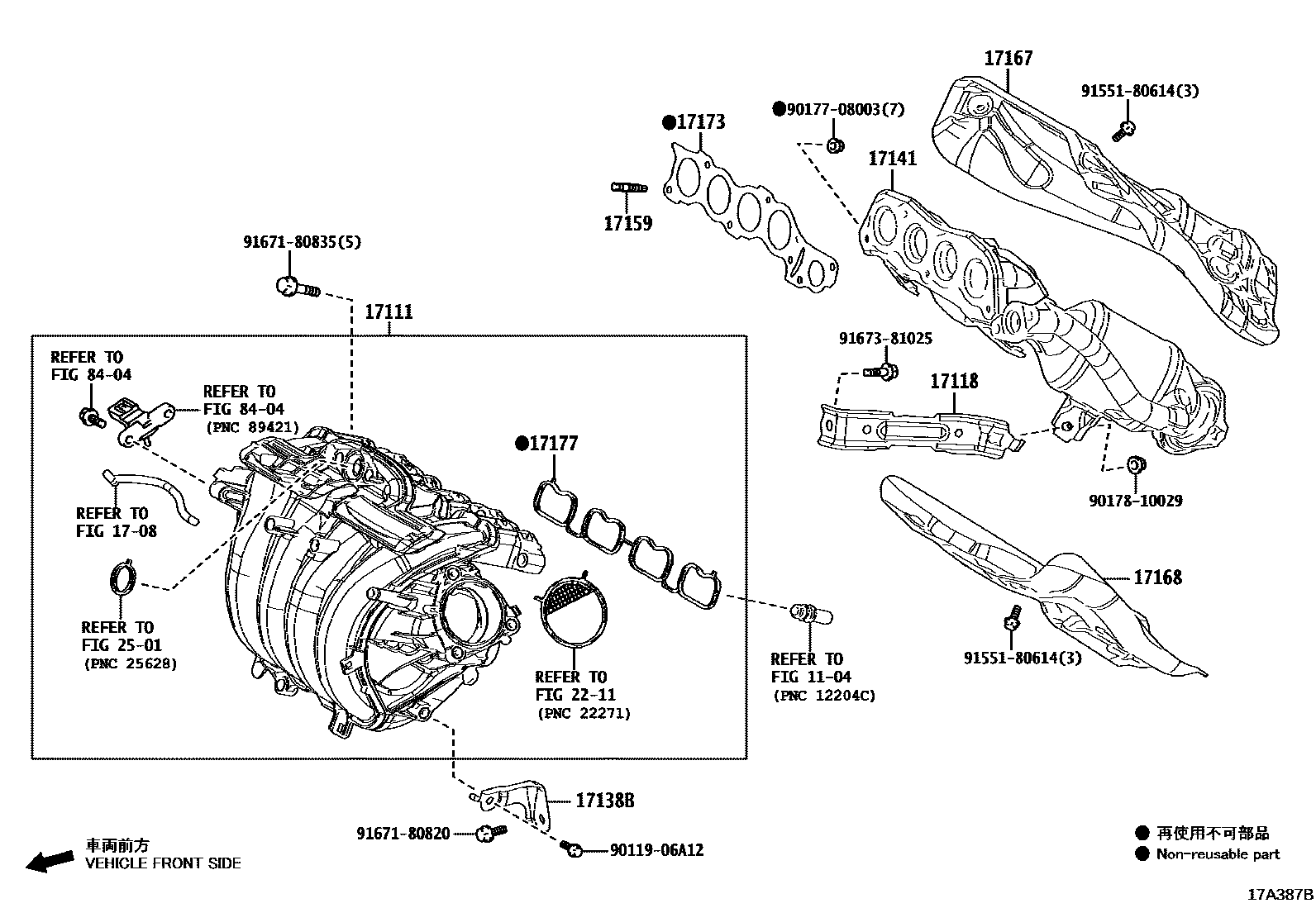

MANIFOLD

0001 1 0002 1

1104

1708

17111MANIFOLD, INTAKE

main17120-24010iM20AFKS..MZAA10201810-202207

main17120-24020iM20AFXS..MZAH1#201811-202207

17118STAY, MANIFOLD

main17118-24010iM20#..MZAA10,MZAH1#201810-202207

17138BSTAY, INTAKE MANIFOLD

main17138-24010iM20AFKS..MZAA10201810-202207

main17138-24020iM20AFXS..MZAH1#201811-202207

17141MANIFOLD, EXHAUST

main17141-24070iM20AFXS..MZAH1#..ARL,GCC,GEN201811-202207

*114=*688,RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24100iM20#..MZAA10,MZAH1#..CHI201812-202207

main17141-24120iM20AFKS..MZAA10..LHD..EUR201810-202207

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24150iM20AFKS..MZAA10..EUR201810-202207

main17141-24170iM20AFXS..MZAH1#..EUR201811-202207

*114=*588

main17141-24280iM20AFXS..MZAH10..LHD..GEN202108-202207

BRAZIL SPEC

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×7iM20#..MZAA10,MZAH1#201810-202207

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24030iM20#..MZAA10,MZAH1#..LHD..EUR201810-202207

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17167-24060iM20#..MZAA10,MZAH1#..EUR201810-202207

sub17167-24061

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24030iM20#..MZAA10,MZAH1#201810-201905

main17168-F2050iM20#..MZAA10,MZAH1#201905-202207

(L)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010iM20#..MZAA10,MZAH1#201810-202207

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020iM20#..MZAA10,MZAH1#201810-202207

2211

2501

8404

9011906A12

main90119-06A12

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

21 parts on this diagram · 2 diagrams in section
