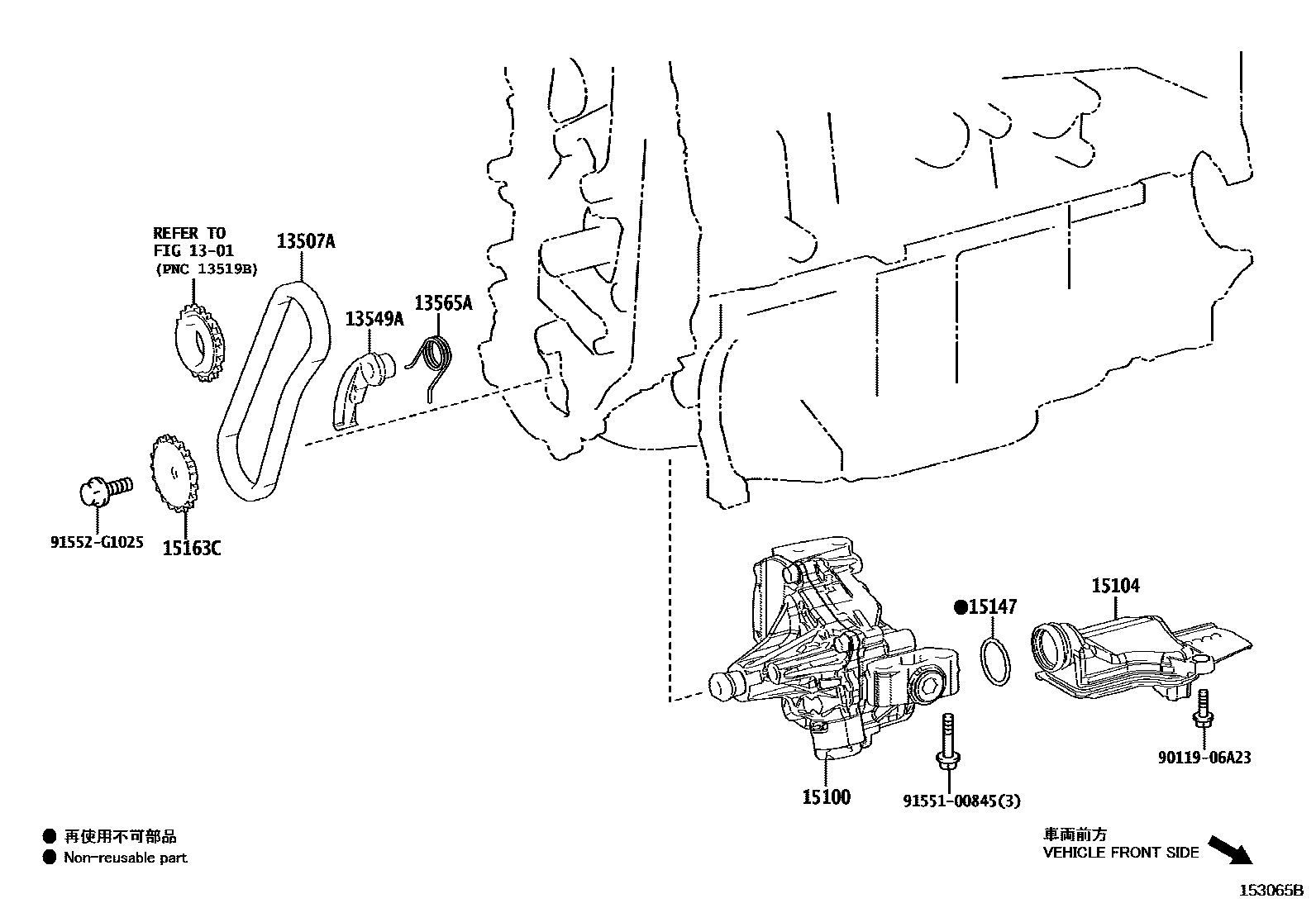

ENGINE OIL PUMP

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20#..MZAA10,MZAH1#201810-202207

13549APLATE, CHAIN TENSIONER

main13549-25020iM20#..MZAA10,MZAH1#201810-202207

13565ASPRING, CHAIN DAMPER

main13565-25010iM20#..MZAA10,MZAH1#201810-202207

15100PUMP ASSY, OIL

main15100-24020iM20#..MZAA10,MZAH1#201810-202207

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20#..MZAA10,MZAH1#201810-202207

15147GASKET, OIL STRAINER

main15147-25010iM20#..MZAA10,MZAH1#201810-202207

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20#..MZAA10,MZAH1#201810-202207

9011906A23

main90119-06A23

9155100845

main91551-00845

91552G1025

main91552-G1025

11 parts on this diagram · 1 diagram in section
