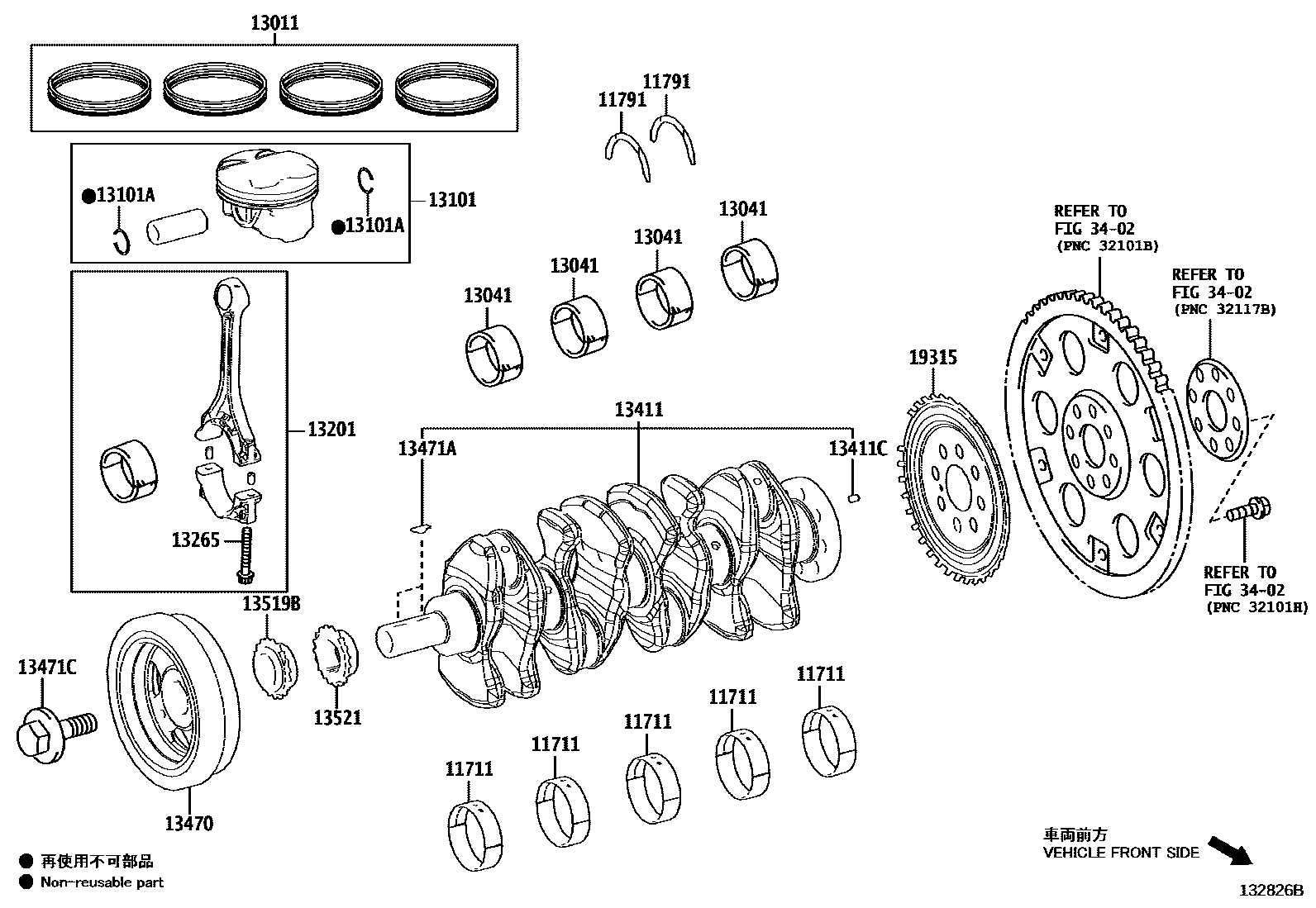

CRANKSHAFT & PISTON

0001 1 0002 1

11711BEARING, CRANKSHAFT

main11701-24010-01×5iM20#..MZAA10,MZAH1#201810-202207

MARK 1,REFER REPAIR MANUAL

sub11701-24011

main11701-24010-02×5iM20#..MZAA10,MZAH1#201810-202207

MARK 2,REFER REPAIR MANUAL

sub11701-24011

main11701-24010-03×5iM20#..MZAA10,MZAH1#201810-202207

MARK 3,REFER REPAIR MANUAL

sub11701-24011

main11701-24010-04×5iM20#..MZAA10,MZAH1#201810-202207

MARK 4,REFER REPAIR MANUAL

sub11701-24011

main11701-24010-05×5iM20#..MZAA10,MZAH1#201810-202207

MARK 5,REFER REPAIR MANUAL

sub11701-24011

main11701-24010-06×5iM20#..MZAA10,MZAH1#201810-202207

MARK 6,REFER REPAIR MANUAL

sub11701-24011

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2iM20#..MZAA10,MZAH1#201906-202207

STD

main11791-24030×2iM20#..MZAA10,MZAH1#201810-201905

STD

13011RING SET, PISTON

main13011-24040iM20#..MZAA10,MZAH1#201810-202207

STD

13041BEARING, CONNECTING ROD

main13041-24020-01×4iM20#..MZAA10,MZAH1#201810-202207

MARK 1,REFER REPAIR MANUAL

main13041-24020-02×4iM20#..MZAA10,MZAH1#201810-202207

MARK 2,REFER REPAIR MANUAL

main13041-24020-03×4iM20#..MZAA10,MZAH1#201810-202207

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-24040×4iM20AFKS..MZAA10201810-202207

STD

main13101-24050×4iM20AFXS..MZAH1#201811-202207

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8iM20#..MZAA10,MZAH1#201810-202207

13201ROD SUB-ASSY, CONNECTING

main13201-29825-A0×4iM20#..MZAA10,MZAH1#201810-201903

MARK A,REFER REPAIR MANUAL

main13201-29825-B0×4iM20#..MZAA10,MZAH1#201810-201903

MARK B,REFER REPAIR MANUAL

main13201-29825-C0×4iM20#..MZAA10,MZAH1#201810-201903

MARK C,REFER REPAIR MANUAL

main13201-29835-A0×4iM20#..MZAA10,MZAH1#201904-202207

MARK A,REFER REPAIR MANUAL

main13201-29835-B0×4iM20#..MZAA10,MZAH1#201904-202207

MARK B,REFER REPAIR MANUAL

main13201-29835-C0×4iM20#..MZAA10,MZAH1#201904-202207

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020×8iM20#..MZAA10,MZAH1#201810-202207

13411CRANKSHAFT

main13401-24010iM20AFKS..MZAA10201810-202207

main13401-24020iM20AFXS..MZAH1#201811-202207

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iM20#..MZAA10,MZAH1#201810-202207

13470PULLEY ASSY, CRANKSHAFT

main13470-24010iM20AFKS..MZAA10201810-202207

main13470-24020iM20AFXS..MZAH1#201811-202207

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2iM20#..MZAA10,MZAH1#201810-202207

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iM20#..MZAA10,MZAH1#201810-202207

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010iM20#..MZAA10,MZAH1#201810-202207

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010iM20#..MZAA10,MZAH1#201810-202207

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010iM20#..MZAA10,MZAH1#201810-202207

3402

17 parts on this diagram · 2 diagrams in section
