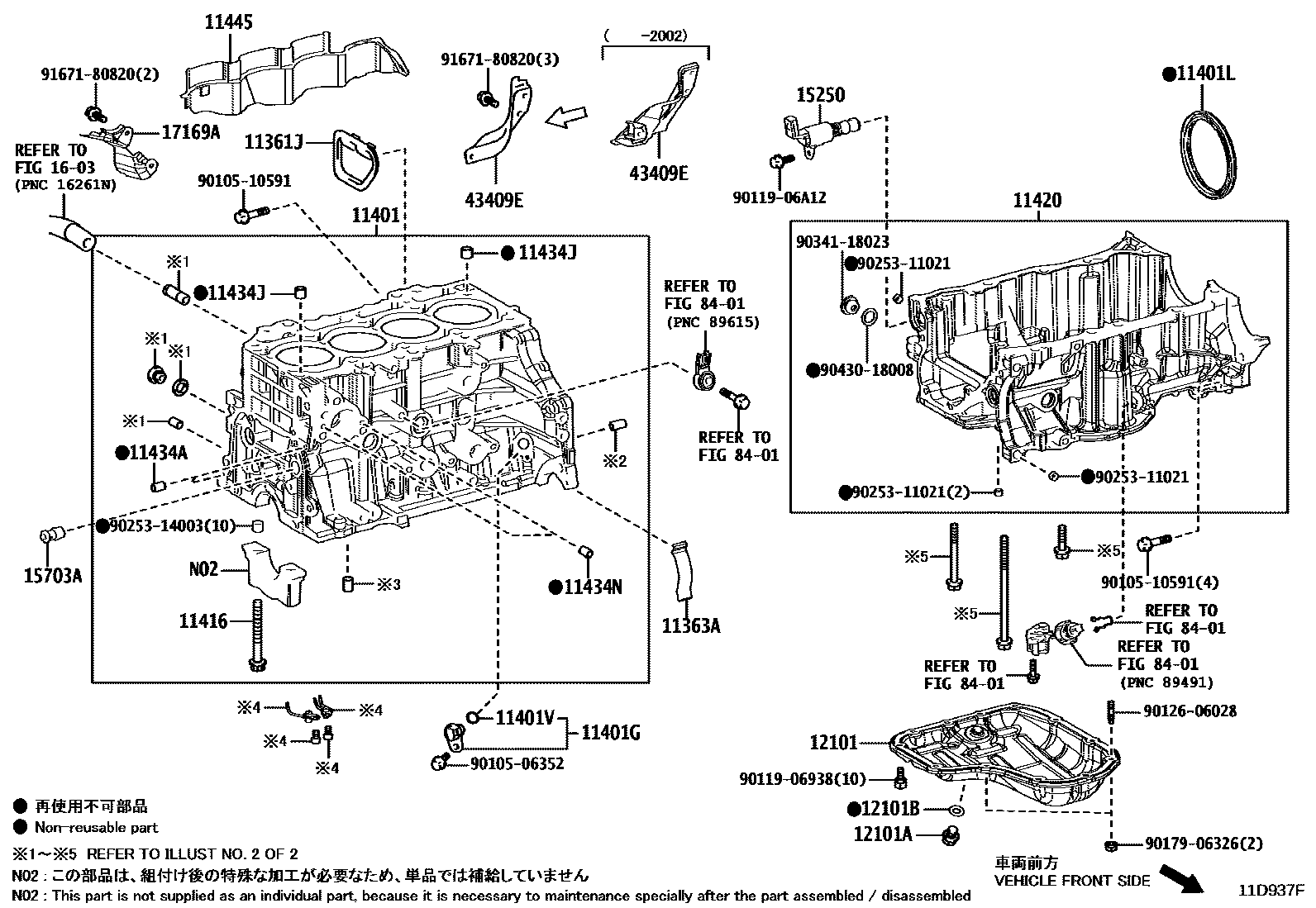

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-25010iM20#..MZAA10,MZAH1#201810-202207

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-33010iM20#..MZAA10,MZAH1#201810-202207

11401BLOCK SUB-ASSY, CYLINDER

main11410-29665iM20#..MZAA10,MZAH1#..GEN201810-202207

main11410-29675iM20AFKS..MZAA10..LHD..EUR;M20AFKS..MZAA10..ARL,CHI,GCC;M20AFXS..MZAH1#..ARL,CHI,EUR,GCC201810-202207

CHILE SPEC

main11410-29675iM20AFKS..MZAA10..LHD..EUR;M20AFKS..MZAA10..ARL,CHI,GCC;M20AFXS..MZAH1#..ARL,CHI,EUR,GCC201810-202207

MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main11410-29675iM20AFKS..MZAA10..LHD..EUR;M20AFKS..MZAA10..ARL,CHI,GCC;M20AFXS..MZAH1#..ARL,CHI,EUR,GCC201810-202207

BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 5

main11410-29675iM20AFKS..MZAA10..LHD..EUR;M20AFKS..MZAA10..ARL,CHI,GCC;M20AFXS..MZAH1#..ARL,CHI,EUR,GCC201810-202207

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5

main11410-29675iM20AFKS..MZAA10..LHD..EUR;M20AFKS..MZAA10..ARL,CHI,GCC;M20AFXS..MZAH1#..ARL,CHI,EUR,GCC201810-202207

INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main11410-29675iM20AFKS..MZAA10..LHD..EUR;M20AFKS..MZAA10..ARL,CHI,GCC;M20AFXS..MZAH1#..ARL,CHI,EUR,GCC201810-202207

GUATEMALA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main11410-29675iM20AFKS..MZAA10..LHD..EUR;M20AFKS..MZAA10..ARL,CHI,GCC;M20AFXS..MZAH1#..ARL,CHI,EUR,GCC201810-202207

PANAMA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main11410-29675iM20AFKS..MZAA10..RHD..GEN201810-202207

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main11410-29675iM20AFKS..MZAA10..RHD..GEN201810-202207

DOMINICA, PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5

11401GSENSOR, CRANK POSITION

main90919-05094iM20AFKS..MZAA10..ARL,CHI,EUR,GEN201810-202207

main90919-05095iM20AFXS..MZAH1#;M20AFKS..MZAA10..GCC201810-202207

EXHAUST EMISSION CONTROL-EURO 5

11401LSEAL, ENGINE REAR OIL

main90311-90010iM20#..MZAA10,MZAH1#201810-202207

11401VO-RING, CRANK POSITION SENSOR

main90301-11039iM20#..MZAA10,MZAH1#201810-202207

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02197iM20#..MZAA10,MZAH1#201810-202207

11420CRANKCASE ASSY, STIFFENING

main11420-24010iM20AFKS..MZAA10201810-202207

main11420-24020iM20AFXS..MZAH1#201811-202207

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003iM20#..MZAA10,MZAH1#201810-202207

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017iM20#..MZAA10,MZAH1#201810-202207

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003iM20#..MZAA10,MZAH1#201810-202207

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-24010iM20#..MZAA10,MZAH1#201810-202207

12101PAN SUB-ASSY, OIL

main12102-24010iM20AFKS..MZAA10201810-202207

main12102-24020iM20AFXS..MZAH1#201811-202207

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012iM20#..MZAA10,MZAH1#201810-202207

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031iM20#..MZAA10,MZAH1#201810-202207

15250VALVE ASSY, OIL PRESSURE CONTROL

main15250-25010iM20#..MZAA10,MZAH1#201810-202207

15703AVALVE SUB-ASSY, OIL NOZZLE

main15703-25011iM20#..MZAA10,MZAH1#201810-202207

1603

17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-24010iM20#..MZAA10,MZAH1#201810-202207

43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12100iMZAA10201810-201903

main43409-12101iMZAA10201904-202002

main43498-12120iMZAA10202003-202203

sub43498-12121

main43498-12121iMZAA10202204-202207

8401

9010506352

main90105-06352

9010510591

main90105-10591

9011906938

main90119-06938

9011906A12

main90119-06A12

9012606028

main90126-06028

9017906326

main90179-06326

9025311021

main90253-11021

9025314003

main90253-14003

9034118023

main90341-18023

9043018008

main90430-18008

9167180820

main91671-80820

32 parts on this diagram · 4 diagrams in section
