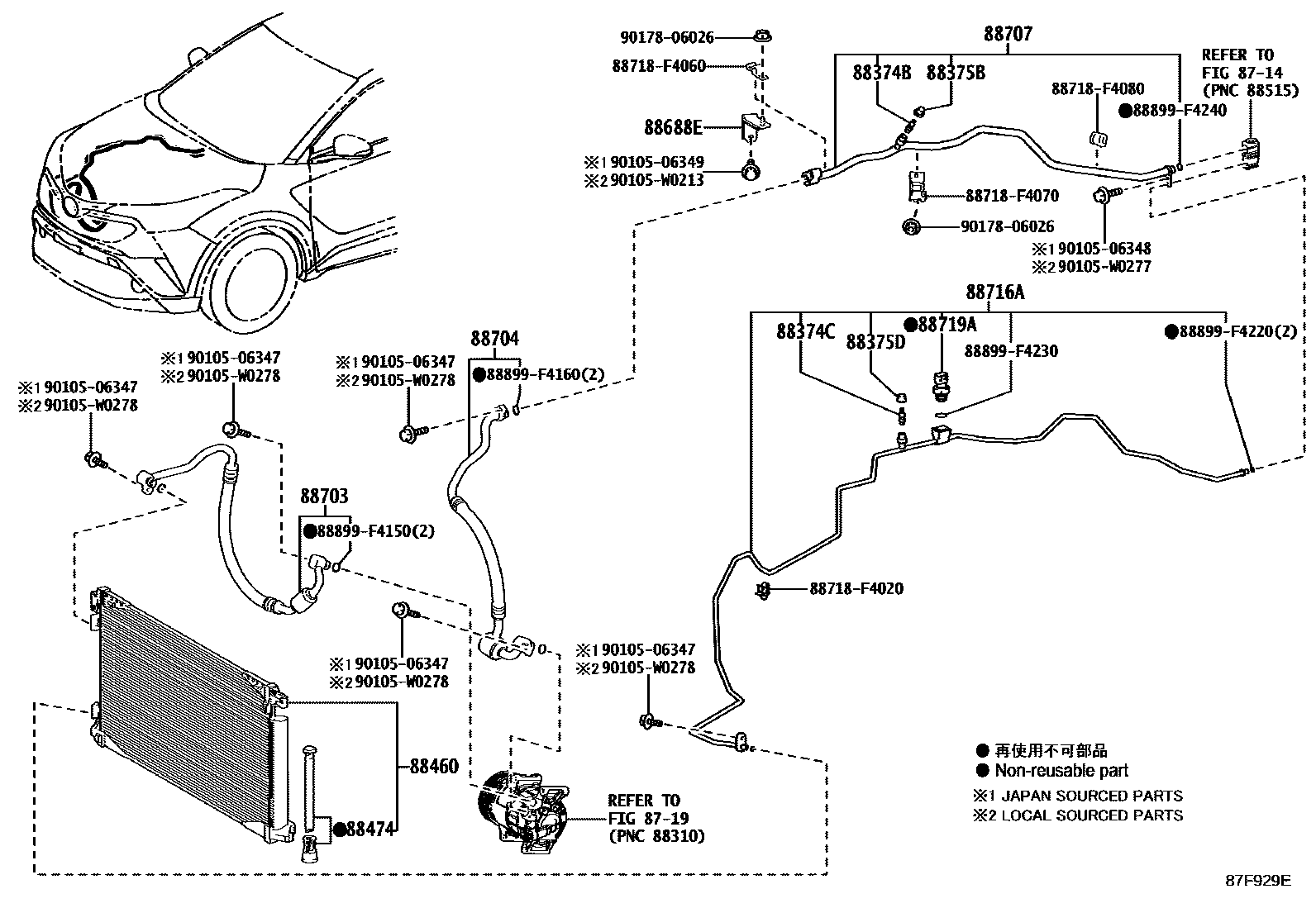

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMAXH10,ZYX1#201610-201909

main88899-F4170iNGX10,50,ZGX10201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

main88899-F4170iNGX10,50,ZGX10201610-201909

LIGHT GRADE

main88899-F4170iNGX50..E..EUR201909-202112

88374CVALVE, SERVICE, NO.2

main88374-30020iMAXH10,ZYX1#201610-201909

main88899-F4170iNGX10..6F..N..EUR201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

main88899-F4170iNGX10,50,ZGX10201610-201909

LIGHT GRADE

main88899-F4170iNGX50..E..EUR201909-202112

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iMAXH10,ZYX1#201610-201909

main88899-F4200iNGX10,50..EUR201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

main88899-F4200iNGX10..6F..N..EUR201610-201909

LIGHT GRADE

main88899-F4200iNGX50..E..EUR201909-202008

main88899-F4210iNGX10,50..LHD..EUR201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

main88899-F4210iNGX50..EUR201909-202112

main88899-F4210iNGX50,ZGX10..RUS201909

TAIWAN SPEC

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iMAXH10,ZYX1#201610-201909

main88899-F4180iNGX10..LHD..6F..N..EUR201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

main88899-F4180iNGX10,50..EUR201610-201909

LIGHT GRADE

main88899-F4180iNGX50..E..EUR201909-202008

main88899-F4190iNGX10,50,ZGX10..RUS201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

main88899-F4190iNGX10..LHD..CVT..(E,N)201909

TAIWAN SPEC

main88899-F4190iNGX50..EUR201909-202112

88460CONDENSER ASSY, COOLER

main88450-F4010iZGX10201610-202106

sub88450-F4011

main88450-F4011iZGX10202107

main88450-F4020iNGX10,50201610-202106

sub88450-F4021

main88450-F4021iNGX10..RUS202107-202112

main88460-F4040iZYX1#201610-201909

main884A0-02050iMAXH10201909

88474DRYER, COOLER

main88474-12020iZYX10201610-201909

main88899-F4140iNGX10..6F..N..EUR201610-201909

LIGHT GRADE

sub88899-F4400

main88899-F4400iNGX50..RUS;NGX50..E..EUR;NGX10,ZGX10..LHD..CVT201909-202112

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-02C90iMAXH10201909

main88688-F4010iZGX10201610-201909

main88688-F4020iNGX10..RUS201909-202112

main88688-F4020iNGX10..6F..N..EUR201610-201909

LIGHT GRADE

main88688-F4030iNGX50201610-201909

main88688-F4040iZYX1#201610-201909

88703HOSE SUB-ASSY, DISCHARGE

main88703-02D01iMAXH10201909

main88703-F4010iZGX10201610-201909

main88703-F4020iNGX10..RUS201909-202112

main88703-F4020iNGX10,50201610-201909

LIGHT GRADE

main88703-F4030iZYX1#201610-202107

main88703-F4031iZYX1#202108

88704HOSE SUB-ASSY, SUCTION

main88704-02D21iMAXH10201909

main88704-F4010iZGX10201610-201709

sub88704-F4011

main88704-F4011iZGX10201710-201909

main88704-F4020iNGX10,50201610-201909

LIGHT GRADE

main88704-F4020iNGX50;NGX10..EUR201909-202112

main88704-F4030iZYX1#201610-202107

main88704-F4031iZYX1#202108

88707PIPE SUB-ASSY, SUCTION

main88707-02510iMAXH10..LHD201909

main88707-02530iMAXH10..RHD201909

main88707-F4010iZYX10..RHD201610-201909

main88707-F4020iZYX10..LHD201610-201909

main88717-F4020iNGX10..LHD..EUR;NGX50..(G,K,N)..EUR201909-202008

main88717-F4020iNGX10,50..LHD..EUR201610-201909

LIGHT GRADE

main88717-F4020iNGX10,50..LHD..EUR201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

main88717-F4030iNGX10..RHD..6F..N201610-201909

LIGHT GRADE

main88717-F4030iNGX10..RHD201909-202009

main88717-F4040iNGX10,50..RUS201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

main88717-F4040iNGX50..RUS201909

TAIWAN SPEC

main88717-F4040iNGX10..RUS201909-202112

main88717-F4060iZGX10201610-201909

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02D71iMAXH10..LHD201909

main88710-02D91iMAXH10..RHD201909

main88710-F4070iZYX10..RHD201610-201909

main88710-F4071iZYX1#..RHD201909

main88710-F4080iZYX10..LHD201610-201909

main88710-F4081iZYX1#..LHD201909

main88716-F4040iNGX10..LHD..6F..N..EUR201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

main88716-F4040iNGX10,50..LHD..EUR201610-201909

LIGHT GRADE

main88716-F4040iNGX50..E..EUR201909-202008

main88716-F4050iNGX10,50..RHD201610-201909

LIGHT GRADE

main88716-F4050iNGX10..RHD201909-202009

main88716-F4060iNGX10,50..RUS201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT

main88716-F4060iNGX50..RUS201909

TAIWAN SPEC

main88716-F4060iNGX10..RUS201909-202112

main88716-F4080iZGX10201610-201909

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMAXH10,ZYX1#201909

main88719-47010iZYX10201610-201909

main88719-F4010iNGX10..LHD..6F..N..EUR201610-201909

EUROPE REFRIGERANT CORRESPONDENCE-WITHOUT&LIGHT GRADE

main88719-F4010iNGX50..E..EUR201909-202112

main88719-F4010iNGX10,50,ZGX10201610-201909

LIGHT GRADE

88718F4020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4020

88718F4060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4060

88718F4070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4070

88718F4080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4080

88899F4150COVER, EVAPORATOR

main88899-F4150

88899F4160COVER, EVAPORATOR

main88899-F4160

88899F4220COVER, EVAPORATOR

main88899-F4220

88899F4230COVER, EVAPORATOR

main88899-F4230

88899F4240COVER, EVAPORATOR

main88899-F4240

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

90105W0213

main90105-W0213

90105W0277

main90105-W0277

90105W0278

main90105-W0278

9017806026

main90178-06026

30 parts on this diagram · 7 diagrams in section
