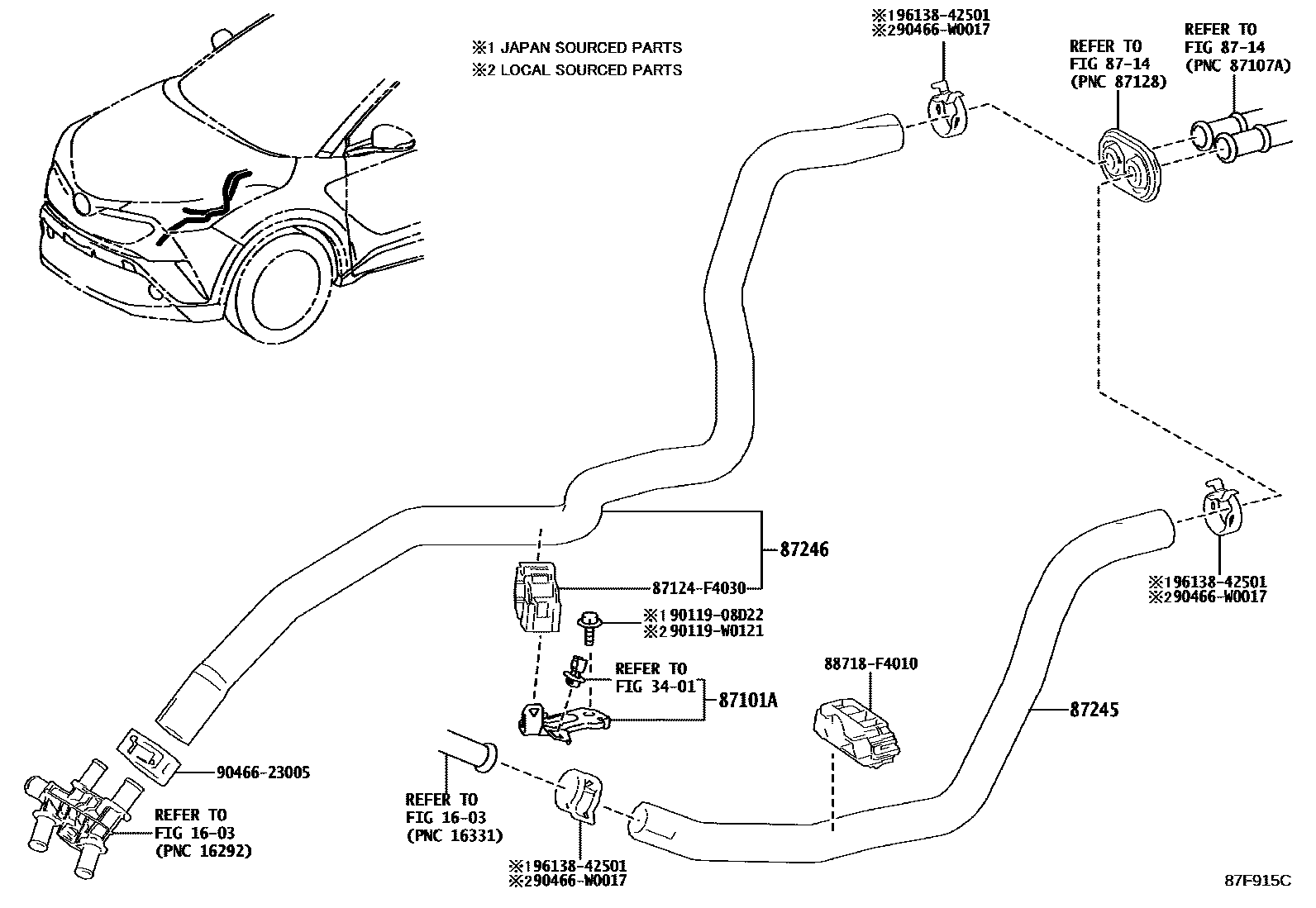

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1603

3401

87101ABRACKET SUB-ASSY, HEATER NO.1

main87101-12150iNGX10,50..CVT¥0201610-201909

main87121-F4010iNGX10..6F201610-202112

8714

87245HOSE, HEATER WATER, INLET

main87245-F4020iNGX50;NGX10..EUR201610-202112

main87245-F4030iZYX10201610-201909

main87245-F4050iZGX10201610-201909

87246HOSE, HEATER WATER, OUTLET

main87209-F4020iNGX10..6F201610-202112

main87209-F4030iNGX10,50..CVT201610-201909

main87245-F4010iZGX10201610-201802

main87245-F4011iZGX10201802-201909

main87245-F4040iZYX10201610-201909

87124F4030CLAMP, HEATER

main87124-F4030

88718F4010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4010

9011908D22

main90119-08D22¥80

90119W0121

main90119-W0121

9046623005

main90466-23005¥220

90466W0017

main90466-W0017

9613842501

main96138-42501¥180

13 parts on this diagram · 5 diagrams in section
