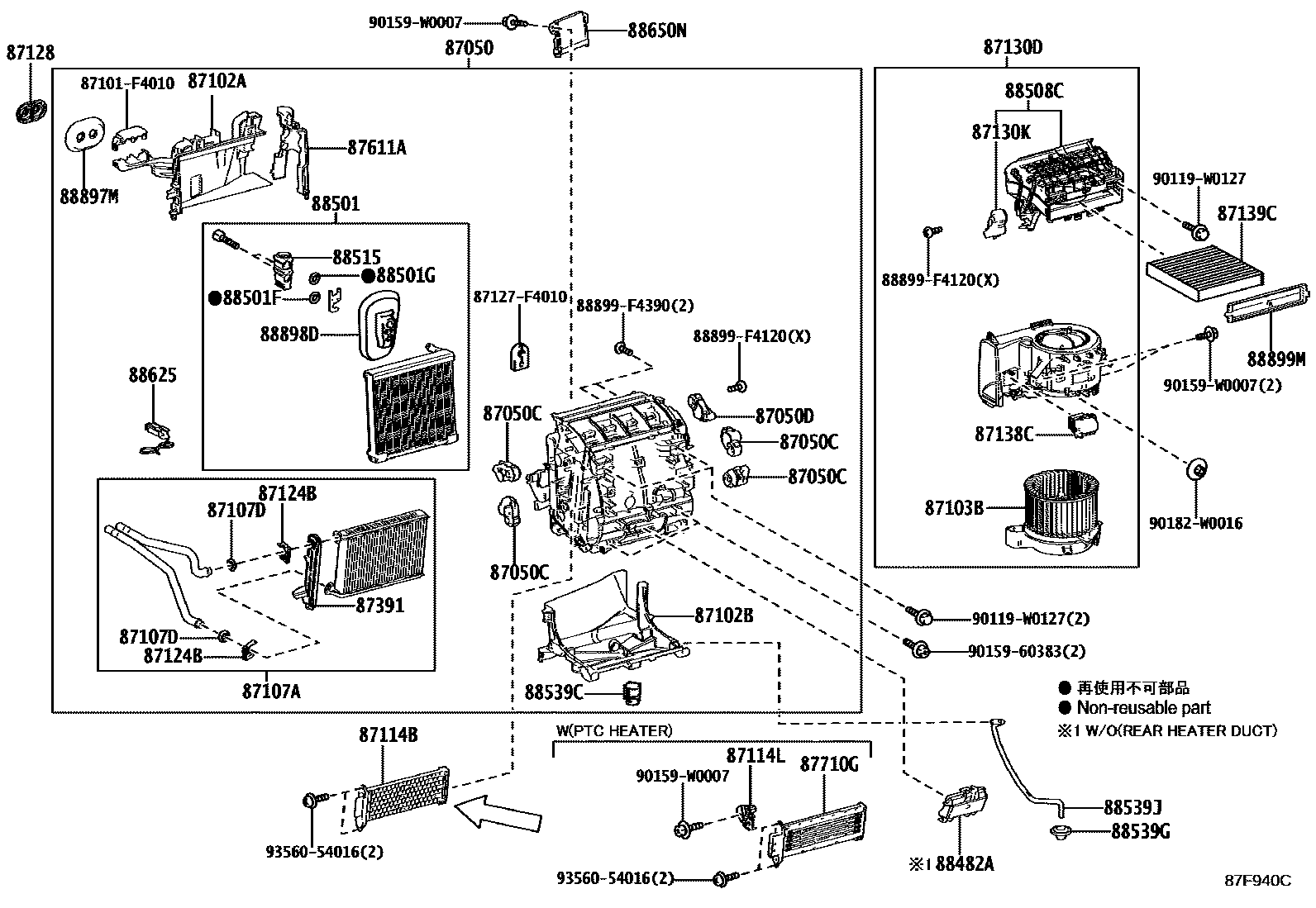

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO A/C(W/O(WINDSHIELD DECIE0002 1AUTO A/C(W(WINDSHIELD DECIER)0003 1AUTO A/C(W/O(WINDSHIELD DECIE0004 1AUTO A/C(W(WINDSHIELD DECIER)0005 1AUTO AIR CONDITIONER 0006 1MANUAL AIR CONDITIONER 0007 1AUTO AIR CONDITIONER 0008 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-F4130iMAXH10,ZYX1#..RHD201909

main87050-F4140iMAXH10,ZYX1#..LHD201909

main87110-F4010supersedes 87110-F4030iNGX50,ZGX10..RUS201909

COLD AREA SPEC

main87110-F4020supersedes 87110-F4040iNGX10..LHD..D..EUR201610-201909

SUB COLD AREA SPEC

main87110-F4030iNGX10,50..LHD..EUR201909

main87110-F4050iNGX10,50..RHD..(E,G,N)201610-201909

main87110-F4060iNGX10..RHD..D201610-201909

main87050-0ZE30supersedes 87050-F4140iZYX10..LHD..(E,G,N)201909

PERU SPEC

main87050-F4200iZYX10..RHD201909

HONG KONG, MACAU SPEC

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4010iMAXH10,ZYX1#201909

main87106-F4040×4iNGX10,50,ZGX10..E,G,N201610-201909

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-F4050iNGX10..EUR;NGX50,ZGX10201909

87102ACASE SUB-ASSY, RADIATOR

main87102-F4030iNGX50,ZGX10;NGX10..LHD..EUR201909

main87102-F4040iNGX10..RHD201909-202009

87102BCASE SUB-ASSY, RADIATOR, NO.2

main87102-F4010supersedes 87102-F4050iNGX10,50,ZGX10..RUS201610-201909

SUB COLD AREA SPEC

main87102-F4020iNGX10,50..RHD201610-201909

main87102-F4050iNGX10,50..LHD..EUR201909

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-F4010iZYX10..RHD201610-201909

main87103-F4020iMAXH10,ZYX1#..LHD201909

main87103-F4030iNGX10,50..LHD..EUR201909

main87103-F4040iNGX10,50..RHD201610-201909

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87050-F4030iNGX50,ZGX10;NGX10..LHD..EUR201909

main87050-F4040iNGX10,50..RHD201610-201909

main87107-F4010iMAXH10,ZYX1#..RHD201909

main87107-F4020iZYX10..LHD201610-201909

87107DRING, O (FOR HEATER RADIATOR UNIT)

main88899-F4090×2iNGX10,50,ZGX10201610-201909

ID=15.47,OD=22.27

87114BCOVER, HEATER

main87114-F4010iZGX10201610-201909

WITHOUT(COLD AREA SPEC)

main87114-F4060iMAXH10,ZYX1#201909

87114LCOVER, HEATER, NO.2

main87235-F4010iNGX10,ZGX10..RUS201610-201909

SUB COLD AREA SPEC

main87114-F4050iMAXH10,ZYX1#..LHD201909

COLD AREA SPEC

87124BCLAMP, HEATER

main87124-F4010iZYX10201610-201909

main87124-F4040×2iNGX10..RUS201909-202112

87128GROMMET, HEATER

main87128-28010iNGX10,50,ZGX10,ZYX10201610-201909

87130DBLOWER ASSY

main87130-F4010iMAXH10,ZYX1#..RHD201909

main87130-F4020iZYX10..LHD201610-201909

main87130-F4030supersedes 87130-F4040iNGX10..RUS201909-202112

main87130-F4040iNGX10,50..LHD..EUR201909

main87130-F4050iNGX10,50..RHD201610-201909

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-F4020iMAXH10,ZYX1#..RHD201909

main87106-F4030iMAXH10,ZYX1#..LHD201909

main87106-F4050iNGX10..RUS201909-202112

87138CRESISTOR, BLOWER

main87138-F4010iNGX10..RUS201909-202112

87139CFILTER, CLEAN AIR

main87139-58010iMAXH10,ZYX1#201909

DEODORANT FILTER

main87139-F4010iNGX10..RUS201909-202112

POLLEN FILTER,OE PART

main87139-F4020iMAXH10,ZYX1#201909

POLLEN FILTER,OE PART

87391COVER, BLOWER MOTOR

main87391-F4010iNGX10..EUR;NGX50,ZGX10201909

87611ACASE, HEAT EXCHANGER

main87611-F4010iNGX10..RUS201909-202112

main87611-F4020iNGX10,50..RHD201610-201909

87710GQUICK HEATER ASSY

main87710-F4010iNGX10..RUS201909-202112

main87710-F4030iMAXH10,ZYX1#..LHD201909

COLD AREA SPEC

88482ACOVER

main87114-F4031iNGX10,50..EUR201610-201909

WITHOUT(COLD AREA SPEC)

main87114-F4070iMAXH10,ZYX1#201909

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02680iZYX10201712-201811

main88501-F4020iNGX10..RUS201909-202112

main88501-F4100iZYX10201610-201711

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main88899-F4110iNGX10..RUS201909-202112

ID=10.82,OD=14.46

main90099-14120iZYX10..LHD..(E,G,N)201909

ID=10.8,OD=15.6,MOROCCO(HV) SPEC

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main88899-F4100iNGX10..EUR;NGX50,ZGX10201909

ID=14,OD=17.64

main90099-14121iZYX10..LHD..(E,G,N)201909

ID=13.4,OD=18.2,MOROCCO(HV) SPEC

88508CFILTER SUB-ASSY, AIR

main88508-F4010supersedes 88508-F4020iNGX10,50,ZGX10..RUS201610-201909

COLD AREA SPEC

main88508-F4020iNGX10,50..LHD..EUR201909

main88508-F4030iNGX10..RHD201909-202009

88515VALVE, COOLER EXPANSION

main88515-02770iMAXH10,ZYX1#201909

main88515-F4010iZYX10201610-201711

main88515-F4020iNGX10,50,ZGX10201610-201909

main88515-02560iZYX10..RHD201909

PERU SPEC

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88899-10110iZYX10..LHD201909

PERU SPEC

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iNGX10..RUS201909-202112

88539JHOSE, DRAIN COOLER

main88539-F4010iNGX10..RUS201909-202112

main88539-F4020iNGX10..RHD201909-202009

main88539-F4030iZYX10..RHD201610-201909

main88539-F4040iMAXH10,ZYX1#..LHD201909

88625THERMISTOR, COOLER, NO.1

main88620-F4010iMAXH10,ZYX1#201909

main88898-F4010iNGX10..EUR;NGX50,ZGX10201909

main88620-02210iZYX10..RHD201909

PERU SPEC

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-F4022iNGX50..K,N;ZGX10..G,K,N;NGX50..G..RUS;NGX10..(K,N)..EUR201909

main88650-F4040iNGX10..D201610-201707

LIGHT GRADE

main88650-F4041iNGX10..D201708-201909

LIGHT GRADE

main88650-F4050iNGX10,50,ZGX10..G,N201610-201707

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88650-F4051supersedes 88650-F4061iNGX10,50,ZGX10..G,N201708-201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88650-F4052iNGX10..E..RUS201909-202112

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88650-F4090supersedes 88650-F4030iZYX10..G,N201610-201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88650-F4190iMAXH10,ZYX1#..E,G201909-202010

main88650-F4191iMAXH10,ZYX1#..E,G202010-202206

main88650-F4192iMAXH10,ZYX1#..E,G202207

main88650-F4210iMAXH10,ZYX1#..K,N201909-202010

main88650-F4211iMAXH10,ZYX1#..K,N202010-202206

main88650-F4212iMAXH10,ZYX1#..K,N202207

main88650-F4180iMAXH10,ZYX1#..LHD..(K,N)201909-202010

COLD AREA SPEC

main88650-F4181iMAXH10,ZYX1#..LHD..(K,N)202010-202206

SUB COLD AREA SPEC

main88650-F4182iMAXH10,ZYX1#..LHD..(K,N)202207

COLD AREA SPEC

88897MGROMMET (FOR HEATER PIPE)

main87128-F4010iMAXH10,ZYX1#201909

main87128-F4020iNGX10,50,ZGX10201610-201909

88898DGROMMET

main87128-F4030iNGX10..RUS201909-202112

main88899-F4040iMAXH10,ZYX1#201909

88899MPLATE, COVER(FOR AIR FILTER)

main88548-F4011iNGX10..RUS201909-202112

main88899-F4010iZYX10201610-201708

main88899-F4011iZYX10201709-201909

87101F4010BRACKET SUB-ASSY, VISCOUS HEATER NO.1

main87101-F4010

87127F4010PACKING, HEATER AIR DAMPER

main87127-F4010

88899F4120COVER, EVAPORATOR

main88899-F4120

88899F4390COVER, EVAPORATOR

main88899-F4390

90119W0127

main90119-W0127

9015960383

main90159-60383

90159W0007

main90159-W0007

90182W0016

main90182-W0016

9356054016

main93560-54016

42 parts on this diagram · 8 diagrams in section
