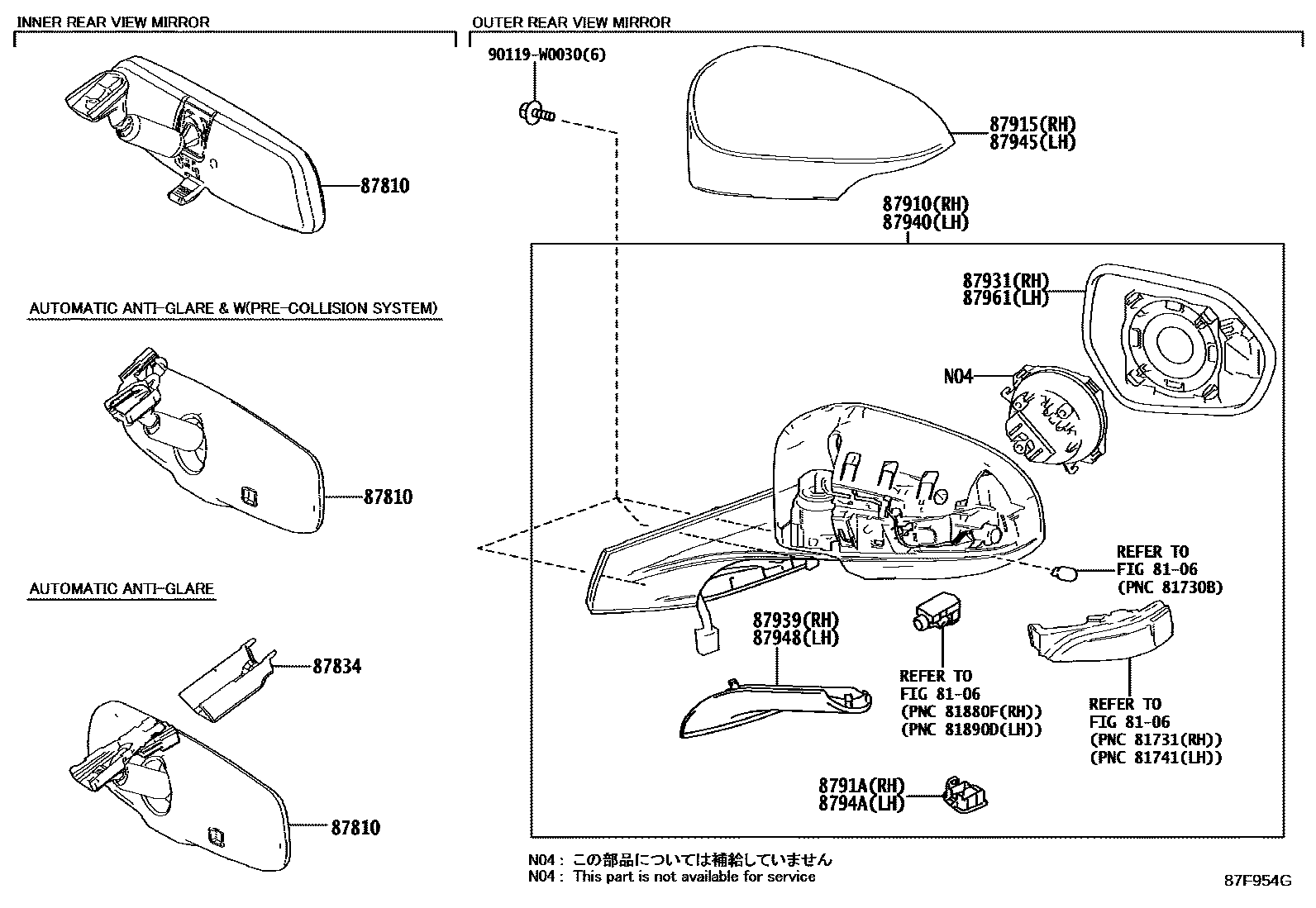

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
GUADELOUPE SPEC
LIGHT GRADE
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
GUADELOUPE SPEC
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
main87910-F4020supersedes 87910-F4010iNGX50..G..EUR;NGX50,ZGX10..E..RUS;MAXH10,NGX10,ZYX1#..LHD..(E,G)..EUR201909
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,MEXICO SPEC
NO PAINT REQ.,MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
87915COVER, OUTER MIRROR, RH
PAINT REQ.
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,MEXICO SPEC
NO PAINT REQ.,MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
90119W0030
main90119-W0030
14 parts on this diagram · 1 diagram in section
