HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
COLD AREA SPEC
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
COLD AREA SPEC
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
85271HOSE, HEADLAMP CLEANER, NO.1
L=202
L=202,COLD AREA SPEC
L=202,WITHOUT(COLD AREA SPEC)
L=338
L=338,COLD AREA SPEC
85271AHOSE, HEADLAMP CLEANER, NO.2
L=109
L=109,COLD AREA SPEC
L=109,WITHOUT(COLD AREA SPEC)
L=255
L=255,COLD AREA SPEC
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1607
L=1607,COLD AREA SPEC
L=1607,WITHOUT(COLD AREA SPEC)
L=1638
L=1638,COLD AREA SPEC
85272ACLAMP, HEADLAMP CLEANER, NO.1
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
COLD AREA SPEC&HEAD LAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP CLEANER-WITH
COLD AREA SPEC&HEAD LAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
COLD AREA SPEC&HEAD LAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP CLEANER-WITH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
COLD AREA SPEC
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
COLD AREA SPEC
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
COLD AREA SPEC
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
85353COVER, HEADLAMP WASHER, RH
COLD AREA SPEC
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
85354COVER, HEADLAMP WASHER, LH
COLD AREA SPEC
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
9006949006
main90069-49006
9006949017
main90069-49017
9015960383
main90159-60383

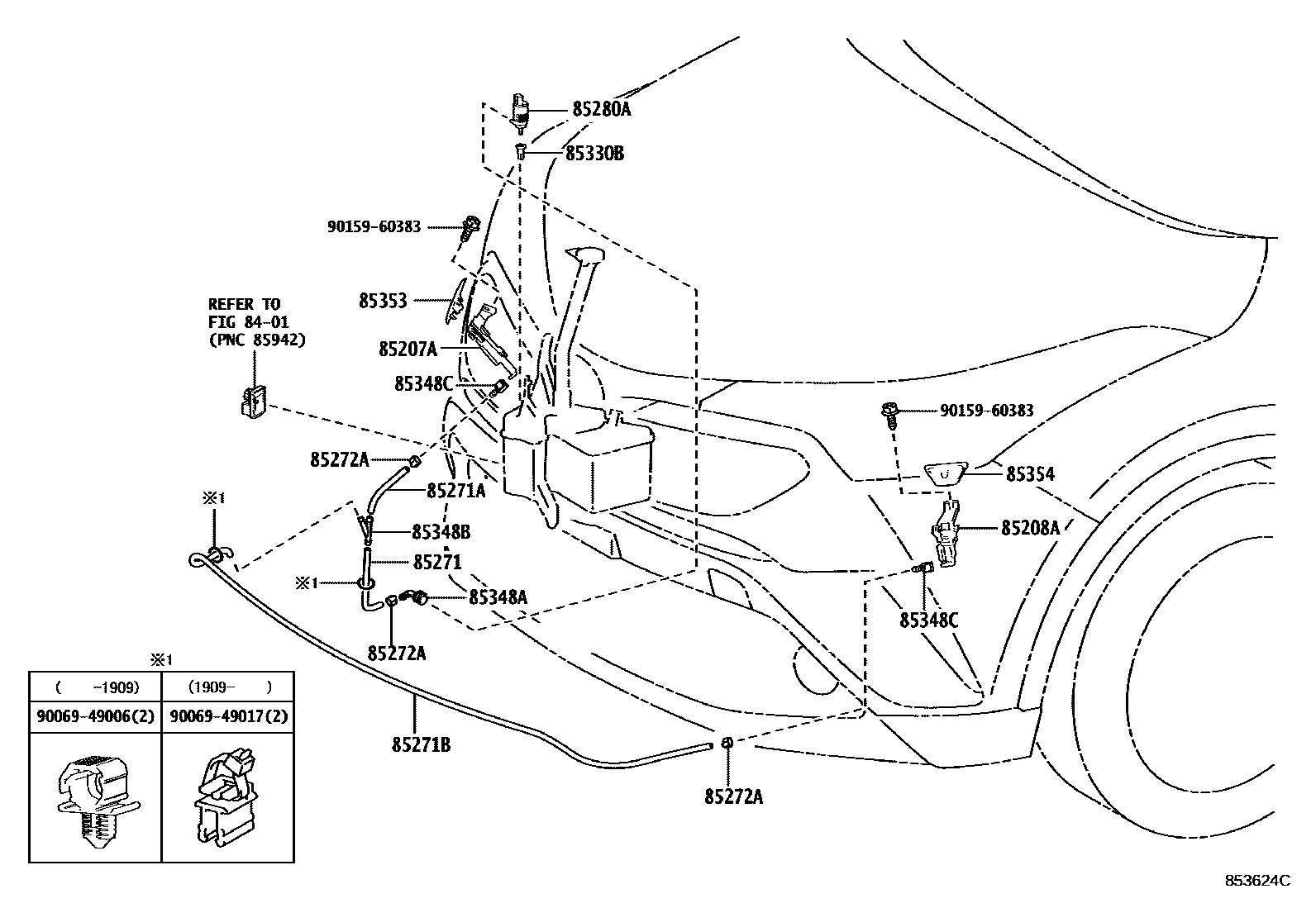

17 parts on this diagram · 1 diagram in section
