REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-10030iNGX10,50,ZGX10,ZYX10201610-202112

85348RJOINT, REAR WASHER HOSE, NO.1

main85357-0F020iNGX10,50,ZGX10,ZYX10201610-202112

85348SJOINT, REAR WASHER ELBOW, NO.1

main85375-0F030iNGX10,50,ZGX10,ZYX10201610-202112

85348TJOINT, REAR WASHER HOSE, NO.2

main85357-0F020iNGX10,50,ZGX10,ZYX10201610-202112

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNGX10,50,ZGX10,ZYX10201610-202112

85371NCLAMP, REAR WASHER HOSE

main85371-12040iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-202201

MEXICO SPEC

main85371-12040iNGX10..(E,G,K)..RUS201909-202112

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-46076iNGX10,50,ZGX10,ZYX10201610-202112

L=173

main90069-46076iNGX10,50,ZGX10,ZYX10201610-202201

L=173,MEXICO SPEC&WITHOUT(COLD AREA SPEC)

main90069-46076iNGX10,50,ZGX10,ZYX10201610-201909

L=173,COLD AREA SPEC&HEAD LAMP CLEANER-WITH

main90069-46076iNGX50..E..EUR201909-202010

L=173,COLD AREA SPEC&HEADLAMP CLEANER-WITH

85372DGROMMET, REAR WASHER HOSE

main85379-0F030iNGX10,50,ZGX10,ZYX10201610-202112

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010iNGX10,50,ZGX10,ZYX10201610-202112

*318:REFER ILLUST.

main90069-16010iNGX10,50,ZGX10,ZYX10201610-202201

MEXICO SPEC,*318:REFER ILLUST.

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-16010iNGX10,50,ZGX10,ZYX10201610-202112

*318:REFER ILLUST.

main90069-16010iNGX10,50,ZGX10,ZYX10201610-202201

MEXICO SPEC,*318:REFER ILLUST.

85372TGROMMET, WASHER

main85373-0D010iNGX10,50,ZGX10,ZYX10201610-202112

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNGX10,50,ZGX10,ZYX10201610-202112

L=1000(*H,L=210)

main90099-33299iNGX10,50,ZGX10,ZYX10201610-202201

L=1000(*H,L=210),MEXICO SPEC

85379BGROMMET, WASHER, A

main85373-0D022iNGX10,50,ZGX10,ZYX10201610-202112

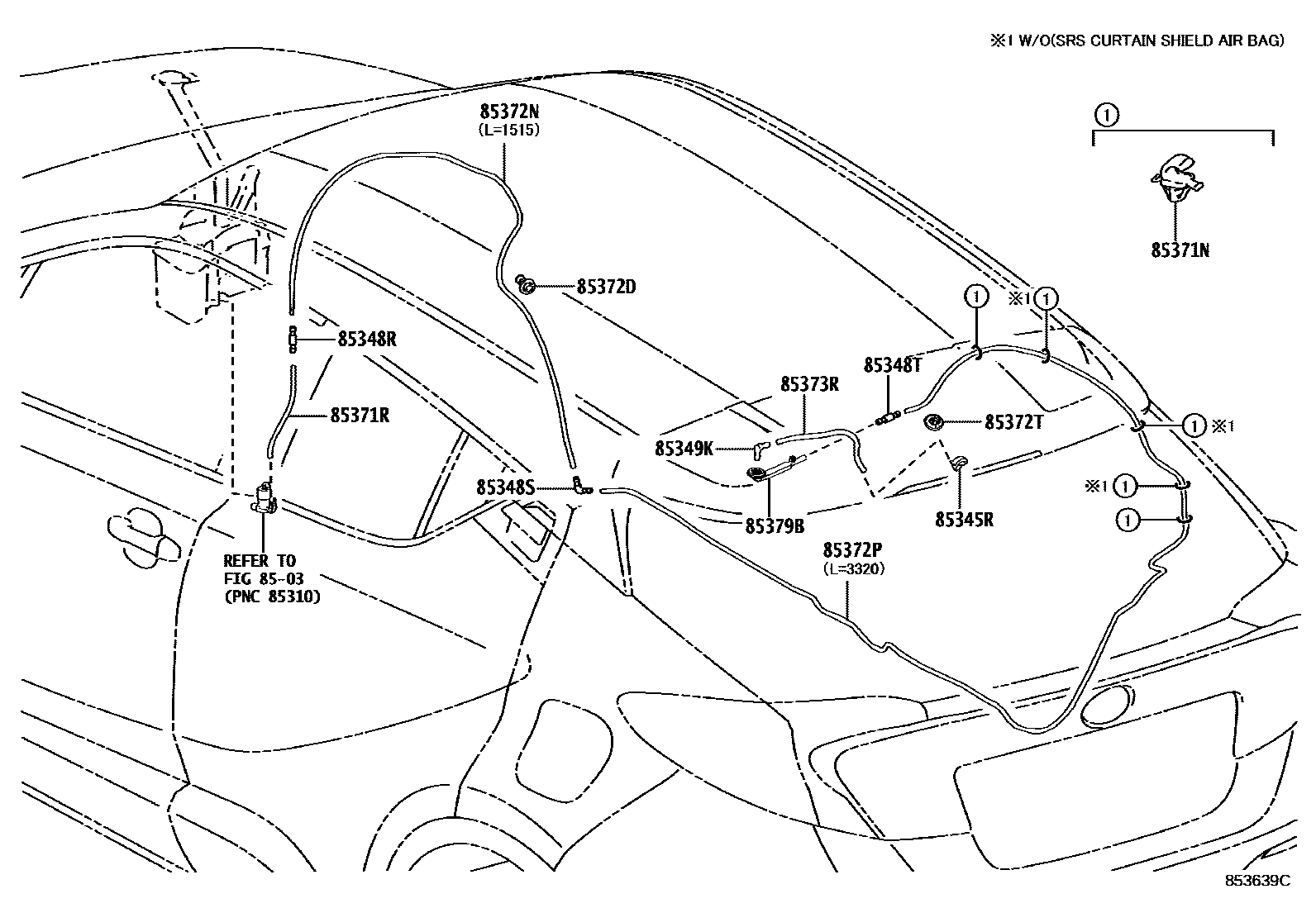

14 parts on this diagram · 1 diagram in section
