HEV CONTROL COMPUTER

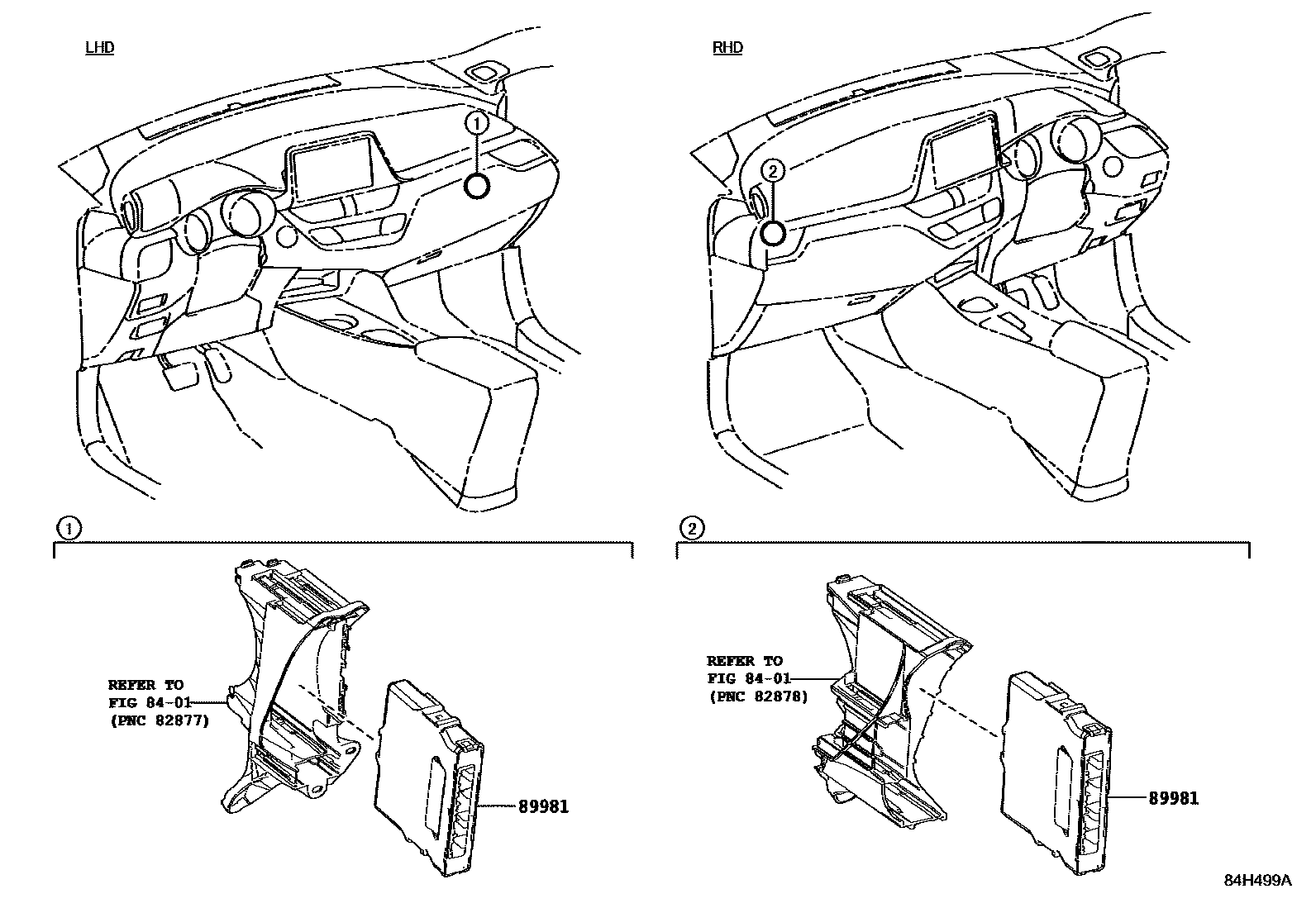

Parts diagram

8401

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-F4020i201610-201805

main89981-F4040i201805-201909

main89981-F4050i201909-202010

main89981-F4060i201909-202010

main89981-F4070i201909-202010

main89981-F4080i202010-202303

main89981-F4090i202010-202303

main89981-F4100i202010-202303

main89981-F4210i202303

main89981-F4220i202303

main89981-F4230i202303

2 parts on this diagram · 1 diagram in section
