AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-F4020iNGX10,50,ZYX10..EUR201610-201909

89170ACOMPUTER ASSY, AIRBAG

main89170-F4010iNGX10,50..LHD..EUR201610-201909

main89170-F4020iNGX10,50..RHD201610-201909

main89170-F4070iNGX10,ZGX10..(D,N)..RUS201610-201909

main89170-F4090iNGX50..RUS;NGX10,ZGX10..(E,G)..RUS201610-201909

MONTENEGRO SPEC

main89170-F4090iNGX50..RUS;NGX10,ZGX10..(E,G)..RUS201610-201909

MACEDONIA SPEC

main89170-F4090iNGX50..RUS;NGX10,ZGX10..(E,G)..RUS201610-201909

BOSNIA SPEC

main89170-F4090iNGX10,50..LHD..EUR201610-201909

TURKEY SPEC

main89170-F4090iNGX10,50..LHD..EUR201610-201909

EUROPE SPEC(EXCEPT EU)

main89170-F4090iNGX10,50..LHD..EUR201610-201909

REUNION SPEC

main89170-F4090iNGX10,50..LHD..EUR201610-201909

SERBIA SPEC

main89170-F4130iZYX10..LHD201610-201909

main89170-F4140iZYX10..RHD201610-201909

main89170-F4220iNGX10,50..LHD..EUR201909-202010

main89170-F4230iNGX10..RHD201909-202009

main89170-F4280iNGX50..RUS;ZGX10..E,G,K201909-202201

main89170-F4300iZGX10..N201909-202201

main89170-F4320iMAXH10,ZYX1#..LHD201909-202201

main89170-F4330iMAXH10,ZYX1#..RHD201909-202201

main89170-F4440iNGX50..EUR202010-202201

main89170-F4610iNGX10..EUR;NGX50..RUS;ZGX10..E,G,K202201

main89170-F4630iZGX10..N202201

main89170-F4650iMAXH10,ZYX1#..LHD202201

main89170-F4660iMAXH10,ZYX1#..RHD202201

main89170-F4680iNGX50..EUR202201

TAIWAN SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-F9010iNGX10,50,ZGX10,ZYX10201610-202112

89174ASENSOR, AIRBAG, FRONT LH

main89173-F9010iNGX10,50,ZGX10,ZYX10201610-202112

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iNGX10,50,ZYX10..EUR201610-201909

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-F4010iZGX10..N201610-201909

MEXICO SPEC

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-F4010iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-F4020iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-202201

MEXICO SPEC

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-F4020iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-202201

MEXICO SPEC

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-F4030iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

main89831-F4030iNGX10..(E,G,K)..RUS201909-202112

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-F4030iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

main89831-F4030iNGX10..(E,G,K)..RUS201909-202112

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-F4010iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

main8983A-F4010iNGX10..(E,G,K)..RUS201909-202112

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-F4010iNGX10..EUR;NGX50,ZYX10;NGX10,ZGX10..(E,G)..RUS201610-201909

MEXICO SPEC

main8983A-F4010iNGX10..(E,G,K)..RUS201909-202112

90105W0180

main90105-W0180

90105W0251

main90105-W0251

90119W0206

main90119-W0206

90178W0019

main90178-W0019

91553A0620

main91553-A0620

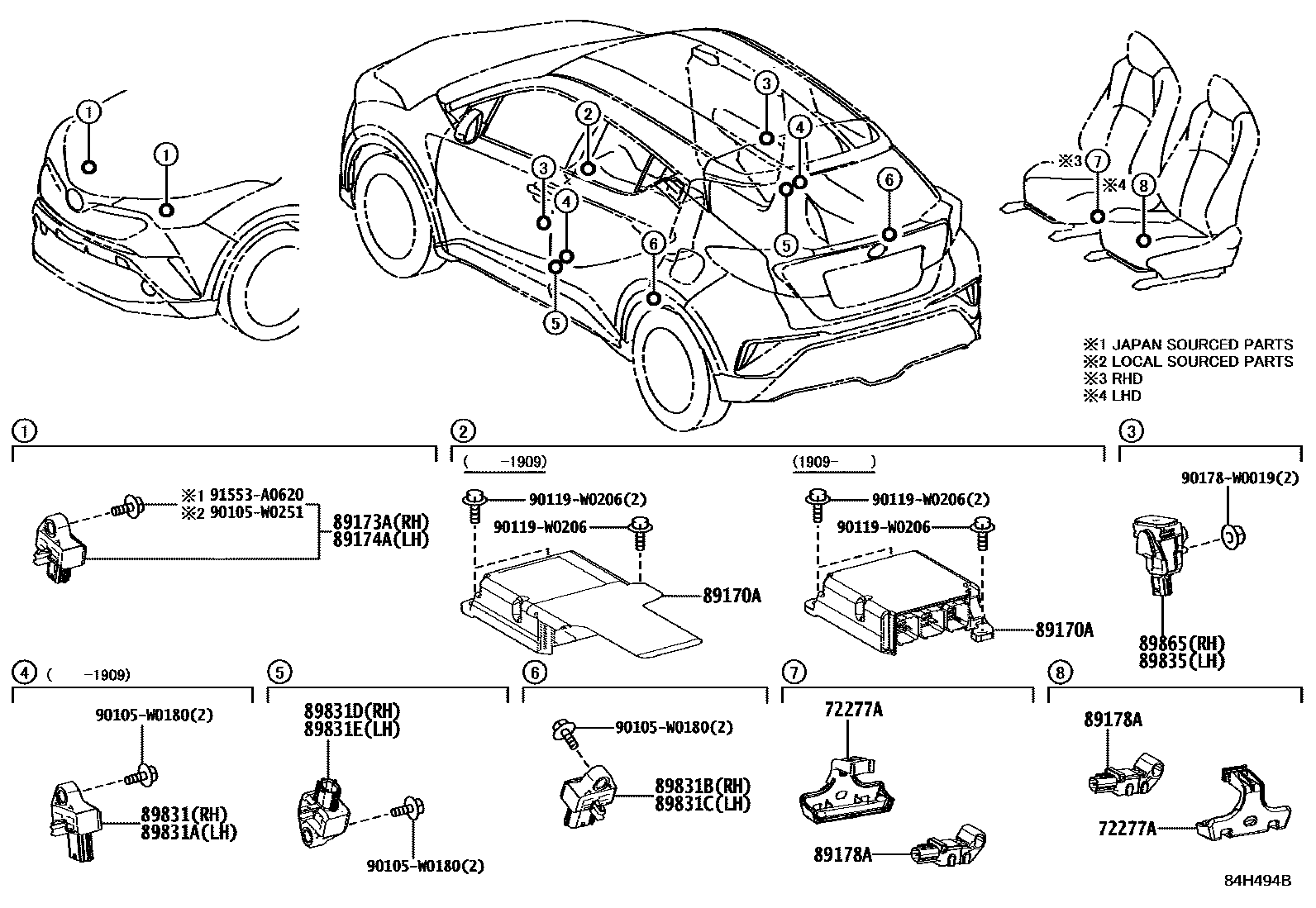

18 parts on this diagram · 1 diagram in section
