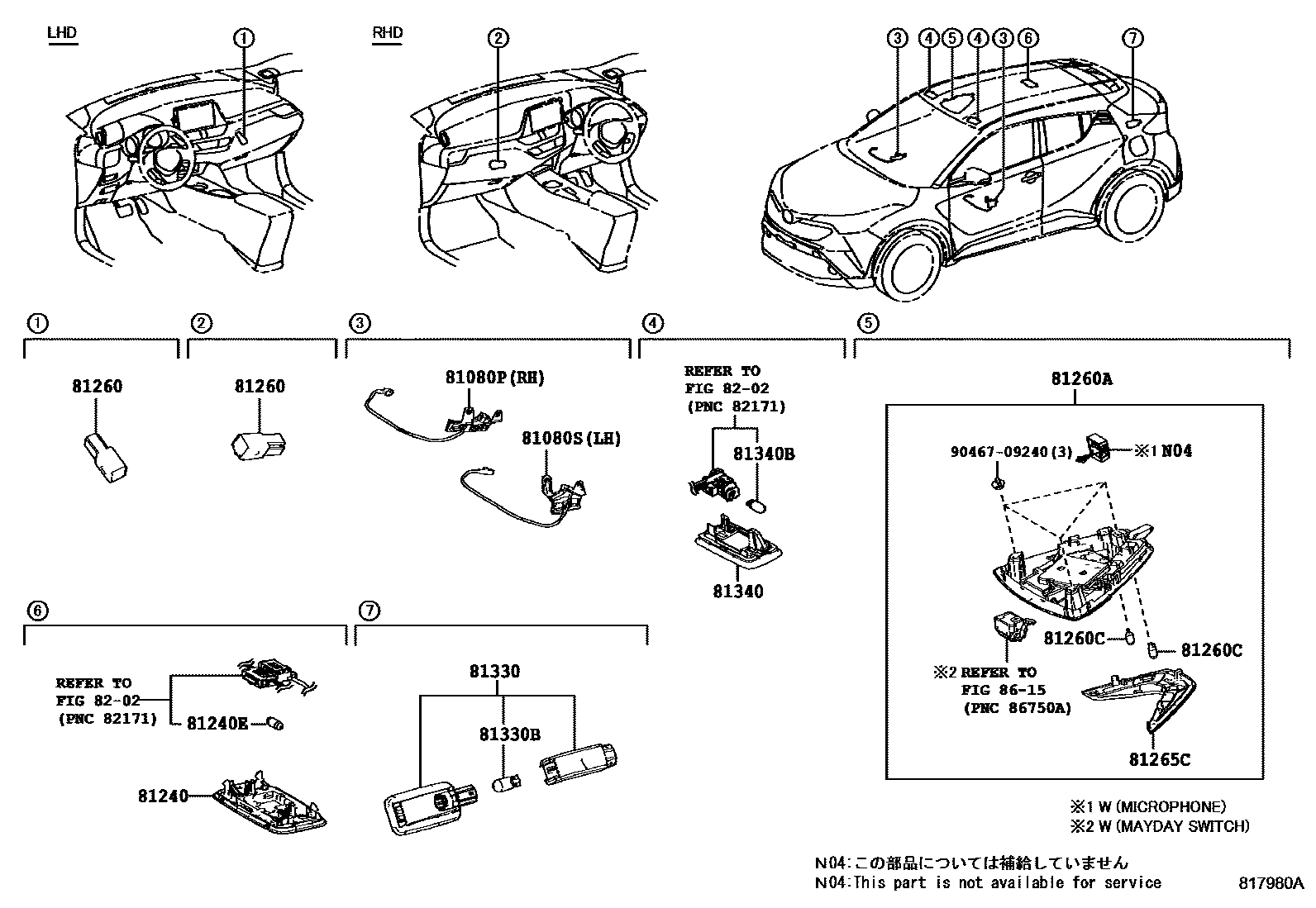

INTERIOR LAMP

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-F4010-C0iNGX10,50,ZGX10,ZYX10..E201610-201805

EU BLACK,TRIM2#

sub81080-F4010

main81080-F4010-C1iNGX10..E..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E201909-202112

BLACK,TRIM2#,4#,8#

sub81080-F4010

main81080-F4010-C1iNGX10,50,ZGX10,ZYX10..E201805-201909

BLACK,TRIM2#

sub81080-F4010

main81080-F4020-C0iNGX10,50,ZGX10,ZYX10..G201610-201805

EU BLACK,TRIM2#

sub81080-F4020

main81080-F4020-C1iZYX10..RHD..G201805-202112

BLACK,TRIM2#

sub81080-F4020

main81080-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub81080-F4020

main81080-F4020-C1iNGX10..G..EUR;NGX50,ZGX10..G;MAXH10,ZYX11..G,K;ZYX10..LHD..(G,K)201909-202112

BLACK,TRIM2#,4#,8#

sub81080-F4020

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81090-F4010-C0iNGX10,50,ZGX10,ZYX10..E201610-201805

EU BLACK,TRIM2#

main81090-F4010-C1iNGX10,50,ZGX10,ZYX10..E201805-201909

BLACK,TRIM2#

main81090-F4010-C1iNGX10..E..RUS201909-202112

BLACK,TRIM2#,4#,8#

main81090-F4020-C0iNGX10,50,ZGX10,ZYX10..G201610-201805

EU BLACK,TRIM2#

sub81090-F4020

main81090-F4020-C1iNGX10..G..EUR;NGX50,ZGX10..G;MAXH10,ZYX11..G,K;ZYX10..LHD..(G,K)201909

BLACK,TRIM2#,8#

sub81090-F4020

main81090-F4020-C1iNGX10..G..EUR;NGX50,ZGX10..G;MAXH10,ZYX11..G,K;ZYX10..LHD..(G,K)201805-202112

BLACK,TRIM2#

sub81090-F4020

main81090-F4020-C1iNGX10..G..EUR;NGX50,ZGX10..G;MAXH10,ZYX11..G,K;ZYX10..LHD..(G,K)201909-202112

BLACK,TRIM2#,4#,8#

sub81090-F4020

81240LAMP ASSY, ROOM, NO.1

main81240-02080-B0iZYX10..RHD..G201909

LT.GRAY,TRIM21,23

sub81240-02080

main81240-02080-B0iZYX10..RHD..G201909-202112

LT.GRAY,TRIM21,41

sub81240-02080

main81240-02080-B0iZYX10..RHD..G201909-202112

LT.GRAY,TRIM21,23,41

sub81240-02080

main81240-02080-B0iNGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201909-202112

LT.GRAY,TRIM21

sub81240-02080

main81240-02080-C0iZYX10..N;NGX10..6F..N..EUR201610-201805

LIGHT GRADE,EU BLACK,TRIM2#

sub81240-02080

main81240-02080-C0iZYX10..N;NGX10..6F..N..EUR201610-201805

EU BLACK,TRIM2#

sub81240-02080

main81240-02080-C1iNGX10..(E,G)..EUR;ZYX10..LHD..(E,G);MAXH10,NGX50,ZGX10,ZYX11..E,G201909-202112

BLACK,TRIM20,40,8#

sub81240-02080

main81240-02080-C1iNGX10,50,ZGX10,ZYX10201805-201909

BLACK,TRIM2#

sub81240-02080

main81240-02080-C1iNGX10,50,ZGX10,ZYX10201805-201909

LIGHT GRADE,BLACK,TRIM2#

sub81240-02080

main81240-02080-C1iNGX10..(E,G)..RUS201909-202112

BLACK,TRIM20,22,24,40,8#

sub81240-02080

main81240-02080-C1iNGX10..(E,G)..RUS201909-202112

BLACK,TRIM20

sub81240-02080

main81240-02080-C1iZYX10..RHD..G201909

BLACK,TRIM20,22,24,8#

sub81240-02080

81240EBULB, ROOM LAMP, NO.2

main90981-14011iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥180201610-202112

12V 8W

main90981-14011iNGX10,50,ZGX10,ZYX10¥180201610-201909

12V 8W,LIGHT GRADE

81260LAMP ASSY, GLOVE BOX

main81080-02040iNGX10..RUS202110-202112

main81080-0D010iNGX10,50,ZGX10,ZYX10201710-201909

LIGHT GRADE

main81080-0D010iMAXH10,NGX10,50,ZGX10,ZYX1#201909-202109

main81080-58100iNGX10,50,ZGX10,ZYX10¥920201610-201709

LIGHT GRADE

sub81080-33290¥920

81260ALAMP ASSY, MAP

main81260-F4040-B0iNGX10,ZYX10..RHD;MAXH10,ZYX11..RHD..(G,K,N)201909-202001

LT.GRAY,TRIM21

sub81260-F4040

sub81260-F4041

main81260-F4040-B0iNGX10,ZYX10..RHD;MAXH10,ZYX11..RHD..(G,K,N)201909-202001

LT.GRAY,TRIM21,23,41

sub81260-F4040

sub81260-F4041

main81260-F4040-C0iZYX10..RHD..N;NGX10..RHD..6F..N201610-201805

LIGHT GRADE,EU BLACK,TRIM2#

sub81260-F4040

sub81260-F4041

main81260-F4040-C0iNGX10,50,ZYX10..RHD201610-201805

UNITED KINGDOM SPEC&LIGHT GRADE,EU BLACK,TRIM2#

sub81260-F4040

sub81260-F4041

main81260-F4040-C0iNGX10,50,ZYX10..RHD201610-201805

EU BLACK,TRIM2#

sub81260-F4040

sub81260-F4041

main81260-F4040-C1iMAXH10,NGX10,ZYX1#..RHD..(K,N)201909-202001

BLACK,TRIM20,21

sub81260-F4040

sub81260-F4041

main81260-F4040-C1iNGX10,50,ZYX10..RHD201805-201909

BLACK,TRIM2#

sub81260-F4040

sub81260-F4041

main81260-F4040-C1iNGX10,50,ZYX10..RHD201805-201909

UNITED KINGDOM SPEC&LIGHT GRADE,BLACK,TRIM2#

sub81260-F4040

sub81260-F4041

main81260-F4040-C1iNGX10,50,ZYX10..RHD201805-201909

LIGHT GRADE,BLACK,TRIM2#

sub81260-F4040

sub81260-F4041

main81260-F4040-C1iMAXH10,NGX10,ZYX1#..RHD..(K,N)201909-202001

BLACK,TRIM20,22,24,8#

sub81260-F4040

sub81260-F4041

main81260-F4040-C1iMAXH10,NGX10,ZYX1#..RHD..(K,N)201909-202001

BLACK,TRIM20,22,24,40

sub81260-F4040

sub81260-F4041

main81260-F4040-C1iMAXH10,NGX10,ZYX1#..RHD..G201909-202001

BLACK,TRIM20,22,24,4#

sub81260-F4040

sub81260-F4041

main81260-F4041-B0iMAXH10,ZYX11..RHD..(K,N)202002-202010

LT.GRAY,TRIM23,41

main81260-F4041-B0iMAXH10,ZYX11..RHD..E202002-202010

LT.GRAY,TRIM21

main81260-F4041-C1iMAXH10,ZYX11..RHD..E202002-202010

BLACK,TRIM20

main81260-F4041-C1iNGX10,ZYX10..RHD..G202002-202010

BLACK,TRIM2#,8#

main81260-F4041-C1iMAXH10,ZYX11..RHD..(K,N)202002-202010

BLACK,TRIM22,40

main81260-F4041-C1iNGX10..RHD..E202002-202009

BLACK,TRIM2#,4#

main81260-F4060-B0iNGX10,50..E..RUS;MAXH10,NGX10,ZGX10,ZYX1#..LHD..CVT..E201909-202001

LT.GRAY,TRIM21

sub81260-F4061

sub81260-F4060

main81260-F4060-B0iNGX10,50..E..RUS;MAXH10,NGX10,ZGX10,ZYX1#..LHD..CVT..E201909-202001

LT.GRAY,TRIM23,41

sub81260-F4061

sub81260-F4060

main81260-F4060-C0iNGX10,50,ZGX10,ZYX10..LHD201610-201805

LIGHT GRADE,EU BLACK,TRIM2#

sub81260-F4061

sub81260-F4060

main81260-F4060-C0iZYX10..LHD..N;NGX10..LHD..6F..N..EUR201610-201805

EU BLACK,TRIM2#

sub81260-F4061

sub81260-F4060

main81260-F4060-C1iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..G201909-202001

BLACK,TRIM22,40

sub81260-F4061

sub81260-F4060

main81260-F4060-C1iNGX10,50,ZGX10,ZYX10..LHD201805-201909

BLACK,TRIM2#

sub81260-F4061

sub81260-F4060

main81260-F4060-C1iNGX10,50,ZGX10,ZYX10..LHD201805-201909

LIGHT GRADE,BLACK,TRIM2#

sub81260-F4061

sub81260-F4060

main81260-F4060-C1iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..(K,N)201909-202001

BLACK,TRIM20

sub81260-F4061

sub81260-F4060

main81260-F4060-C1iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..(K,N)201909-202001

BLACK,TRIM2#,8#

sub81260-F4061

sub81260-F4060

main81260-F4060-C1iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..(K,N)201909-202001

BLACK,TRIM2#,4#

sub81260-F4061

sub81260-F4060

main81260-F4061-B0iMAXH10,ZYX11..LHD..K202002-202201

LT.GRAY,TRIM21

main81260-F4061-B0iMAXH10,ZYX11..LHD..E202002-202201

LT.GRAY,TRIM23,41

main81260-F4061-C1iNGX10..(K,N)..RUS202002-202201

BLACK,TRIM22,40

main81260-F4061-C1iNGX10..(K,N)..RUS202002-202201

BLACK,TRIM20

main81260-F4061-C1iMAXH10,ZYX11..LHD..E202002-202201

BLACK,TRIM2#,8#

main81260-F4061-C1iNGX50..E..EUR;NGX10..LHD..6F..E..EUR202002

BLACK,TRIM2#,4#

main81260-F4152-B0iMAXH10,ZYX11..LHD..E202201

LT.GRAY,TRIM23,41

main81260-F4152-B0iMAXH10,ZYX11..LHD..K202201

LT.GRAY,TRIM21

main81260-F4152-C1iMAXH10,ZYX11..LHD..G202201

BLACK,TRIM20

main81260-F4152-C1iMAXH10,ZYX11..LHD..E202201

BLACK,TRIM22,40

main81260-F4152-C1iMAXH10,ZYX11..LHD..E202201

BLACK,TRIM2#,8#

main81260-F4231-B0iMAXH10,ZYX11..RHD..E202010-202201

LT.GRAY,TRIM21

main81260-F4231-B0iMAXH10,ZYX11..RHD..E202010-202201

LT.GRAY,TRIM23,41

main81260-F4231-C0iMAXH10,ZYX11..RHD..E202010-202201

BLACK,TRIM22,40

main81260-F4231-C0iMAXH10,ZYX11..RHD..N202010-202201

BLACK,TRIM20

main81260-F4231-C0iMAXH10,ZYX11..RHD..K202010-202201

BLACK,TRIM2#,8#

main81260-F4270-B0iMAXH10,ZYX11..RHD..E202201

LT.GRAY,TRIM21

main81260-F4270-B0iMAXH10,ZYX11..RHD..K202201

LT.GRAY,TRIM23,41

main81260-F4270-C0iMAXH10,ZYX11..RHD..K202201

BLACK,TRIM20

main81260-F4270-C0iMAXH10,ZYX11..RHD..E202201

BLACK,TRIM22,40

main81260-F4270-C0iMAXH10,ZYX11..RHD..E202201

BLACK,TRIM2#,8#

81260CBULB(FOR MAP LAMP)

main99132-12050iZYX10..N;NGX10..6F..N..EUR¥110201610-201909

12V 5W,UNITED KINGDOM SPEC&LIGHT GRADE

main99132-12050iZYX10..N;NGX10..6F..N..EUR¥110201610-201909

12V 5W,LIGHT GRADE

main99132-12050iNGX10..RUS¥110201610-202112

12V 5W

81265CLENS, MAP LAMP, NO.1

main81265-F4010iZYX10..N;NGX10..6F..N..EUR201610-201909

UNITED KINGDOM SPEC&LIGHT GRADE

main81265-F4010iZYX10..RHD..N;NGX10..RHD..6F..N201610-201909

LIGHT GRADE

main81265-F4010iNGX10..RUS201909-202112

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iZYX10..N;NGX10..6F..N..EUR¥1,250201610-201708

LIGHT GRADE

main81330-02060iNGX10,50,ZGX10,ZYX10¥2,680201709-201909

LIGHT GRADE

main81330-02060iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥2,680201909-202112

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-WB021iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥110201709-202112

12V 5W

main90981-WB021iNGX10,50,ZGX10,ZYX10¥110201709-201909

12V 5W,LIGHT GRADE

main99132-12050iNGX10,50,ZGX10,ZYX10¥110201610-201709

12V 5W,LIGHT GRADE

main99132-12050iZYX10..N;NGX10..6F..N..EUR¥110201610-201709

12V 5W

81340LAMP ASSY, VANITY

main81340-F4010iNGX10,50,ZGX10,ZYX10..E201610-201909

SUN VISOR-WITH(*DRP MIRROR & LAMP)

main81340-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909-202112

81340BBULB (FOR VANITY LAMP)

main90981-11062iNGX10,50,ZGX10,ZYX10..G,N¥340201610-201909

12V 8W,SUN VISOR-WITH(*DRP MIRROR & LAMP)

main90981-11062iNGX10..RUS¥340201610-202112

12V 8W

8202

8615

9046709240

main90467-09240¥80

15 parts on this diagram · 1 diagram in section
