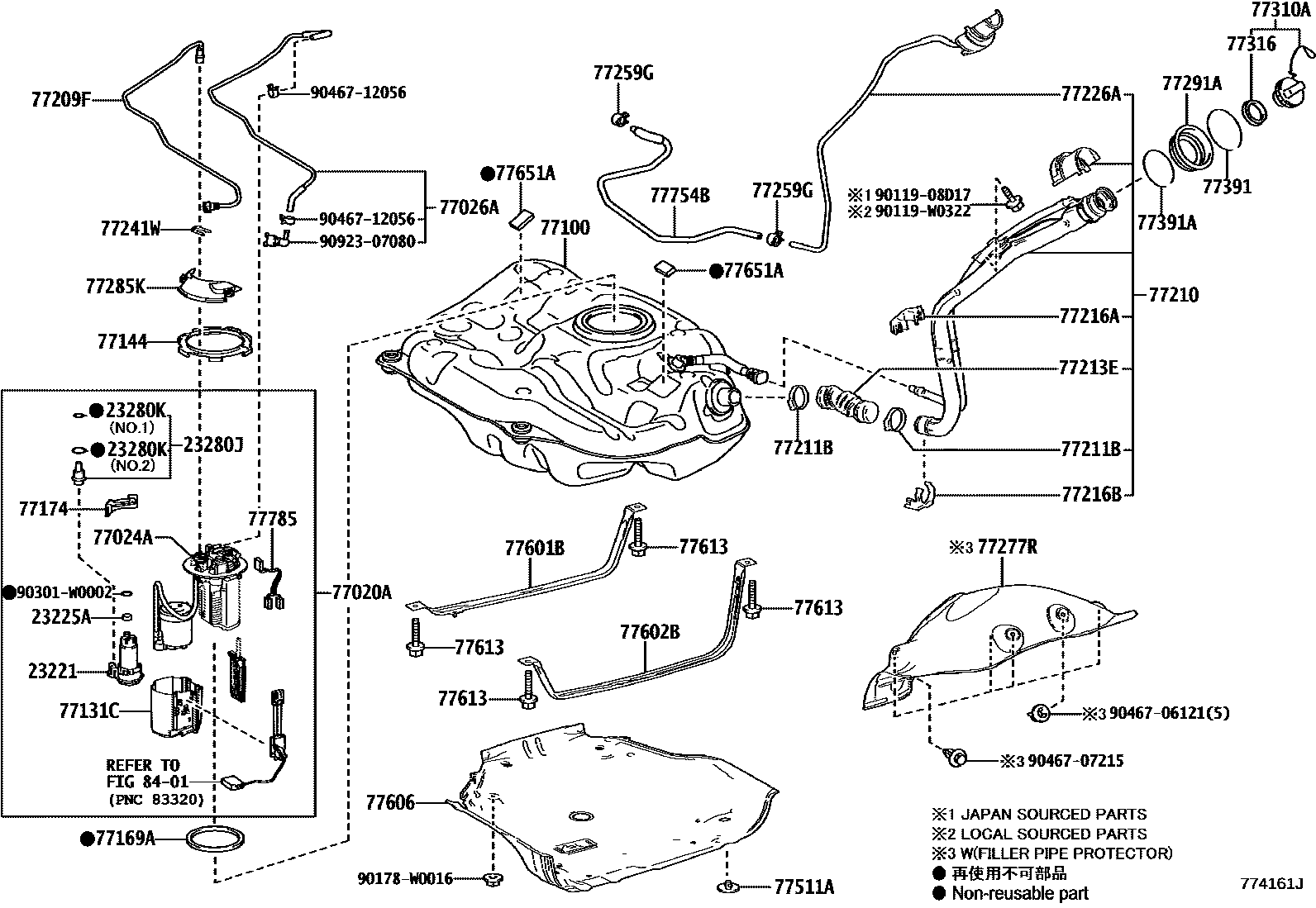

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77259GCLIP, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
(J)
(L)
77651ACUSHION, FUEL TANK, NO.1
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
(L)
(J)
8401
9011908D17
90119W0322
main90119-W0322
90178W0016
main90178-W0016
90301W0002
9046706121
9046707215
9046712056
9092307080
