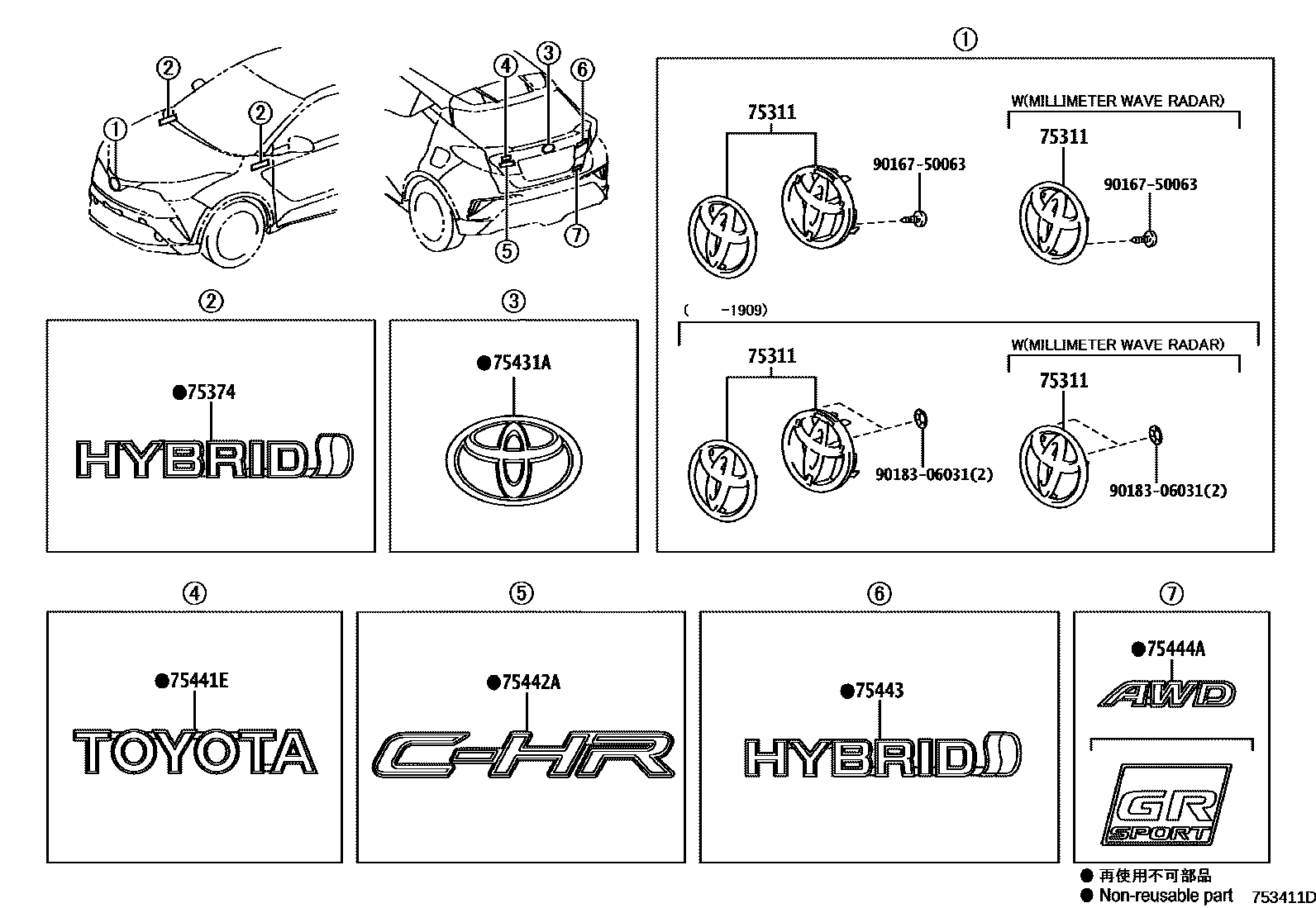

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-42020iNGX10,50..EUR201610-201909

sub53141-42021

main53141-47030iZYX10201610-201909

sub53141-47031

main75301-F4040iNGX50,ZGX10..RUS202202

main75301-F4050iNGX10..RUS201909-202112

main75301-F4080iNGX10,50..LHD..EUR201610-201909

MARTINIQUE SPEC

main90975-02160iNGX10,50..EUR201909

main90975-02161iMAXH10,ZYX1#201909

main75301-F4090iZYX10..LHD201610-201909

MARTINIQUE SPEC

75374EMBLEM, SIDE PANEL

main75374-F4010iZYX10201610-201909

RH

main75374-F4011iMAXH10..LHD202209

MARTINIQUE SPEC,RH

main75374-F4020iZYX10201610-201909

LH

main75374-F4021iMAXH10..LHD202209

FRENCH GUIANA SPEC,LH

75431AEMBLEM, BACK DOOR, NO.1

main75403-F4010iMAXH10,ZYX1#201909

main90975-W2006iNGX10,50..EUR201610-201909

main90975-W2011iNGX10..RUS201909-202112

main90975-02138iNGX10..G..RUS202012-202112

GR SPORT

75441EPLATE, BACK DOOR NAME, NO.1

main75441-F4011iNGX10,50,ZYX10..EUR201610-201909

TOYOTA,LIGHT GRADE

main75441-F4021iMAXH10,NGX10,50,ZYX1#..EUR202202

TOYOTA

75442APLATE, BACK DOOR NAME, NO.2

main75442-F4011supersedes 75442-F4011iMAXH10,NGX10,50,ZYX1#..EUR201909-202202

C-HR

main75442-F4021supersedes 75442-F4021iNGX10..RUS201909-202112

C-HR

75443PLATE, BACK DOOR NAME, NO.3

main75443-F4021iZYX10201610-201909

HYBRID

main75443-F4022iMAXH10,ZYX1#202209

HYBRID

75444APLATE, BACK DOOR NAME, NO.4

main75444-F4010iNGX50..EUR201610-201909

AWD

main75444-F4020iNGX50..RUS201909

AWD

main75441-YP050iNGX10..G..RUS202012-202112

GR SPORT,GR SPORT

9016750063

main90167-50063

9018306031

main90183-06031

9 parts on this diagram · 1 diagram in section
