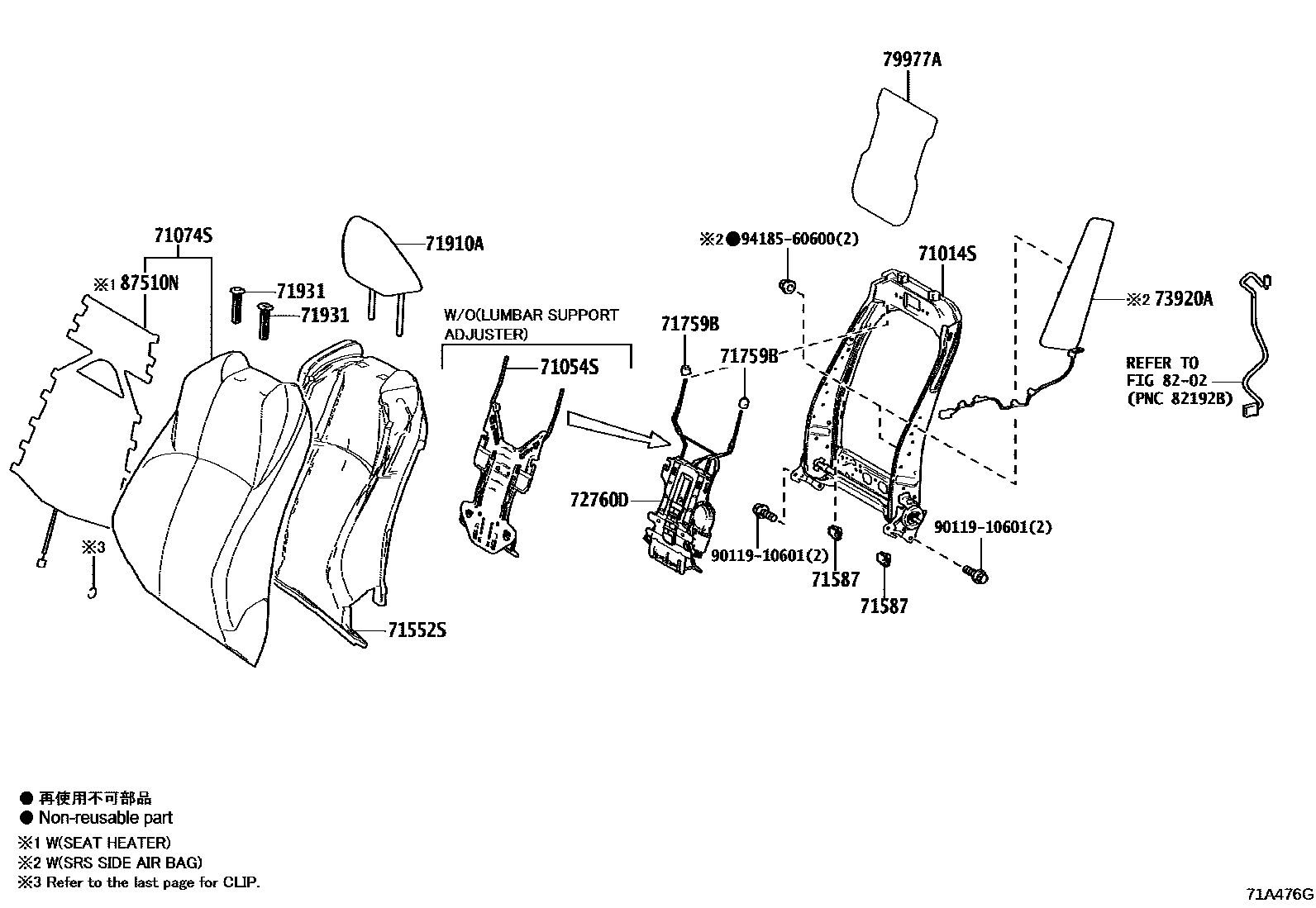

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-F4010iNGX50..N..EUR;NGX10,ZYX10..RHD;NGX50..RHD..(E,G);NGX10,ZGX10,ZYX10..LHD..(D,N)201610-202201
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
DARK GREY/BLACK,TRIM2#
DARK GREY/BLACK,TRIM2#
MEXICO SPEC,DARK GREY/BLACK,TRIM2#
DARK GREY/BLACK,TRIM2#
DARK GREY/BLACK,TRIM2#
MEXICO SPEC,DARK GREY/BLACK,TRIM2#
MEXICO SPEC&MID+ PACKAGE&SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DARK GREY/BLACK,TRIM2#
DARK GREY/BLACK,TRIM2#
SEAT HEATER-WITH,DARK GREY/BLACK,TRIM2#
DARK GREY/BLACK,TRIM2#
SEAT HEATER-WITH,DARK GREY/BLACK,TRIM2#
MID+ PACKAGE&SEAT COVER MATERIAL-FABRIC,DARK GREY/BLACK,TRIM2#
LICORICE,TRIM2#
LICORICE,TRIM2#
DARK GREY/BLUE,TRIM2#
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK/DK.GREY/LT.GRAY,TRIM2#
BLACK,TRIM2#
BLACK/DK.GREY/LT.GRAY,TRIM2#
SEAT HEATER-WITH,BLACK,TRIM2#
BLACK,TRIM2#
SEAT HEATER-WITH,BLACK/DARK GREY/LT.GRAY,TRIM2#
BLACK/DARK GREY/LT.GRAY,TRIM2#
GR SPORT&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM8#
BLACK,TRIM8#
GR SPORT&SEAT COVER MATERIAL-ALCANTARA&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM8#
BLACK/BLUE,TRIM8#
BLACK,TRIM4#
BLACK/ORCHID BROWN,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT HEATER-WITH,BLACK,TRIM2#
DUMY COLOR,TRIM2#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,DUMY COLOR,TRIM2#
SEAT HEATER-WITH,DUMY COLOR,TRIM2#
-,TRIM2#
SEAT HEATER-WITH,-,TRIM2#
DUMY COLOR,TRIM2#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,DUMY COLOR,TRIM2#
-,TRIM2#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
MEXICO SPEC
71587PROTECTOR, FRONT SEATBACK EDGE
71759BHOOK, FRONT SEATBACK
71910AHEADREST ASSY, FRONT SEAT
GREY,TRIM2#
BLACK,TRIM2#
BLUE,TRIM2#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
BLACK,TRIM20
LICORICE,TRIM20
MEXICO SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
BLACK,TRIM20
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
LICORICE,TRIM20
DARK GREY,TRIM2#
BLACK,TRIM8#
DARK GREY,TRIM2#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK,TRIM2#
BLACK,TRIM2#,40,41,8#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#,40,41,8#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#,4#,8#
ORCHID BROWN,TRIM40,41
ORCHID BROWN,TRIM4#
DUMY COLOR,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),EU BLACK,TRIM2#
W(LOCK),BLACK,TRIM2#
W(LOCK),BLACK,TRIM2#,8#
W(LOCK),BLACK,TRIM2#,4#,8#
W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#,4#,8#
W(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEATHEATER-WITH,BLACK,TRIM2#,4#,8#
W(LOCK),BLACK,TRIM8#
W/O(LOCK),EU BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#,8#
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#,4#,8#
W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#,4#,8#
W/O(LOCK),SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK,TRIM2#,4#,8#
W/O(LOCK),BLACK,TRIM8#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
SEAT HEATER-WITH
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH
79977AFELT, SEATBACK
8202
87510NHEATER ASSY, FRONT SEATBACK, LH
SEAT HEATER-WITH
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH
SEAT HEATER-WITH
9011910601
main90119-10601
9418560600
main94185-60600
15 parts on this diagram · 10 diagrams in section
