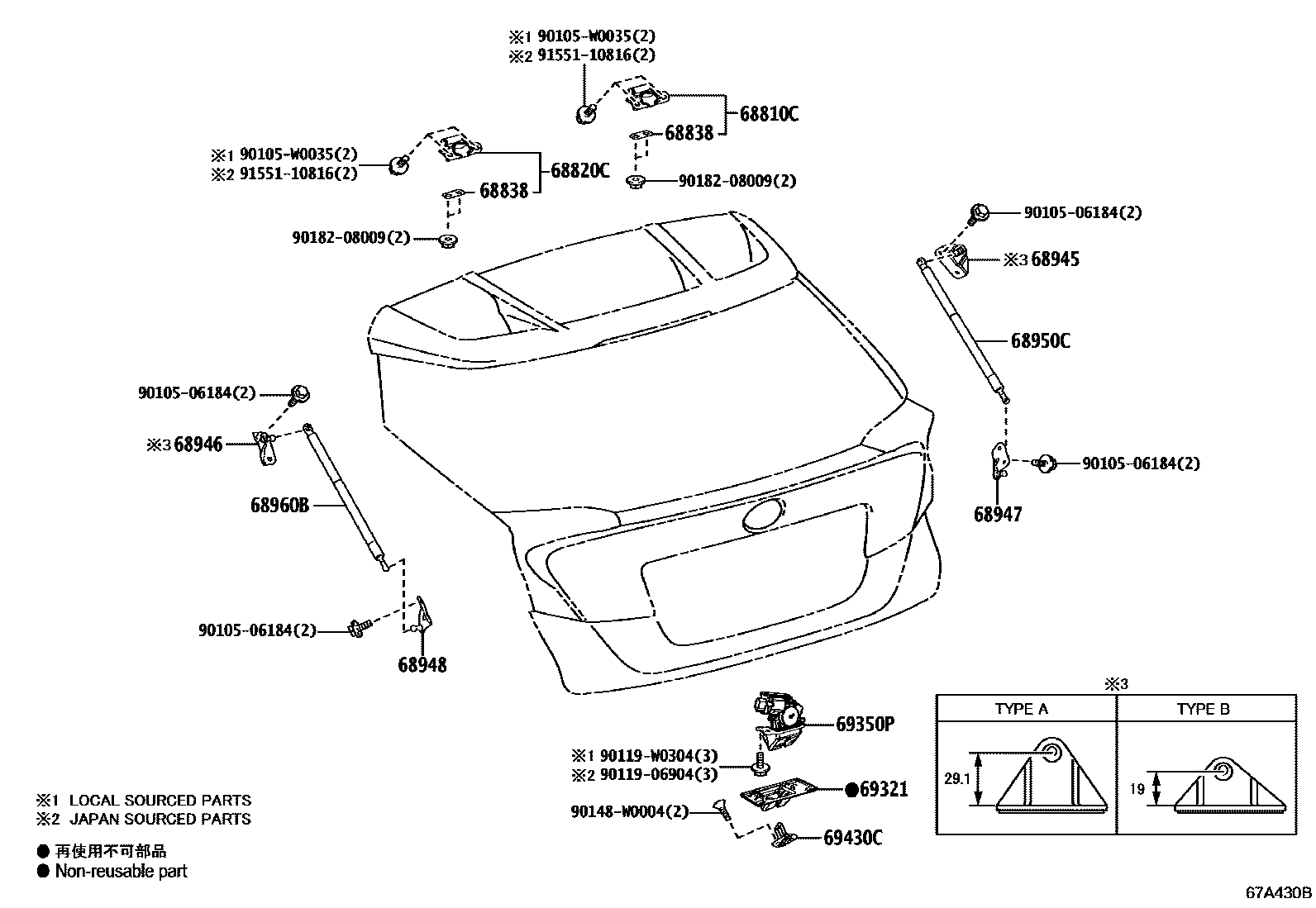

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-F4010iNGX10..RUS201909-202112

68820CHINGE ASSY, BACK DOOR, LH

main68810-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

68838PAD, BACK DOOR HINGE, NO.1

main68838-F4010×2iNGX10,50,ZGX10,ZYX10201610-201909

T=1.0

main68838-F4020×2iNGX10,50,ZGX10,ZYX10201610-201909

T=1.5

main68838-F4030×2iNGX10..RUS201909-202112

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-F4010iNGX10,50,ZGX10..RUS201610-201904

TYPE A:REFER ILLUST.

main68945-F4050iNGX10,50,ZYX10..EUR201902-201909

TYPE B:REFER ILLUST.

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-F4010iNGX10,50,ZYX10..EUR201610-201902

TYPE A:REFER ILLUST.

main68946-F4050iNGX10,50,ZGX10..RUS201904-201909

TYPE B:REFER ILLUST.

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-F4010iNGX10,50,ZGX10,ZYX10201610-201801

main68947-F4011iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-F4010iNGX10,50,ZGX10,ZYX10201610-201801

main68948-F4011iNGX10,50,ZGX10,ZYX10201801-201909

68950CSTAY ASSY, BACK DOOR, RH

main68950-F4010iNGX10,50,ZGX10..RUS201610-201804

NORDIC SPEC&COLD AREA SPEC,PRINT COLOR = BLUE

main68950-F4011iNGX10,50,ZYX10..LHD..(D,N)..EUR201804-201904

COLD AREA SPEC,PRINT COLOR = RED

main68950-F4050iNGX10,50,ZYX10..EUR201610-201804

MEXICO SPEC,PRINT COLOR = BLUE

main68950-F4051supersedes 68950-F4061iZGX10201804-201904

MEXICO SPEC,PRINT COLOR = RED

sub68950-F4061

main68950-F4052supersedes 68950-F4062iNGX10..(K,N)..RUS201909-202112

main68950-F4062iNGX10..K..RUS201909-202112

HEADLAMP-PROJECTOR

main68950-F4020iNGX10,50..LHD..(E,G,N)..EUR201610-201804

GUADELOUPE SPEC&COLD AREA SPEC&HEADLAMP-LED,PRINT COLOR = BLUE

main68950-F4021iNGX10,50..LHD..(E,G,N)..EUR201804-201805

GUADELOUPE SPEC&COLD AREA SPEC&HEADLAMP-LED,PRINT COLOR = RED

main68950-F4060iNGX10,50..LHD..(E,G,N)..EUR201610-201804

SERBIA SPEC&HEADLAMP-LED,PRINT COLOR = BLUE

68960BSTAY ASSY, BACK DOOR, LH

main68960-F4010iNGX10,50,ZGX10..RUS201610-201804

NORDIC SPEC&COLD AREA SPEC,PRINT COLOR = BLUE

main68960-F4011iNGX10,50,ZYX10..LHD..(D,N)..EUR201804-201904

COLD AREA SPEC,PRINT COLOR = RED

sub68960-F4061

main68960-F4050iNGX10,50,ZYX10..EUR201610-201804

MEXICO SPEC,PRINT COLOR = BLUE

main68960-F4051supersedes 68960-F4061iZGX10201804-201904

MEXICO SPEC,PRINT COLOR = RED

sub68960-F4061

main68960-F4052supersedes 68960-F4062iNGX10..(K,N)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..K,N201909

main68960-F4062iNGX10..(E,G)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E,G201909

EUROPE SPEC(EXCEPT EU)&HEADLAMP-PROJECTOR

main68960-F4020iNGX10,50..LHD..(E,G,N)..EUR201610-201804

SERBIA SPEC&COLD AREA SPEC&HEADLAMP-LED,PRINT COLOR = BLUE

main68960-F4021iNGX10,50..LHD..(E,G,N)..EUR201804-201805

GUADELOUPE SPEC&COLD AREA SPEC&HEADLAMP-LED,PRINT COLOR = RED

main68960-F4060iNGX10,50..LHD..(E,G,N)..EUR201610-201804

GUADELOUPE SPEC&HEADLAMP-LED,PRINT COLOR = BLUE

69321COVER, BACK DOOR LOCK

main69321-F4010iNGX10,50,ZGX10,ZYX10201610-201909

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-F4010iNGX10,50,ZGX10,ZYX10201610-201909

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-F4010iNGX10,50,ZGX10,ZYX10201610-201909

9010506184

main90105-06184

90105W0035

main90105-W0035

9011906904

main90119-06904

90119W0304

main90119-W0304

90148W0004

main90148-W0004

9018208009

main90182-08009

9155110816

main91551-10816

19 parts on this diagram · 1 diagram in section
