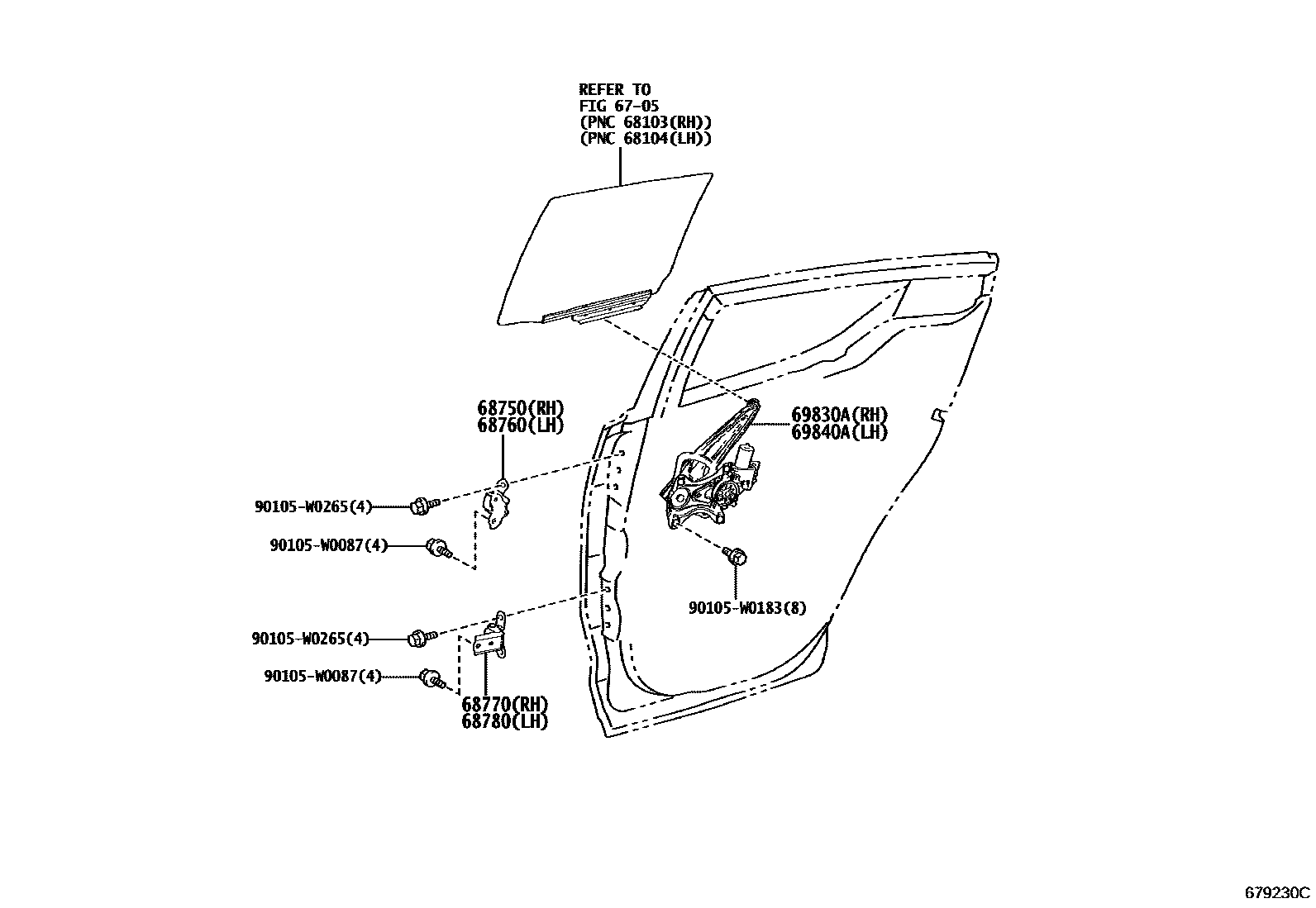

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D061iNGX10,50,ZGX10,ZYX10201610-201809

sub68750-0H010

main68750-0H010iNGX10,50,ZGX10,ZYX10201810-202112

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D061iNGX10,50,ZGX10,ZYX10201610-201809

sub68760-0H010

main68760-0H010iNGX10,50,ZGX10,ZYX10201810-202112

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D071iNGX10,50,ZGX10,ZYX10201610-201809

sub68770-0H010

main68770-0H010iNGX10,50,ZGX10,ZYX10201810-202112

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D071iNGX10,50,ZGX10,ZYX10201610-201809

sub68780-0H010

main68780-0H010iNGX10,50,ZGX10,ZYX10201810-202112

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-F4010iNGX10,50,ZGX10,ZYX10201610-202112

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-F4010iNGX10,50,ZGX10,ZYX10201610-202112

90105W0087

main90105-W0087

90105W0183

main90105-W0183

90105W0265

main90105-W0265

10 parts on this diagram · 1 diagram in section
