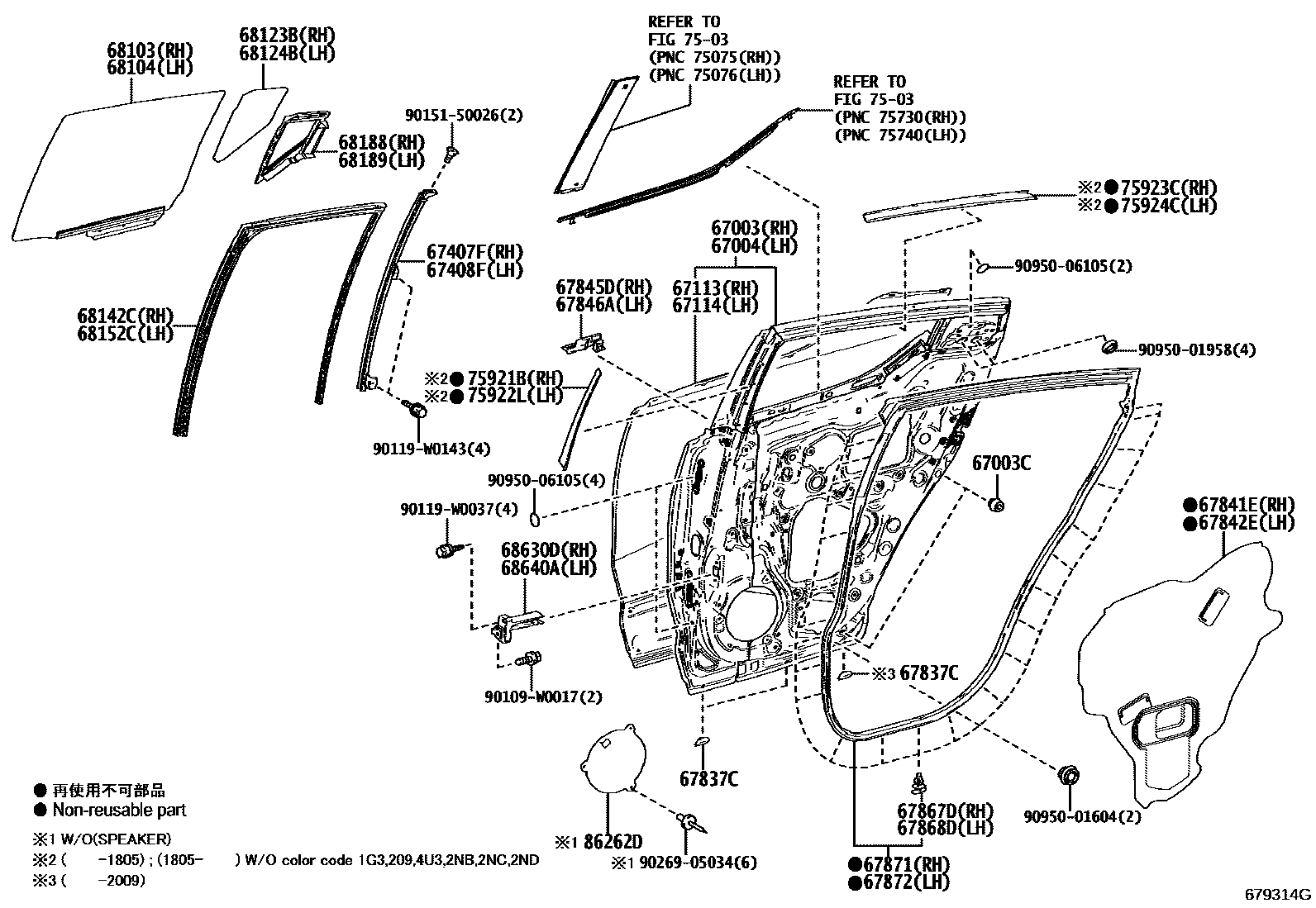

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-F4010iNGX10..RUS201610-202112

67003CCUSHION, REAR DOOR PANEL

main90541-09124iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥100201610-202112

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-F4010iNGX10..RUS201610-202112

67113PANEL, REAR DOOR, OUTER RH

main67113-F4010iNGX10..RUS201610-202112

67114PANEL, REAR DOOR, OUTER LH

main67114-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-10080iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥2,420201610-202112

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-10080iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥2,420201610-202112

67837CSEAL, REAR DOOR DUST PROOF

main67837-F4020iNGX10,50,ZGX10,ZYX10¥80201610-202112

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-F4010iNGX10,50,ZGX10,ZYX10¥880201610-202112

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥880201610-202112

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-F4010iNGX10,50,ZGX10,ZYX10201610-202112

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNGX10,50,ZGX10,ZYX10¥100201610-202112

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNGX10,50,ZGX10,ZYX10¥100201610-202112

67871WEATHERSTRIP, REAR DOOR, RH

main67871-F4010iNGX10,50,ZGX10,ZYX10201610-202112

67872WEATHERSTRIP, REAR DOOR, LH

main67872-F4010iNGX10,50,ZGX10,ZYX10201610-202112

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-F4010iZYX10..LHD..(E,G)201909

HONG KONG, MACAU SPEC

main68103-F4010iZGX10;NGX10,50,ZYX10..D,N;NGX10,50..(E,G)..RUS201610-202112

main68103-F4010iZGX10;NGX50..K,N;NGX50..(E,G)..RUS;MAXH10,NGX10,ZYX1#..(K,N)..EUR201909

PERU SPEC

main68103-F4020iNGX10,50,ZYX10..(E,G)..EUR201610-201909

REAR SIDE GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-F4010iZGX10;NGX10,50,ZYX10..D,N;NGX10,50..(E,G)..RUS201610-202112

main68104-F4010iZYX10..RHD..G201909

PERU SPEC

main68104-F4010iZYX10..RHD..G201909

HONG KONG, MACAU SPEC

main68104-F4020iZGX10..E,G,K;MAXH10,NGX10,50,ZYX1#..K..EUR201610-201909

REAR SIDE GLASS-PRIVACY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-F4010iZYX10..RHD..G201909

PERU SPEC

main68123-F4010iZYX10..RHD..G201909

HONG KONG, MACAU SPEC

main68123-F4010iZGX10;NGX10,50,ZYX10..D,N;NGX10,50..(E,G)..RUS201610-202112

main68123-F4020iZGX10..E,G,K;MAXH10,NGX10,50,ZYX1#..K..EUR201610-201909

REAR SIDE GLASS-PRIVACY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-F4010iZYX10..RHD..G201909

PERU SPEC

main68124-F4010iZGX10;NGX10,50,ZYX10..D,N;NGX10,50..(E,G)..RUS201610-202112

main68124-F4010iZGX10;NGX50..K,N;NGX50..(E,G)..RUS;MAXH10,NGX10,ZYX1#..(K,N)..EUR201909

HONG KONG, MACAU SPEC

main68124-F4020iNGX10,50,ZYX10..(E,G)..EUR201610-201909

REAR SIDE GLASS-PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-F4010iNGX10,50,ZGX10,ZYX10201610-202112

68152CRUN, REAR DOOR GLASS, LH

main68152-F4010iNGX10,50,ZGX10,ZYX10201610-202112

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥1,260201610-202204

main68188-F4030iMAXH10,NGX10,50,ZGX10,ZYX1#..CVT202205

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-F4010iNGX10,50,ZGX10,ZYX10¥1,260201610-202204

main68189-F4030iMAXH10,NGX10,50,ZGX10,ZYX1#..CVT202205

68630DCHECK ASSY, REAR DOOR, RH

main68630-F4010iNGX10,50,ZGX10,ZYX10201610-202112

68640ACHECK ASSY, REAR DOOR, LH

main68640-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

7503

75921BTAPE, BLACK OUT, NO.1 RH

main75977-F4010iNGX10,50,ZGX10,ZYX10201805-202112

0 OR 1PIECE,REF.ILL.

main75977-F4010iNGX10,50,ZGX10,ZYX10201610-201805

75922LTAPE, BLACK OUT, NO.1 LH

main75978-F4010iNGX10,50,ZGX10,ZYX10201610-201805

main75978-F4010iNGX10,50,ZGX10,ZYX10201805-202112

0 OR 1PIECE,REF.ILL.

75923CTAPE, BLACK OUT, NO.2 RH

main75987-F4010iNGX10,50,ZGX10,ZYX10201805-202112

0 OR 1PIECE,REF.ILL.

main75987-F4010iNGX10,50,ZGX10,ZYX10201610-201805

75924CTAPE, BLACK OUT, NO.2 LH

main75988-F4010iNGX10,50,ZGX10,ZYX10201610-201805

main75988-F4010iNGX10,50,ZGX10,ZYX10201805-202112

0 OR 1PIECE,REF.ILL.

86262DCOVER, REAR DOOR SPEAKER

main86262-50010iZYX10..N;NGX10..6F..N..EUR¥2,410201610-201909

AUDIO-RADIO LESS & 2SPEAKER

90109W0017

main90109-W0017¥60

90119W0037

main90119-W0037¥60

90119W0143

main90119-W0143

9015150026

main90151-50026¥60

9026905034

main90269-05034¥140

9095001604

main90950-01604¥110

9095001958

main90950-01958¥120

9095006105

main90950-06105¥110

40 parts on this diagram · 2 diagrams in section
