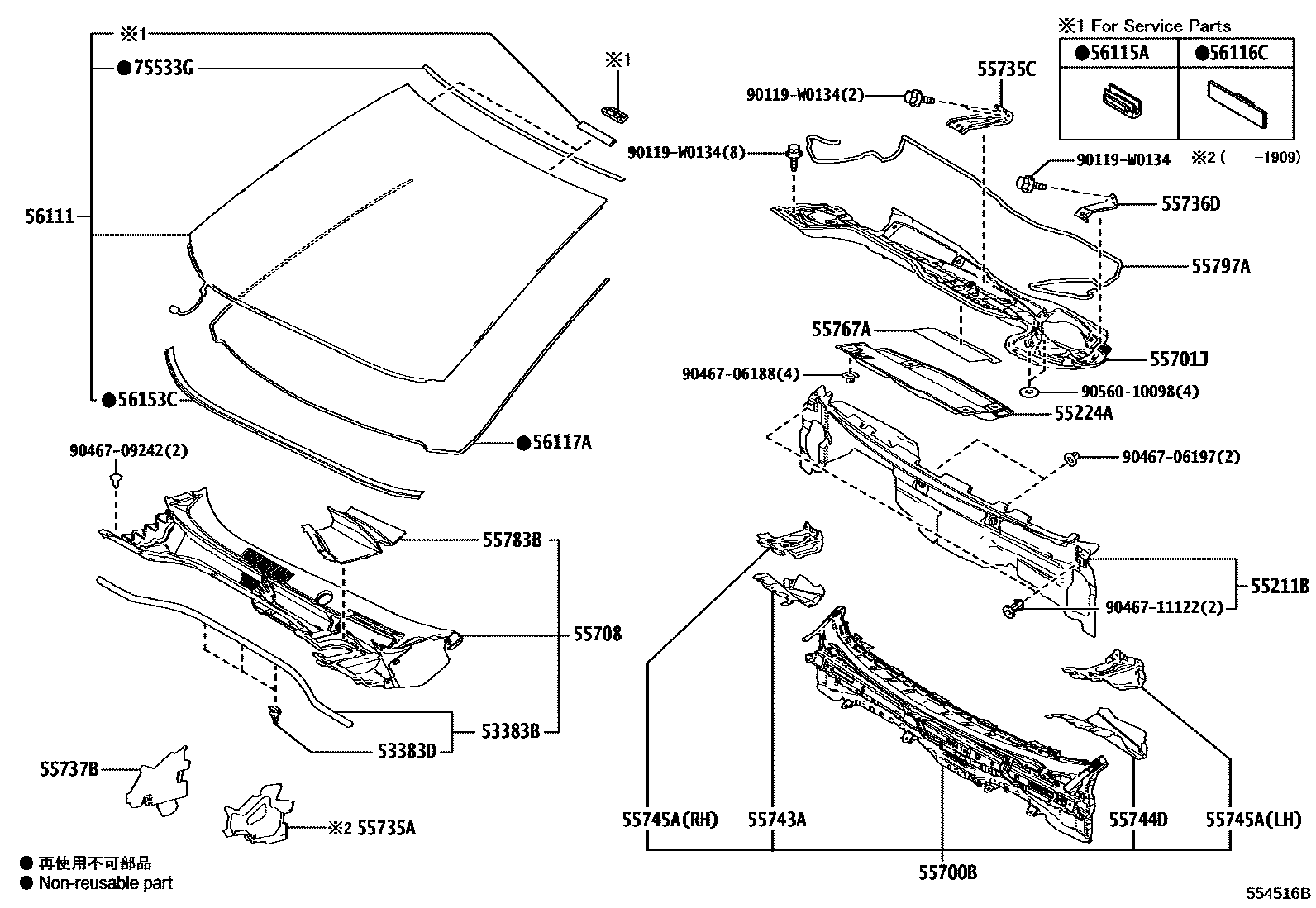

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-F4010iNGX10,50,ZGX10,ZYX10201610-201909

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-F4010×3iNGX10..RUS201909-202112

55211BSILENCER, FRONT PANEL

main55211-F4010iZYX10..LHD..N;NGX10..LHD..6F..N..EUR201610-201909

LIGHT GRADE

main55211-F4020iNGX10,50,ZYX10..RHD201610-201909

LIGHT GRADE

main55211-F4060iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55211-F4070iMAXH10,NGX10,ZYX1#..RHD201909

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55224-F4020iMAXH10,NGX10,ZYX1#..RHD201909

55700BCOWL ASSY

main55700-F4010iNGX10..RUS201909-202112

main55700-F4020iMAXH10,NGX10,ZYX1#..RHD201909

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-F4010iNGX10..RUS201909-202112

main55701-F4020iNGX10,50,ZYX10..RHD201610-201909

main55701-F4021iMAXH10,NGX10,ZYX1#..RHD201909

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-F4011iMAXH10,NGX10,50,ZYX1#..LHD..EUR201909

main55708-F4020supersedes 55708-F4010iNGX10,50,ZGX10..RUS201610-201909

SUB COLD AREA SPEC

main55708-F4021iNGX10..RUS201909-202112

main55708-F4030iNGX10,50,ZYX10..RHD201610-201909

main55708-F4031iMAXH10,NGX10,ZYX1#..RHD201909

55735APLATE, WATER GUARD, LH

main55734-F4010iNGX10,50,ZGX10,ZYX10201610-201909

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55736-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55736-F4020iMAXH10,NGX10,ZYX1#..RHD201909

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-F4010iNGX10,50,ZYX10..RHD201610-201909

main55736-F4020iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55737-F4020iMAXH10,NGX10,ZYX1#..RHD201909

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-F4010iNGX10..RUS201909-202112

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-F4010iNGX10..RUS201909-202112

55745AREINFORCEMENT, COWL TOP, INNER

main55745-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

RH

main55746-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

LH

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-F4010iNGX10..RUS201909-202112

main55767-F4020iMAXH10,NGX10,ZYX1#..RHD201909

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55783-F4020iMAXH10,NGX10,ZYX1#..RHD201909

55797ASEAL, COWL WATER EXTRACT

main55797-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

56111GLASS, WINDSHIELD

main56101-F4010supersedes 56101-F4050iNGX10..D..RUS201610-201909

EUROPE SPEC(EXCEPT EU)

main56101-F4130iZYX10..RHD..N201909

main56101-F4140iZYX10..RHD..G201909

main56101-F4160iNGX10..RHD..D201610-201909

main56101-F4170supersedes 56101-F4160iMAXH10,NGX10,ZYX11..RHD..(E,G,K)201909-202010

WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

main56101-F4210supersedes 56101-F4060iNGX50,ZGX10..N202201

main56101-F4580iMAXH10,NGX10,50,ZYX11..LHD..(E,G,K)..EUR202010

WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

main56101-F4590supersedes 56101-F4550iMAXH10,ZYX11..RHD..(E,G,K)202010

WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

main56101-F4030iNGX10,50..LHD..(E,G,N)..EUR201610-201705

MACEDONIA SPEC&COLD AREA SPEC&AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4031iNGX10,50..LHD..(E,G,N)..EUR201706-201805

MACEDONIA SPEC&COLD AREA SPEC&AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4070supersedes 56101-F4060iNGX10,50,ZYX10..LHD..(E,G,N)..EUR201610-201705

AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4071supersedes 56101-F4060iNGX10,50,ZYX10..LHD..(E,G,N)..EUR201706-201909

AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4080iNGX10,50..LHD..(E,G,N)..EUR201610-201705

SERBIA SPEC&AUDIO-*DA & 6SPEAKER & DAB & USB

main56101-F4081iNGX10,50,ZYX10..LHD..(E,G,N)..EUR201706-201710

TURKEY SPEC&AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4090supersedes 56101-F4060iMAXH10,NGX10,50,ZYX1#..LHD..(E,G,K)..EUR201909-202010

COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

main56101-F4100supersedes 56101-F4060iNGX10,50,ZYX10..LHD..(E,G,N)..EUR201610-201705

COLD AREA SPEC&AUDIO-*DA & 6SPEAKER & DAB & USB

main56101-F4101supersedes 56101-F4060iNGX10,50,ZYX10..LHD..(E,G,N)..EUR201706-201909

COLD AREA SPEC&AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4190supersedes 56101-F4170iNGX10,50,ZYX10..RHD..(E,G,N)201610-201705

AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4191supersedes 56101-F4170iNGX10,50,ZYX10..RHD..(E,G,N)201706-201909

AUDIO-*DA & 9SPEAKER & DAB & USB

main56101-F4340supersedes 56101-F4050iMAXH10,NGX10,50,ZYX1#..LHD..N..EUR201909-202010

COLD AREA SPEC

main56101-F4570supersedes 56101-F4540iMAXH10,NGX10,ZYX11..LHD..N..EUR202010

COLD AREA SPEC

main56101-F4600supersedes 56101-F4540iMAXH10,NGX10,ZYX11..LHD..(E,G,K)..EUR202010

COLD AREA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNGX10,50,ZGX10,ZYX10201610-201909

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010iNGX10..RUS201909-202112

*D,L=2979

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-10010iNGX10,50,ZGX10,ZYX10..LHD201610-201909

main56153-10020iNGX10,50,ZYX10..RHD201610-201909

main56153-F4060iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..CVT202103

main56153-F4070iMAXH10,ZYX1#..RHD202103

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-F4010iNGX10,50,ZGX10,ZYX10201610-201909

90119W0134

main90119-W0134

9046706188

main90467-06188

9046706197

main90467-06197

9046709242

main90467-09242

9046711122

main90467-11122

9056010098

main90560-10098

29 parts on this diagram · 2 diagrams in section
