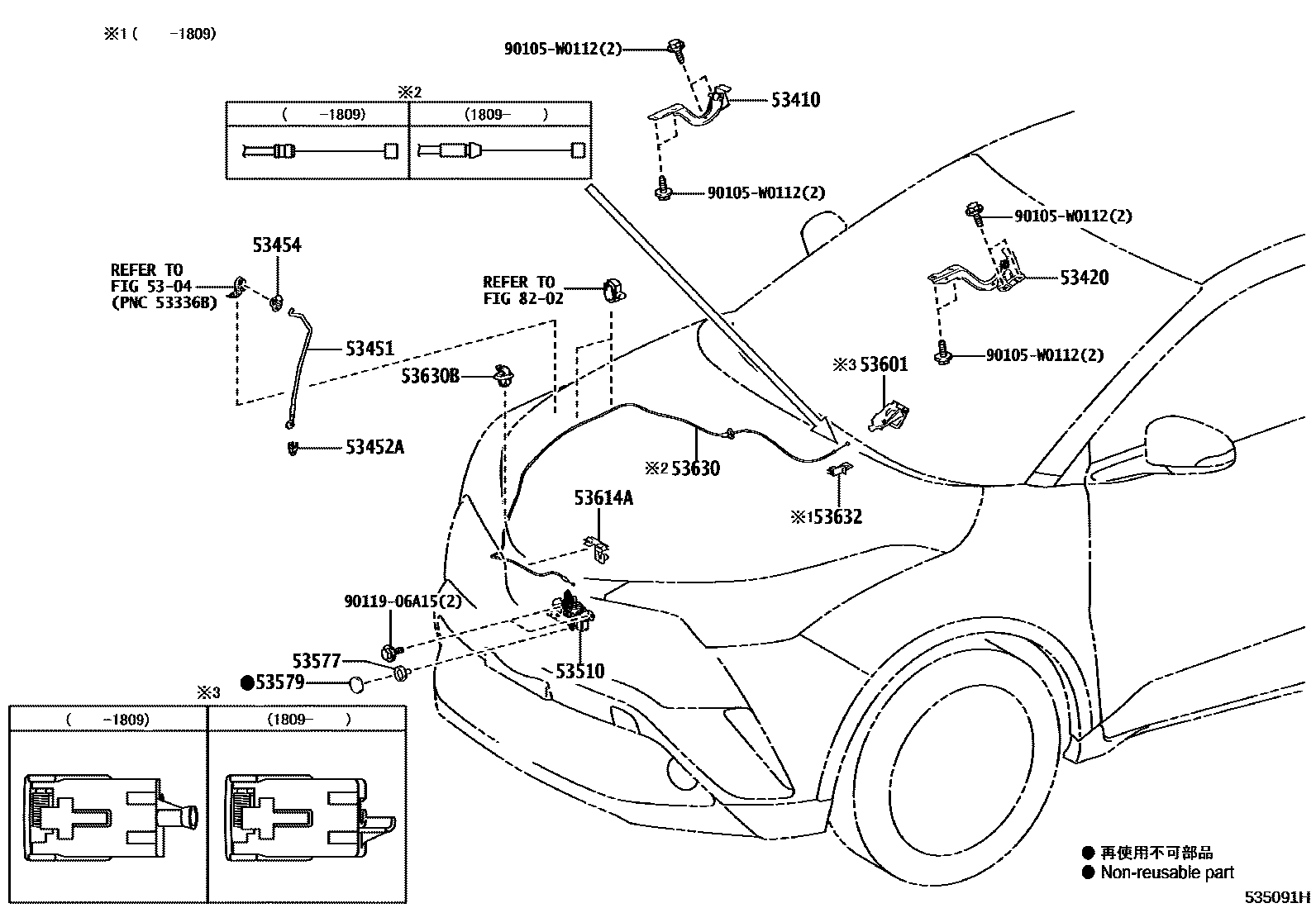

HOOD LOCK & HINGE

5304

53410HINGE ASSY, HOOD, RH

main53410-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

53420HINGE ASSY, HOOD, LH

main53420-F4010iNGX10,50,ZGX10,ZYX10201610-202112

53451ROD, HOOD SUPPORT

main53440-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

53452AHOLDER, HOOD STAY

main53452-F4012iNGX10,50,ZGX10,ZYX10201610-202112

53454CLIP, HOOD SUPPORT ROD

main53454-12030iNGX10,50,ZGX10,ZYX10201610-202112

53510LOCK ASSY, HOOD

main53510-F4020iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201610-202112

main53510-F4030iMAXH10,NGX10,ZYX1#..RHD201610-201909

53577BOLT, HOOD LOCK

main53577-33010iNGX10..RUS201610-202112

53579CAP, HOOD LOCK NUT

main53579-50010iNGX10..RUS201610-202112

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C1iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub53601-05030

main53601-05030-C2iNGX10,50,ZGX10,ZYX10201805-201809

BLACK,TRIM2#

sub53601-05030

main53601-F4020-C0iZYX10..RHD..G201909-202112

BLACK,TRIM2#,4#,8#

sub53601-F4020

main53601-F4020-C0iZYX10..RHD..G201809-202112

BLACK,TRIM2#

sub53601-F4020

main53601-F4020-C0iNGX10..(E,G,K)..EUR;ZYX10..LHD..(E,G,K);MAXH10,NGX50,ZGX10,ZYX11..E,G,K201909

BLACK,TRIM2#,8#

sub53601-F4020

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-F4010iNGX10,50,ZGX10,ZYX10201610-202112

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-F4010iNGX10,50,ZYX10..RHD201610-201809

main53630-F4011iNGX10,50,ZYX10..RHD201809-201909

main53630-F4020iNGX10,50,ZGX10,ZYX10..LHD201610-201809

main53630-F4021iNGX10..RUS201809-202112

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNGX10,50,ZGX10,ZYX10201610-202112

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-10010iNGX10,50,ZGX10,ZYX10201610-201809

8202

90105W0112

main90105-W0112

9011906A15

main90119-06A15

17 parts on this diagram · 1 diagram in section
